2-18. Fan

Preparation

1. Remove the bottom panel assembly. (Refer to “2-5. Bottom Panel Assembly”)

2. Remove the inside panel assembly. (Refer to “2-6-1. Inside Panel Assembly”)

3. Remove the outside panel assembly. (Refer to “2-7-1. Outside Panel Assembly”)

4. Remove the rear panel assembly. (Refer to “2-8. Rear Panel Assembly”)

5. Remove the handle assembly. (Refer to “2-11-1. Handle Assembly”)

6. Remove the front lens assembly. (Refer to “2-15. Front Lens Assembly”)

Procedure

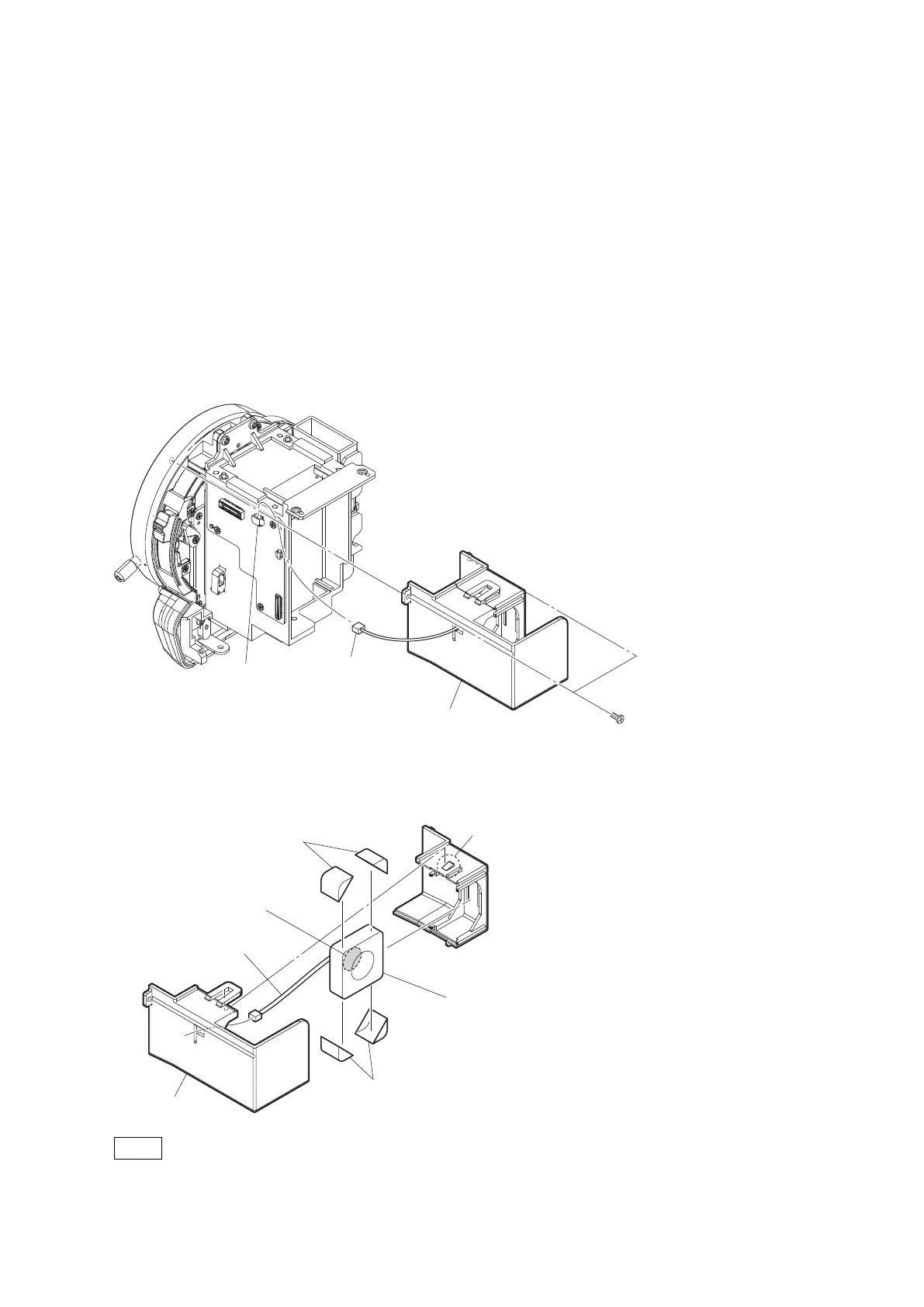

1. Disconnect the harness from the connector on the IF-1244 board.

2. Remove the two screws to detach the fan assembly.

P2 x 4

Fan assembly

Connector

(IF-1244 board)

Harness

3. Release the claw to detach the duct main B.

4. Remove the fan.

5. Remove the four fan holders from the fan.

Duct main B

Claw

Label

Fan

Harness

Fan holders

Note

Install the fan carefully paying attention to the label side and the harness position.

6. Install the removed parts by reversing the steps of removal.

PMW-300

2-52
