2-12. Battery Case Assembly

Preparation

1. Remove the bottom panel assembly. (Refer to “2-5. Bottom Panel Assembly”)

2. Remove the inside panel assembly. (Refer to “2-6-1. Inside Panel Assembly”)

3. Remove the outside panel assembly. (Refer to “2-7-1. Outside Panel Assembly”)

4. Remove the rear panel assembly. (Refer to “2-8. Rear Panel Assembly”)

5. Remove the handle assembly. (Refer to “2-11-1. Handle Assembly”)

6. Remove the SxS slot assembly. (Refer to “2-9-1. SxS Slot Assembly”)

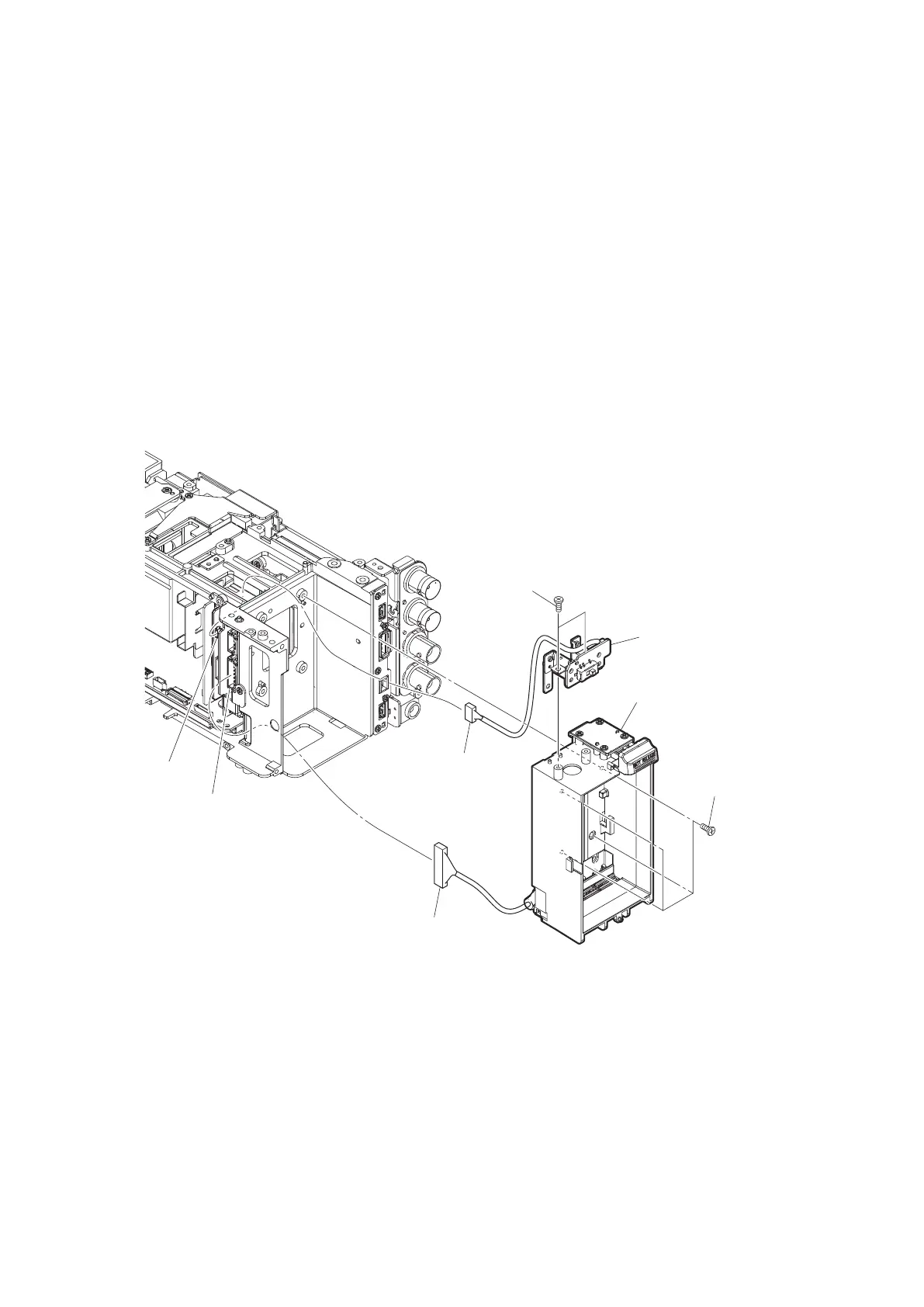

Procedure

1. Disconnect the harness from the connector on the RE-320 board.

2. Disconnect the harness from the connector on the RE-321 board.

3. Remove the four screws (P2 x 5) to detach the battery case assembly.

4. Remove the two screws (TP2 x 5) to detach the PSW board assembly.

Connector

(RE-321 board)

Battery case assembly

PSW board assembly

Connector

(RE-320 board)

Precision

screws

(P2 x 5)

Tapping screws

(TP2 x 5)

Harness

5. Install the removed parts by reversing the steps of removal.

PMW-300

2-41
