2-9-2. SWC-56 Board/EC-78 Board

Preparation

1. Remove the bottom panel assembly. (Refer to “2-5. Bottom Panel Assembly”)

2. Remove the inside panel assembly. (Refer to “2-6-1. Inside Panel Assembly”)

3. Remove the outside panel assembly. (Refer to “2-7-1. Outside Panel Assembly”)

4. Remove the rear panel assembly. (Refer to “2-8. Rear Panel Assembly”)

5. Remove the handle assembly. (Refer to “2-11-1. Handle Assembly”)

6. Remove the SxS slot assembly. (Refer to “2-9-1. SxS Slot Assembly”)

Procedure

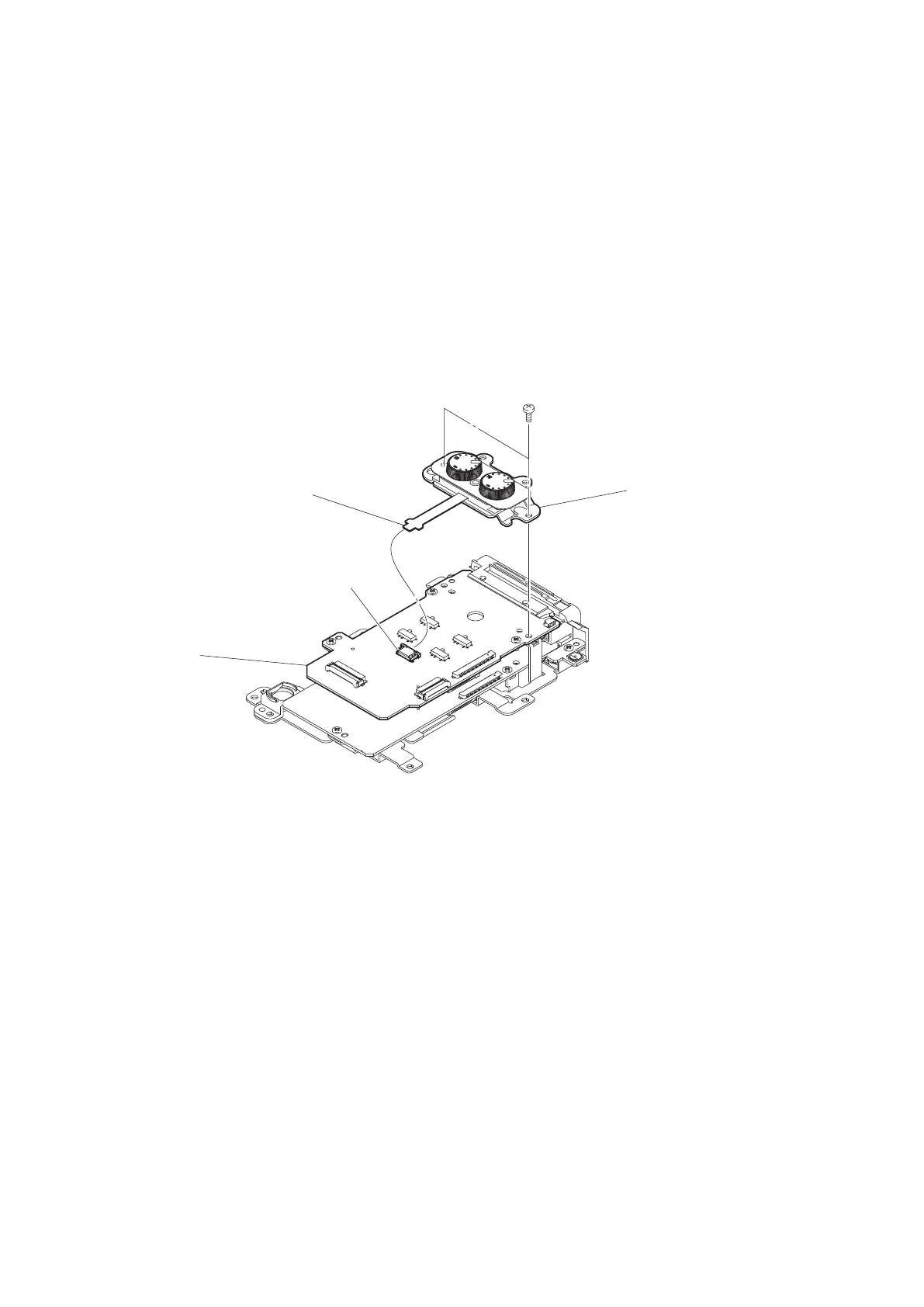

1. Disconnect the flexible board from the connector (CN103) on the SWC-56 board.

2. Remove the two screws to detach the AU volume assembly.

P2 x 4

AU volume assembly

Flexible board

SWC-56 board

CN103

3. Disconnect the harness from the connector (CN102) on the SWC-56 board.

PMW-300

2-29
