ENGINE 3-57

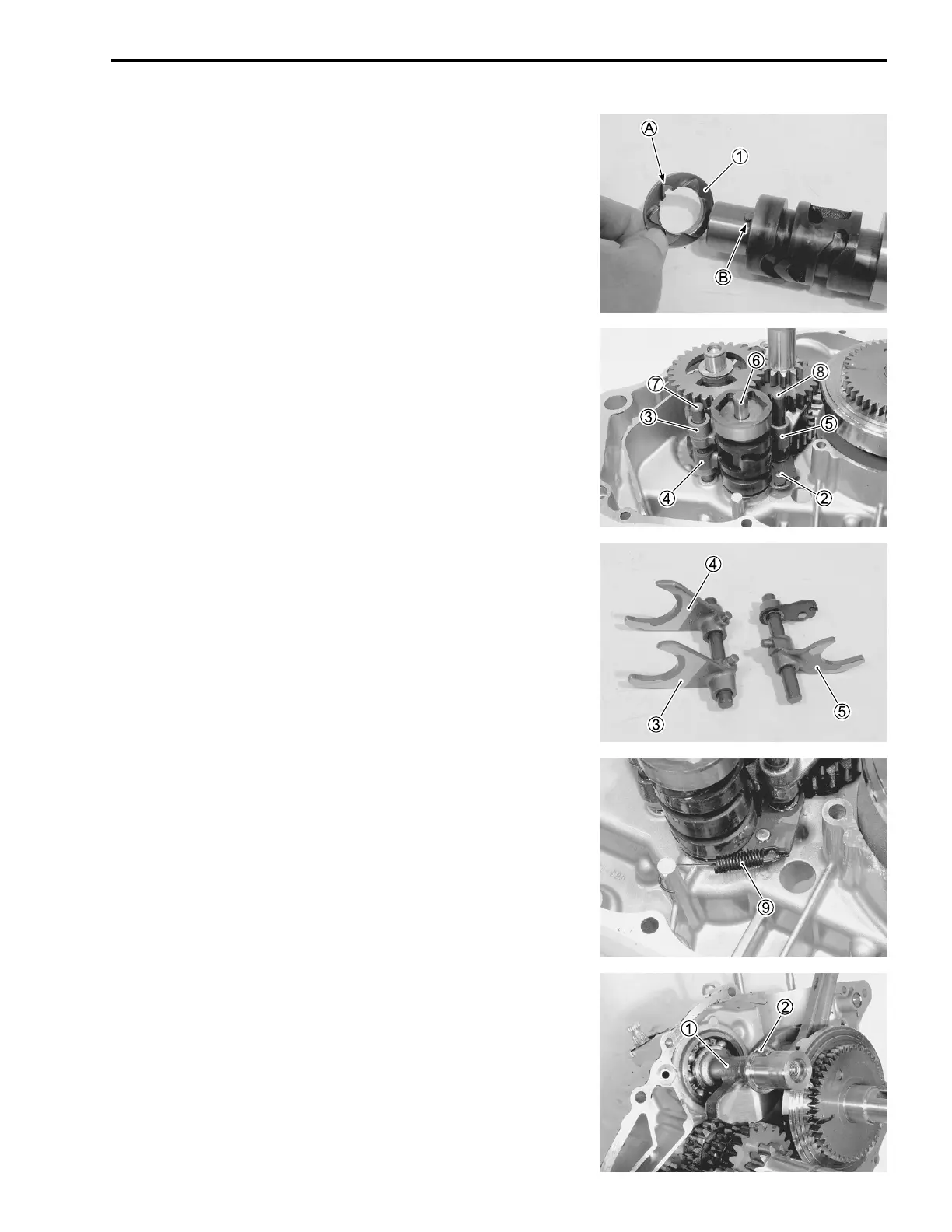

• Align the pin groove A of gearshift cam stopper plate 1 with
the pin B on gearshift cam.
• Install the gearshift cam stopper 2.
• Install the gearshift forks and gearshift cam 6.
3: Gearshift fork No.1
4: Gearshift fork No.2
5: Gearshift fork No.3
• Install the gearshift fork shafts (7, 8).
NOTE:
Three kinds of gearshift forks (3, 4, 5) are used. They resem-
ble each other very closely in external appearance and configu-
ration. Carefully examine the photograph for correct installing
positions and directions.
• Install the gearshift cam stopper spring 9 as shown.
CRANK BALANCER
• Install the crank balancer shaft 1 and key 2.

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
