CHASSIS 8-21
HANDLEBARS
CONSTRUCTION
REMOVAL
HANDLEBAR LEFT SIDE PARTS
• Remove the rear view mirror (LH) 1.
• Remove the left handlebar switch box 2.
• Disconnect the clutch lever position switch coupler 3.
• Remove the left handlebar balancer 4.
• Remove the left handlebar grip 5.
• Loosen the clutch lever holder bolt 6.
• Remove the clamp 7.
HANDLEBAR RIGHT SIDE PARTS
• Remove the rear view mirror (RH) 1.
• Remove the right handlebar switch box screws 2.
• Disconnect the brake light switch coupler 3.
• Remove the front brake master cylinder 4.
• Remove the right handle balancer 5.
• Remove the clamp 6.

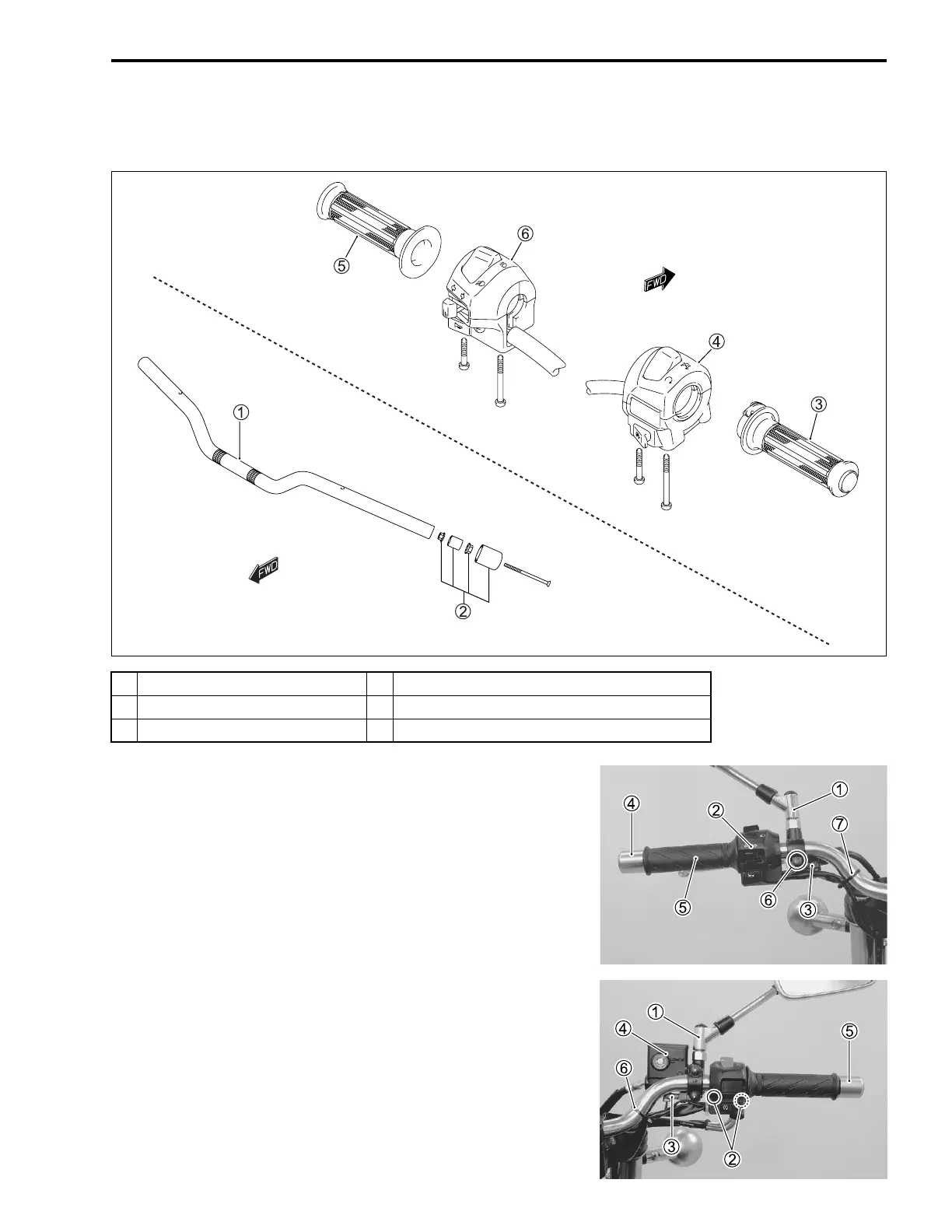

1 Handlebars 4 Right handlebar switch box
2 Handlebar balancer 5 Left handlebar grip
3 Throttle grip 6 Left handlebar switch box
