Suzuki TU250X User Manual

SERVICING INFORMATION 10-15

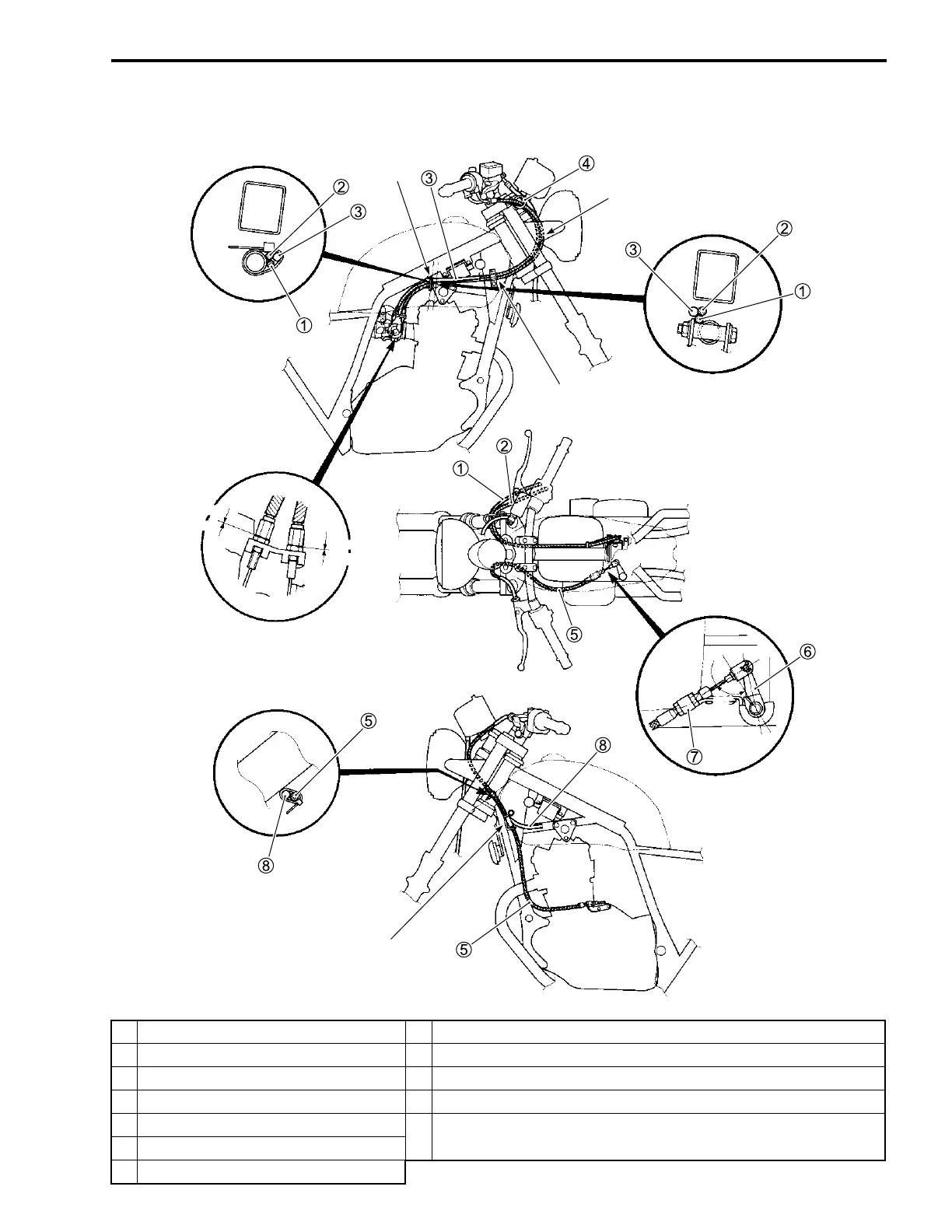

THROTTLE CABLE ROUTING
1 Throttle cable No.1 8 Wiring harness
2 Throttle cable No.2 *1 Pass the throttle cable No.2 over the throttle cable No.1.
3 Starter motor lead wire *2 Pass the throttle cables outside of the brake hose.
4 Cable guide *3 Pass the throttle cable No.1 under the throttle cable No.2.
5 Clutch cable
*4
Set the protector of clutch cable inside of the cable guide.
Pass the clutch cable outside of the wiring harness.
6 Clutch release arm
7 Clutch cable stopper
*1
*2
*3
*4
90˚
0 mm
(0 in)
0 mm
(0 in)

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
