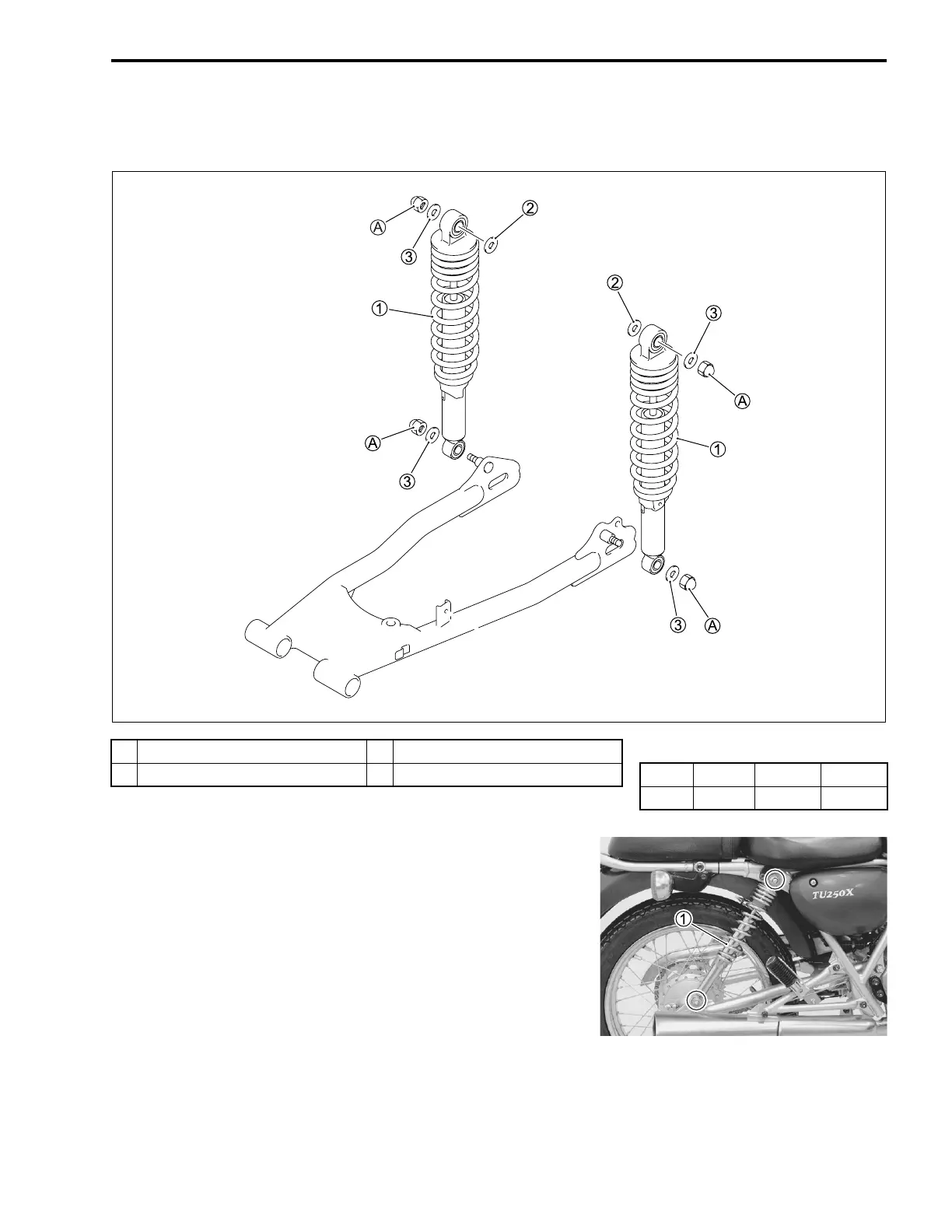

CHASSIS 8-43
REAR SHOCK ABSORBER
CONSTRUCTION
REMOVAL
NOTE:
The left and right rear shock absorbers are installed symmetri-
cally and therefore the removal procedure for one side is the
same as that for the other side.
•
Remove the rear shock absorber
1
.
1
Rear shock absorber
3
W
asher
2
Washer
A
Rear shock absorber nut
ITEM
N·m
kgf-m
lbf-ft
A
29
2.9
21.0
262
264
