3-8 ENGINE
INSTALLATION
Install the engine in the reverse order of engine removal. Pay attention to the following points:
• Fit the swingarm in its position and hold it with the swingarm pivot shaft.
• Mount the engine on the frame.
• Tighten the engine mounting nuts and swingarm pivot nut to the specified torque.
NOTE:
* The engine mounting nuts and swingarm pivot nut are self-locking. Once the nuts have been removed,
they are no longer of any use.
* The engine mounting nuts and swingarm pivot nut are located at the right side of motorcycle.

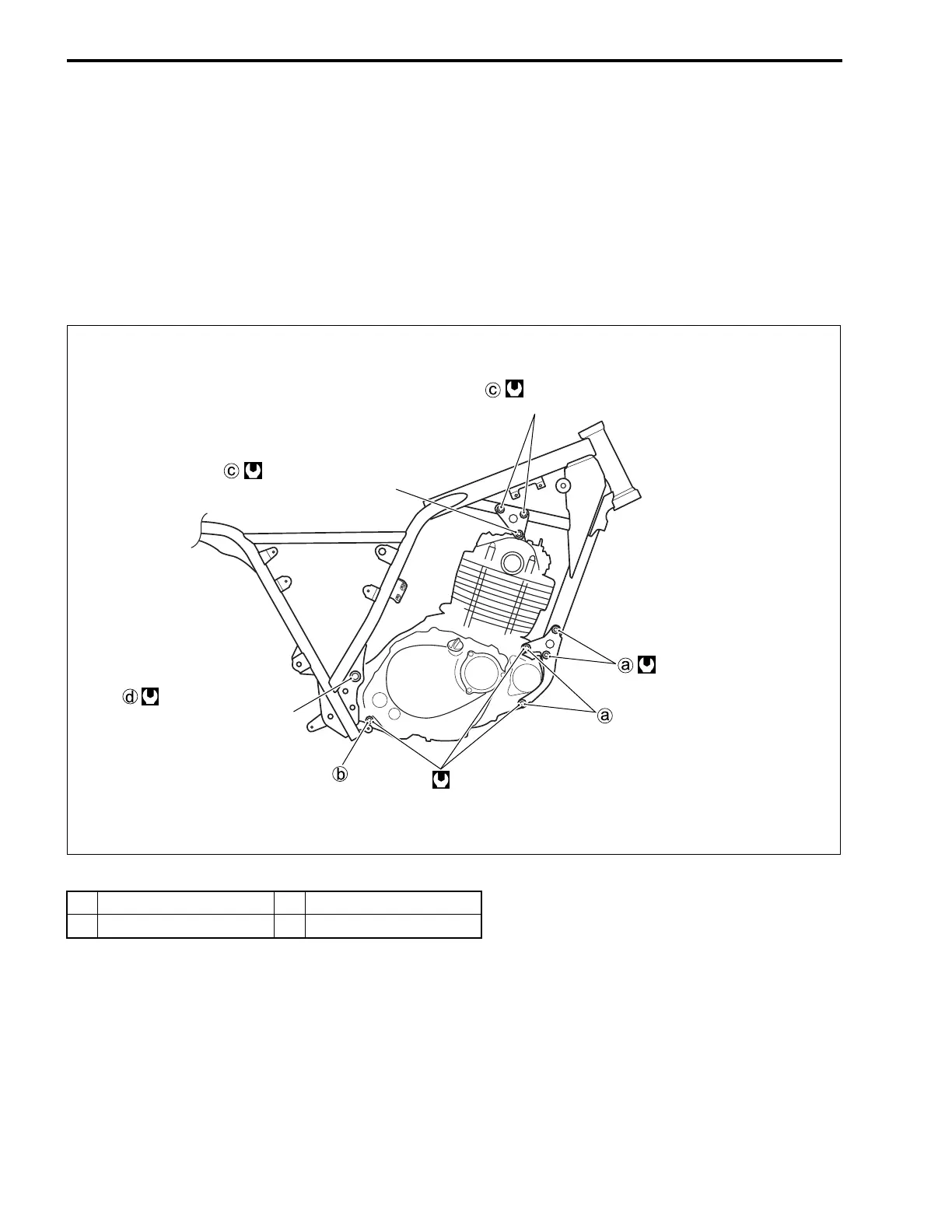

BOLT LENGTH
40 N
.
m
(4.0 kgf-m, 29.0 lbf-ft)
41 N
.
m
(4.1 kgf-m, 29.5 lbf-ft)
41 N
.
m
(4.1 kgf-m, 29.5 lbf-ft)
28 N
.
m
(2.8 kgf-m, 20.0 lbf-ft)
65 N
.
m
(6.5 kgf-m, 47.0 lbf-ft)
a 67 mm (2.6 in) c 50 mm (2.0 in)
b 105 mm (4.1 in) d 246 mm (9.7 in)

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
