ELECTRICAL SYSTEM 9-9
Step 5
1) Measure the generator no-load performance. (9-11)
Is the generator no-load performance OK?
Step 6
1) Inspect the regulator/rectifier. (9-11)
Is the regulator/rectifier OK?
Step 7
1) Inspect wirings.
Is the wirings OK?
Battery overcharges
• Faulty regulator/rectifier
• Faulty battery
• Poor contact of generator lead wire coupler
INSPECTION

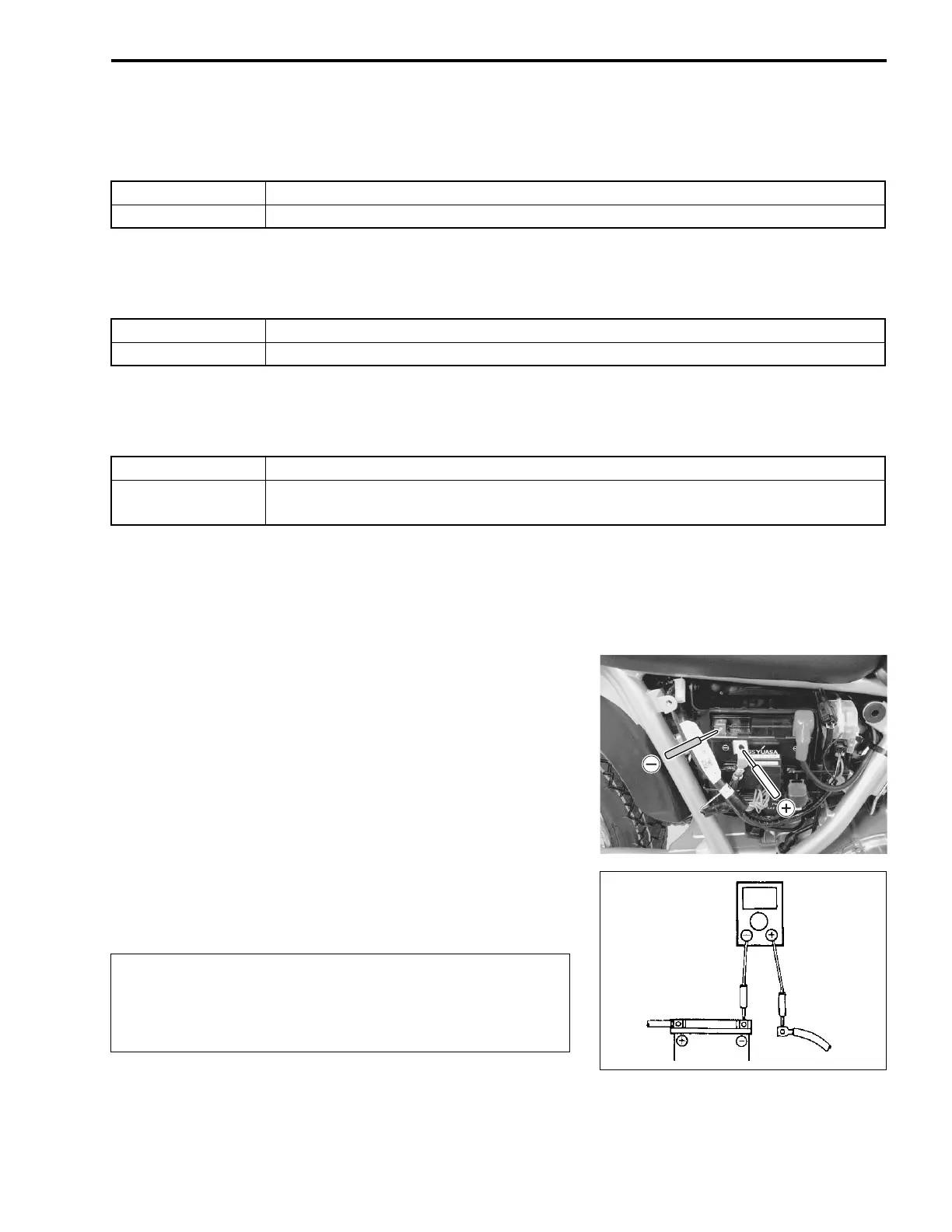

BATTERY CURRENT LEAKAGE
• Remove the right frame cover. (8-3)
• Turn the ignition switch OFF.
• Disconnect the battery - lead wire.
• Measure the current between - battery terminal and the -
battery lead wire using the multi circuit tester. If the reading
exceeds the specified value, leakage is evident.
 Battery current (leak): Under 1 mA
 09900-25008: Multi circuit tester set
 Tester knob indication: Current (, 20 mA)

YES Go to Step 6.
NO Faulty generator
YES Go to Step 7.
NO Faulty regulator/rectifier
YES Faulty battery
NO
• Short circuit of wire harness
• Poor contact of couplers
* In case of a large current leak, turn the tester to high
range first to avoid tester damage.
* Do not turn the ignition switch ON when measuring
current.
A

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
