Suzuki TU250X User Manual

9-18 ELECTRICAL SYSTEM

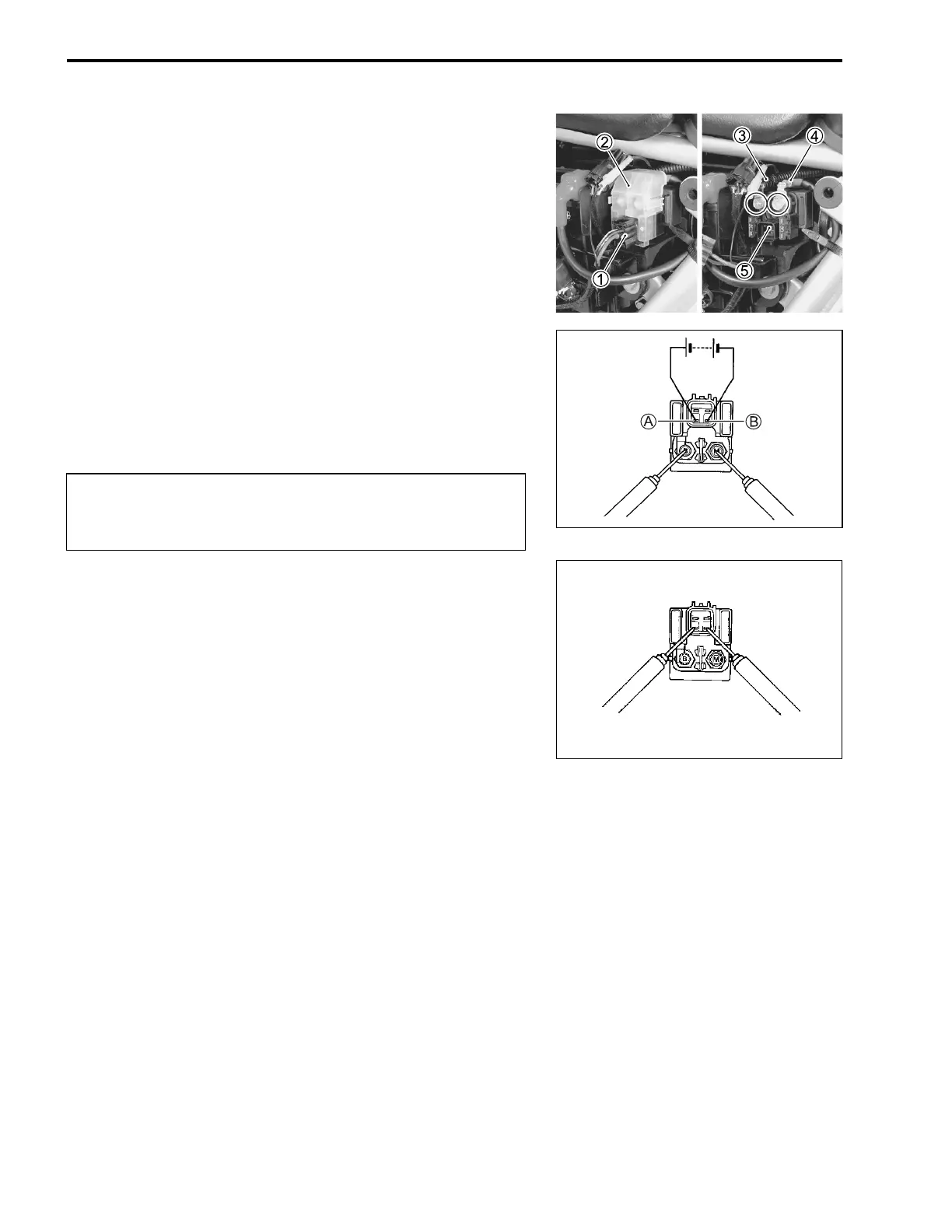

STARTER RELAY INSPECTION
• Remove the right frame cover. (8-3)
• Disconnect the battery - lead wire from the battery.
• Disconnect the starter relay coupler 1 and remove the starter
relay cover 2.
• Disconnect the starter motor lead wire 3 and battery lead
wire 4.
• Remove the starter relay 5.
• Apply 12 V to A and B terminals and check for continuity
between the positive and negative terminals using the multi
circuit tester. If the starter relay clicks and continuity is found,
the relay is OK.
 09900-25008: Multi circuit tester set
 Tester knob indication: Continuity test ()

Measure the relay coil resistance between the terminals using
the multi circuit tester. If the resistance is not within the specified
value, replace the starter relay with a new one.
 Starter relay resistance: 2 – 6 Ω
 Tester knob indication: Resistance (Ω)
Do not apply battery voltage to the starter relay for
more than five seconds, since the relay coil may over-
heat and get damaged.

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
