Suzuki TU250X User Manual

10-12 SERVICING INFORMATION

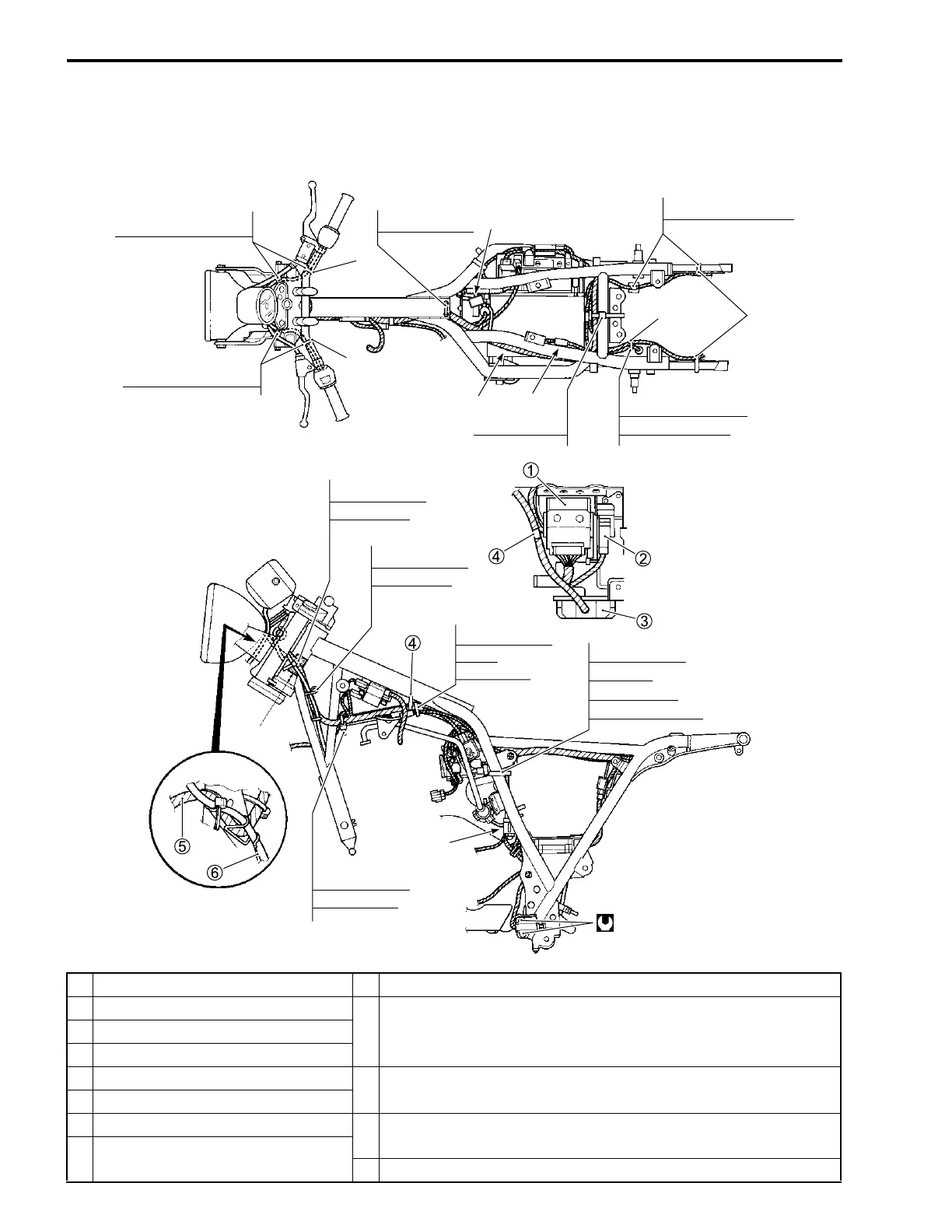

WIRING HARNESS, CABLE AND HOSE ROUTING
WIRING HARNESS ROUTING
1 ECM *3 Pass the wiring harness outside of the air cleaner bracket.
2 Relay (Check or Main)
*4
Set the fuel pump coupler at the right side of IAT sensor.
Do not pinch the fuel pump lead wire coupler between the fuel
tank and frame, when installing the fuel tank.
3 Regulator/Rectifier
4 Taping clamp
5 Wiring harness
*5
Pass the neutral switch lead wire and generator lead wire
inside of the air cleaner bracket.
6 Clutch cable
*1 Cut off the excess end of clamp.
*6
Before clamping the lead wire, draw the protector tube to the
rear turn signal lead wire coupler.
*2
The tip of clamp must face
upward. *7 Pass every wiring harness inside of the relay.
Clamp
Clamp
Clamp
Handlebar switch (RH)
Handlebar switch (LH)
*1
*3
*1
Wiring harness
Clamp
Rear turn signal (RH)
*1, *6
*4
*5
Clamp
Clamp
Rear turn signal (LH)
Rear combination
Wiring harness
Clamp
Wiring harness
Clutch cable
Guide
Wiring harness
Clutch cable
Clamp
Clamp
Wiring harness
STVA
STP sensor
20 mm
(0.8 in)
Clamp
Wiring harness
Starter motor
*7
Wiring harness
Generator
Neutral switch
Side-stand switch
8 N
.
m (0.8 kgf-m, 6.0 lbf-ft)
*2
*6

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
