Suzuki TU250X User Manual

4-50 FI SYSTEM DIAGNOSIS

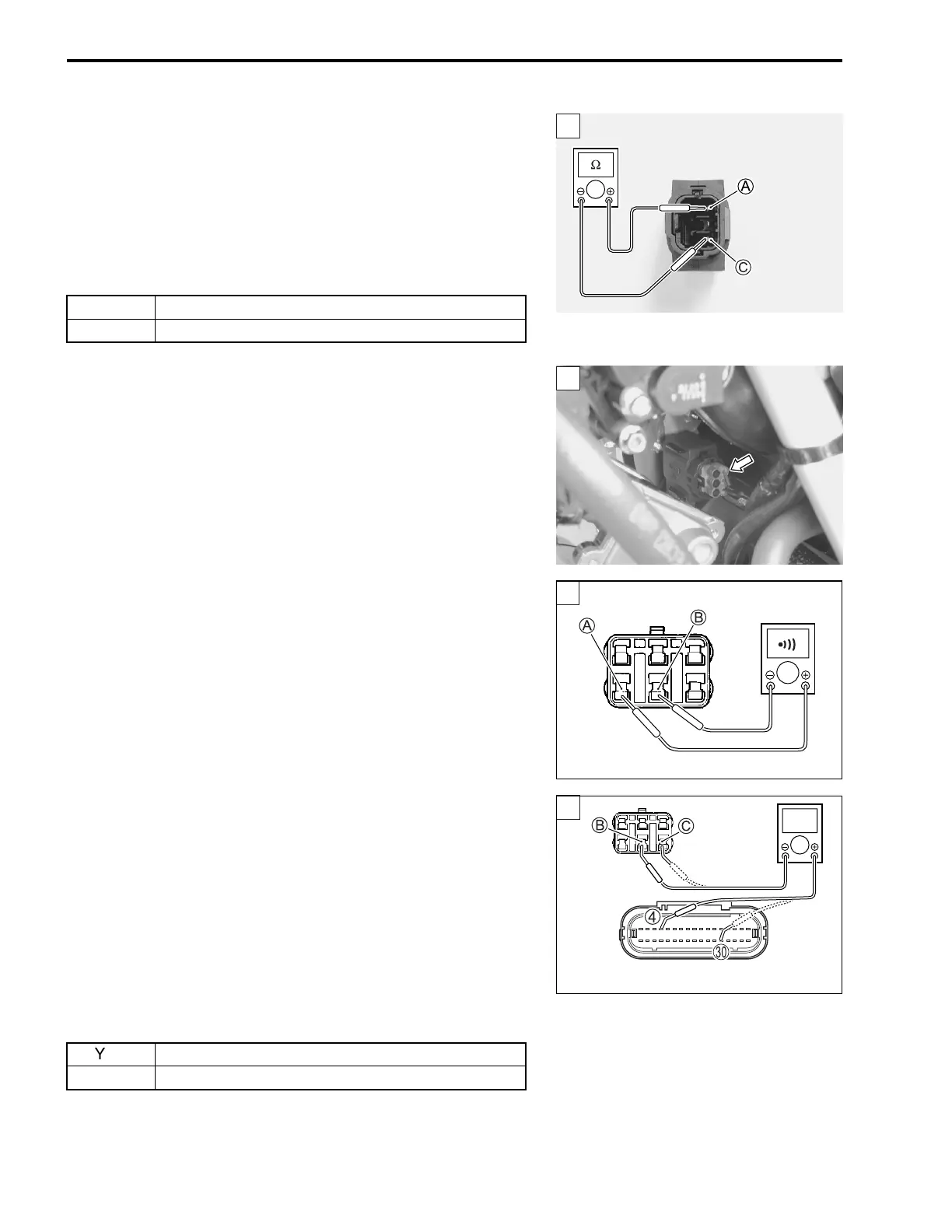

4) Measure the resistance between terminal A and terminal C.
 TO sensor resistance: 16.5 – 22.3 kΩ
(Terminal A – Terminal C)
 09900-25008: Multi circuit tester set
 Tester knob indication: Resistance (Ω)
Is the resistance OK?
Step 1 (When indicating P1651-H:)
1) Turn the ignition switch OFF.
2) Check the TO sensor coupler for loose or poor contacts.
If OK, then check the TO sensor lead wire continuity.
3) Disconnect the TO sensor coupler.
4) Check the continuity between R wire A and Br wire B.
If the sound is not heard from the tester, the circuit condition
is OK.
5) Disconnect the ECM coupler.
6) Check the continuity between Br wire B and terminal 4.
7) Also, check the continuity between B/Br wire C and terminal
T.
 TOS lead wire continuity: Continuity ()
 09900-25008: Multi circuit tester set
09900-25009: Needle-point probe set
 Tester knob indication: Continuity test ()
Is the continuity OK?
YES Go to Step 2.
NO Replace the TO sensor with a new one.
1
1
1
]
YES Go to Step 2.
NO Br wire shorted to VCC, or B/Br wire open.
1
!
ECM coupler (Harness side)

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
