Suzuki TU250X User Manual

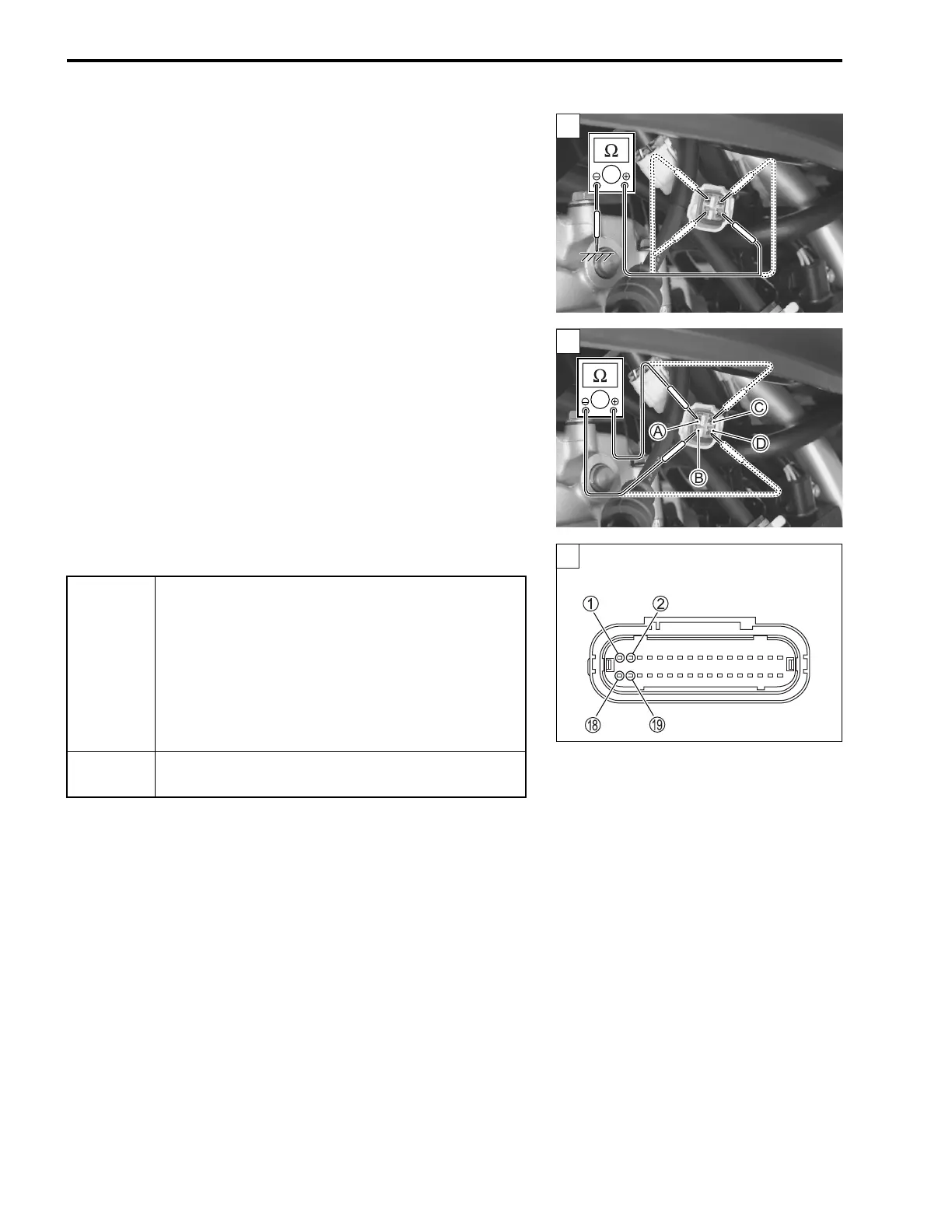

4-54 FI SYSTEM DIAGNOSIS
Step 2
1) Turn the ignition switch OFF.
2) Disconnect the STVA lead wire coupler.
3) Check the continuity between each terminal and ground.
 STVA continuity: ∞ Ω (Infinity)
(Terminal – Ground)
4) If OK, then measure the STVA resistance (between B wire A
and P wire B) and (between G wire C and W/BI wire D).
 STVA resistance: Approx. 6.5 Ω
(
B A – P B)
(
G C – W/BI D)
 09900-25008: Multi circuit tester set
 Tester knob indication: Resistance (Ω)
Is the resistance OK?
2
2
YES
• W/B, W/R, B/R and B wire open or shorted to
ground, or poor
1 , 2 , H and I connection
• If wire and connection are OK, intermittent trou-
ble or faulty ECM.
• Recheck each terminal and wire harness for
open circuit and poor connection.
• Replace the ECM with a known good one, and
inspect it again.
NO
• Replace the throttle body assembly with a new
one.
ECM coupler (Harness side)
2

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
