8-10 CHASSIS

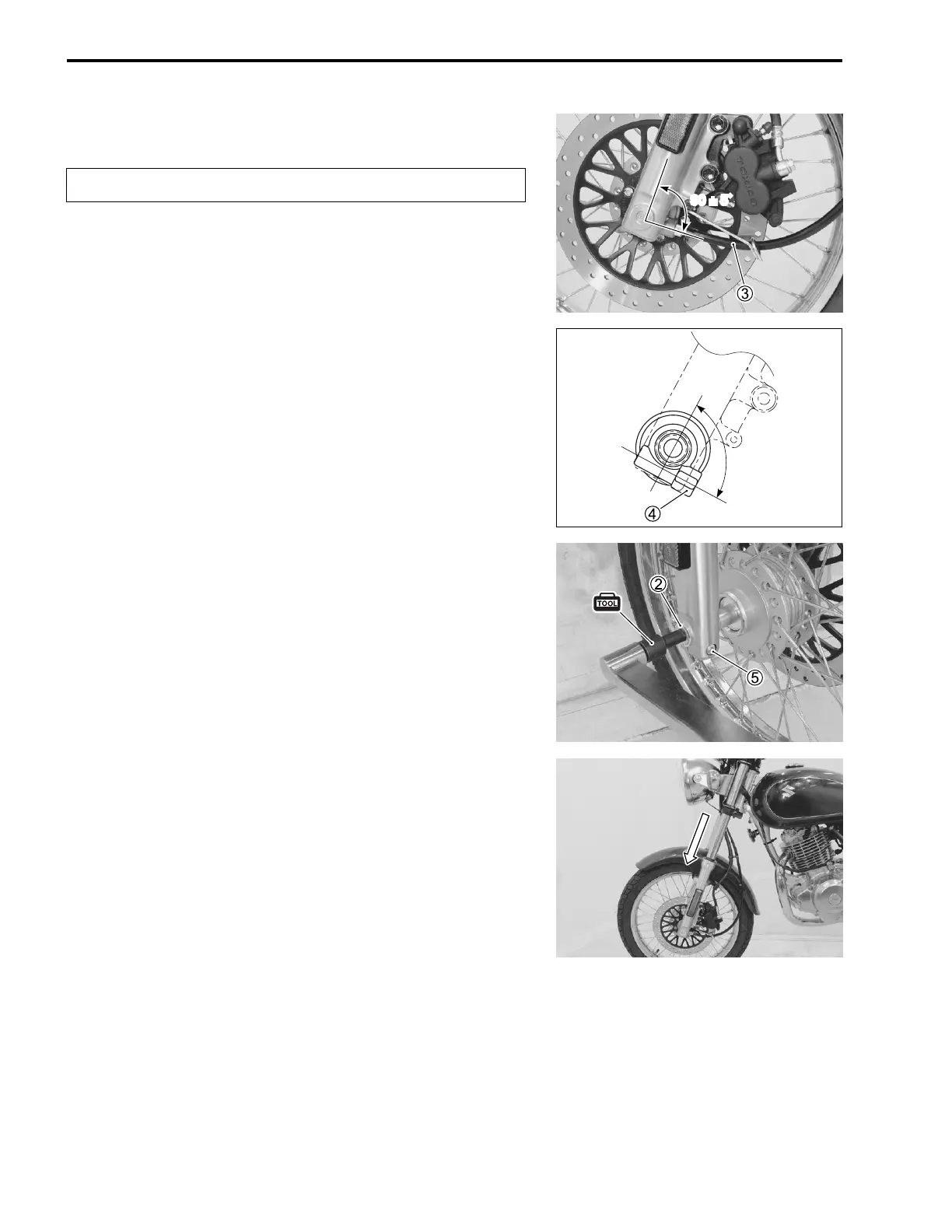

• Connect the speedometer cable 3.

• Set the speedometer gearbox 4 as shown.
• Tighten the front axle 2 to the specified torque.
 09900-18710: Hexagon socket (12 mm)
 Front axle: 65 N·m (6.5 kgf-m, 47.0 lbf-ft)
• Tighten the front axle pinch bolt 5 to the specified torque.
 Front axle pinch bolt: 23 N·m (2.3 kgf-m, 16.5 lbf-ft)
NOTE:
* Before tightening the front axle pinch bolt, move the front fork
up and down four or five times.
* After installing the front wheel, pump the brake lever a few
times to check for proper brake operation.
Tighten the speedometer cable nut firmly.
90 ± 5˚
90 ± 5˚

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
