8-52 CHASSIS

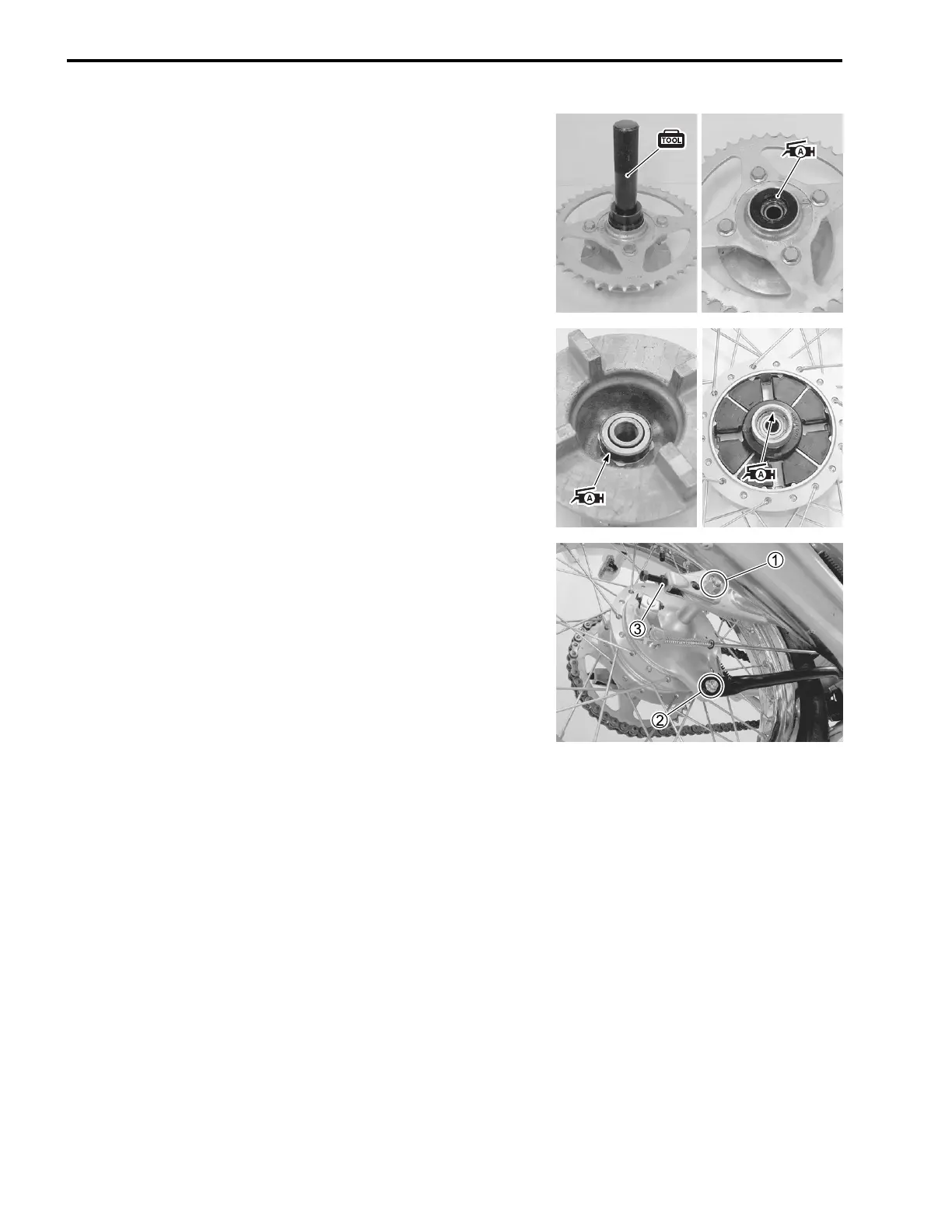

DUST SEAL
• Install a new dust seal with the special tool.
 09913-70210: Bearing installer set (10 – 75)
• Apply grease to the dust seal lip.
 99000-25010: SUZUKI SUPER GREASE “A”
or equivalent
REAR SPROCKET MOUNTING DRUM
• Apply grease to the contacting surface between the sprocket
mounting drum and rear wheel hub.
 99000-25010: SUZUKI SUPER GREASE “A”
or equivalent
REAR WHEEL
• Adjust the drive chain slack after installing the rear wheel.
(2-13)
• Temporary tighten the rear axel nut 1.
• Tighten the rear axle nut 1 and torque link nut (rear) 2 to the
specified torque.
 Rear axle nut: 65 N·m (6.5 kgf-m, 47.0 lbf-ft)
Torque link nut: 16 N·m (1.6 kgf-m, 11.5 lbf-ft)
• Tighten both chain adjuster lock-nuts 3 securely.
• Check the rear brake pedal free travel. (2-17)

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
