Suzuki TU250X User Manual

9-20 ELECTRICAL SYSTEM

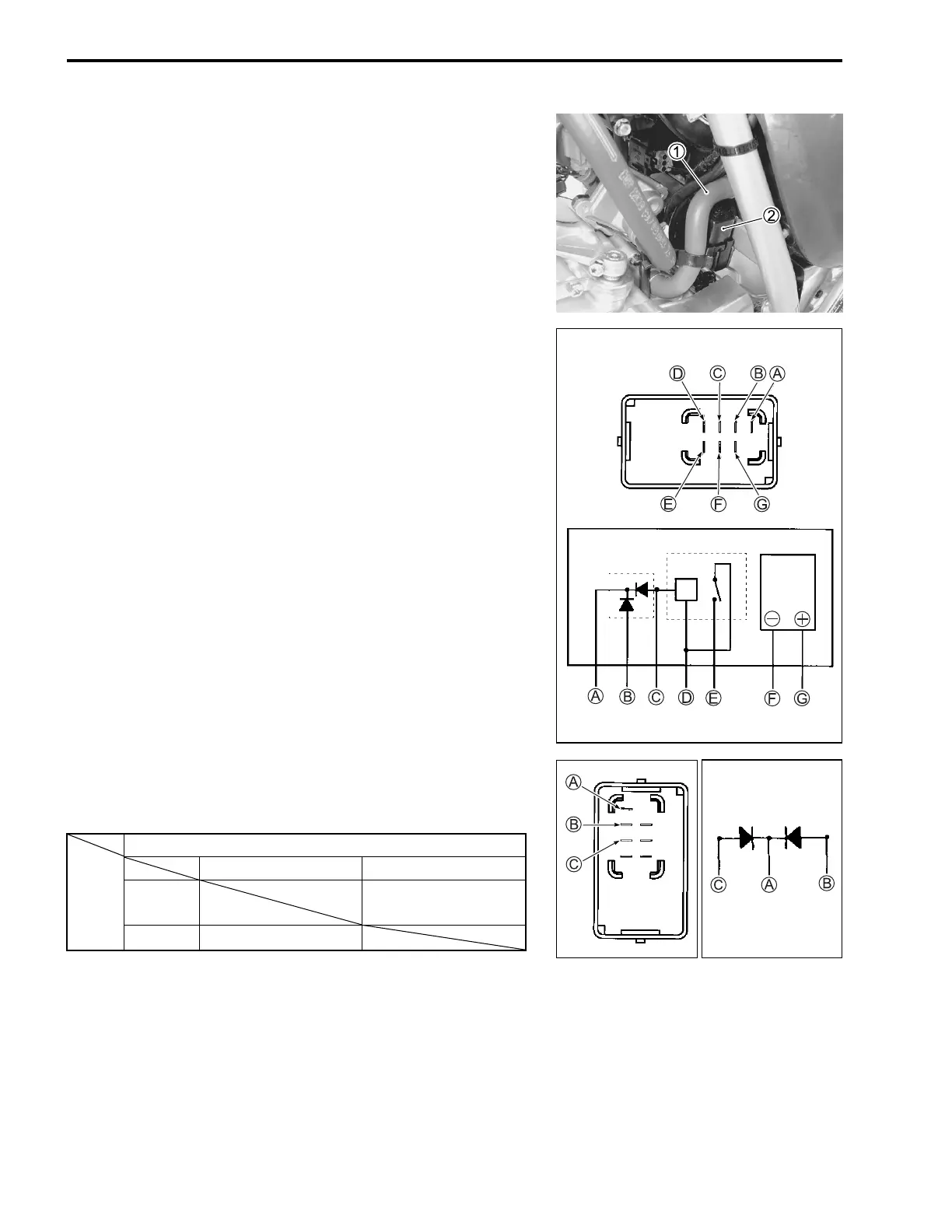

TURN SIGNAL/SIDE-STAND RELAY
The turn signal/side-stand relay is composed of the turn signal
relay, side-stand relay and diode.
• Disconnect the PCV hose 1.
• Remove the turn signal/side-stand relay 2.
SIDE-STAND RELAY INSPECTION
First check the insulation between D and E terminals with the
tester. Then apply 12 V to terminals D and C (+ to D and - to
C) and check the continuity between D and E. If there is no
continuity, replace the turn signal/side-stand relay with a new
one.
 09900-25008: Multi circuit tester set
 Tester knob indication: Continuity test ()
DIODE INSPECTION
Measure the voltage between the terminals using the multi cir-
cuit tester. Refer to the following table.
 09900-25008: Multi circuit tester set
 Tester knob indication: Diode test ()
NOTE:
If the multi circuit tester reads 1.4 V and below when the tester
probes are not connected, replace its battery.
DIODE
SIDE-STAND RELAY
TURN
SIGNAL
RELAY
+ Probe of tester to:
- Probe of tester to:
C, BA
C, B
1.4 V and more
(Tester’s battery voltage)
A 0.4 – 0.6 V

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
