PERIODIC MAINTENANCE 2-13

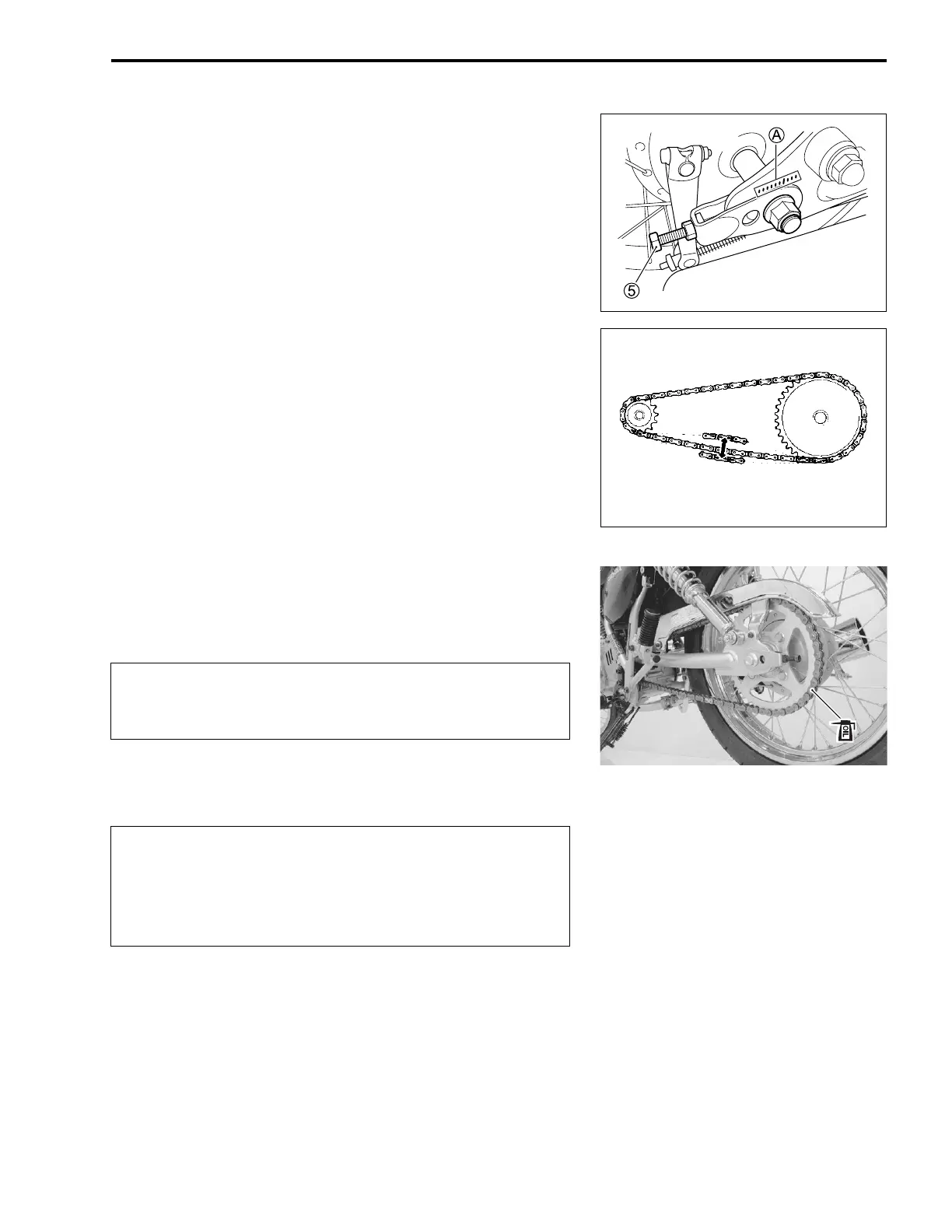

• Loosen or tighten both chain adjuster bolts 5 until the chain
has 10 – 20 mm (0.4 – 0.8 in) of slack at the middle of the
chain between the engine and rear sprockets as shown. The
reference marks A must be at the same position on the scale
to ensure that the front and rear wheels are correctly aligned.
 Drive chain slack: 10 – 20 mm (0.4 – 0.8 in)
• After adjusting the drive chain, tighten the rear axle nut 1 to
the specified torque.
 Rear axle nut: 65 N·m (6.5 kgf-m, 47.0 lbf-ft)
• Recheck the chain slack after tightening the rear axle nut and
readjust if necessary.
• Tighten both chain adjuster lock-nut securely.
• Tighten the torque link nut (rear) to the specified torque.
 Torque link nut (rear): 16 N·m (1.6 kgf-m, 11.5 lbf-ft)
• Readjust the rear brake pedal free travel. (2-17)
CLEANING AND LUBRICATING
• Clean the drive chain with kerosine. If the drive chain tends to
rust quickly, the intervals must be shortened.

• After cleaning and drying the chain, oil it with a heavy-weight
engine oil.

10 – 20 mm (0.4 – 0.8 in)
Do not use trichloroethylene, gasoline or any similar
solvent. These fluids will damage the O-rings. Use
only kerosine to clean the drive chain.
* Do not use any oil sold commercially as “drive chain
oil”. Such oil can damage the O-rings.
* The standard drive chain is DID520V. Suzuki recom-
mends to use this standard drive chain as a replace-
ment.

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
