ENGINE 3-27

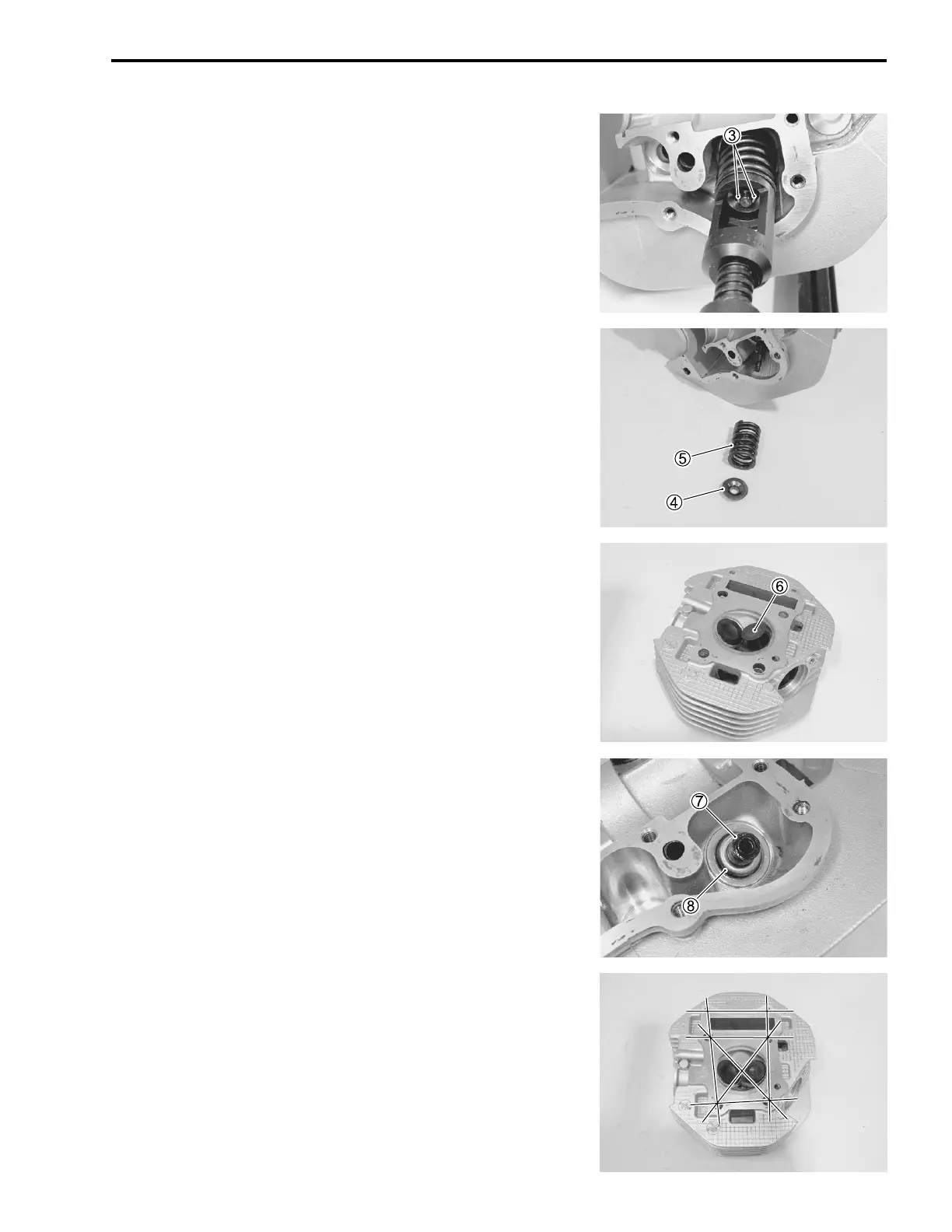

• Remove the valve cotters 3 from the valve stem.
 09916-84511: Tweezer
• Remove the valve spring retainer 4 and valve spring 5.
• Remove the valve 6 from the combustion chamber side.
• Remove the valve stem seal 7.
• Remove the valve spring seat 8.
NOTE:
Remove the intake valve in the same manner.
CYLINDER HEAD DISTORTION
Decarbonize the combustion chamber.
Check the gasket surface of the cylinder head for distortion
using a straightedge and thickness gauge. Take clearance read-
ings at several places. If readings exceed the service limit,
replace the cylinder head.
 Cylinder head distortion
Service Limit: 0.05 mm (0.002 in)
 09900-20803: Thickness gauge

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
