Suzuki TU250X User Manual

3-50 ENGINE

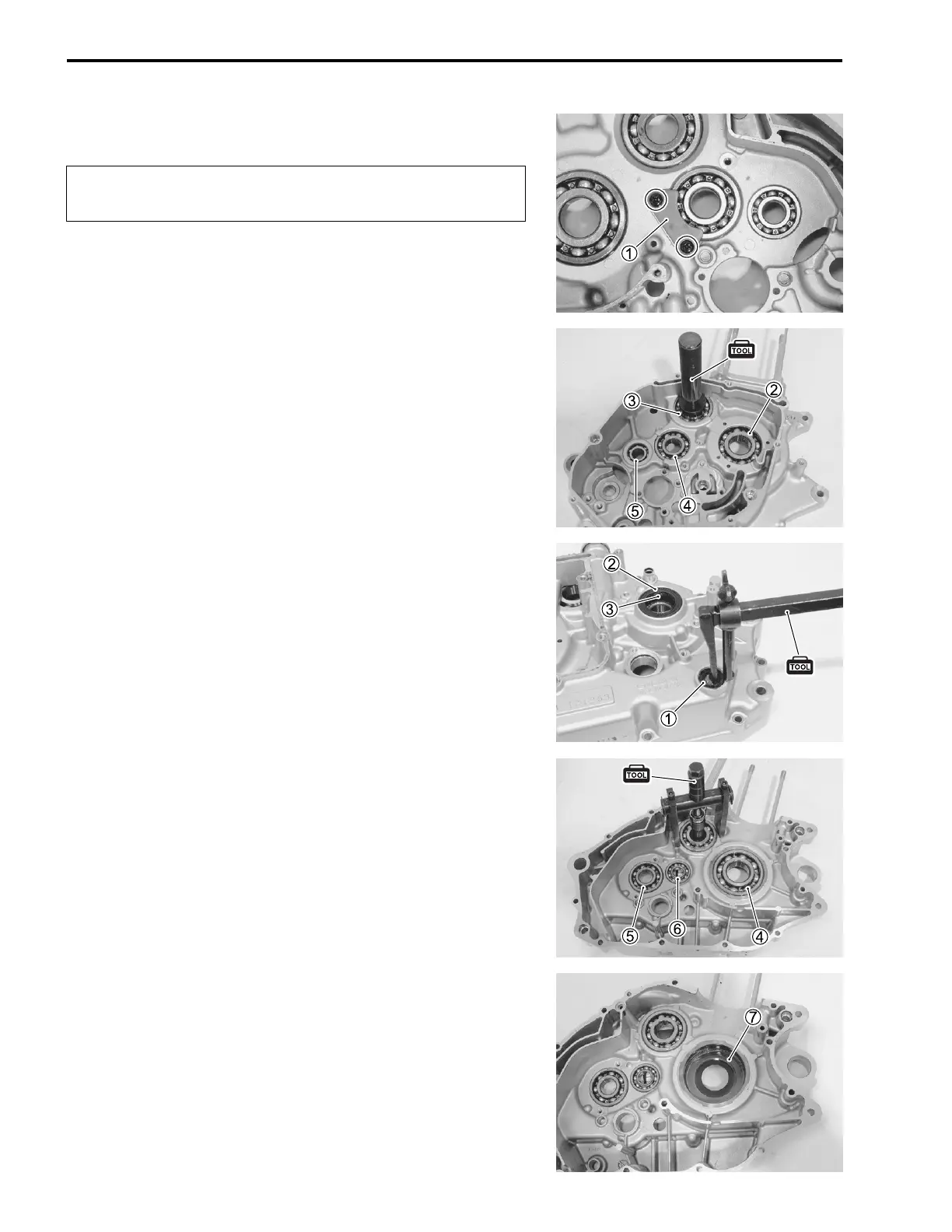

BEARING AND OIL SEAL REMOVAL

Right crankcase
• Remove the bearing retainer 1.
• Remove the bearings (2, 3, 4, 5) with the special tool.
Bearing 2: 47 Attachment
Bearing 3: 40 Attachment
Bearing 4: 35 Attachment
Bearing 5: 30 Attachment
 09913-70210: Bearing installer set (10 – 75 )
Left crankcase
• Remove the oil seals (1, 2, 3) with the special tool.
 09913-50121: Oil seal remover
• Remove the bearings (4, 5, 6) with the special tool.
Bearing 4: 35 mm Remover
Bearing 5: 17 mm Remover
Bearing 6: 25 mm Remover
 09921-20240: Bearing remover set
• Remove the washer 7.
The removed bearings and oil seals must be replaced
with new ones.

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
