Instrument Options—455/A2/B2

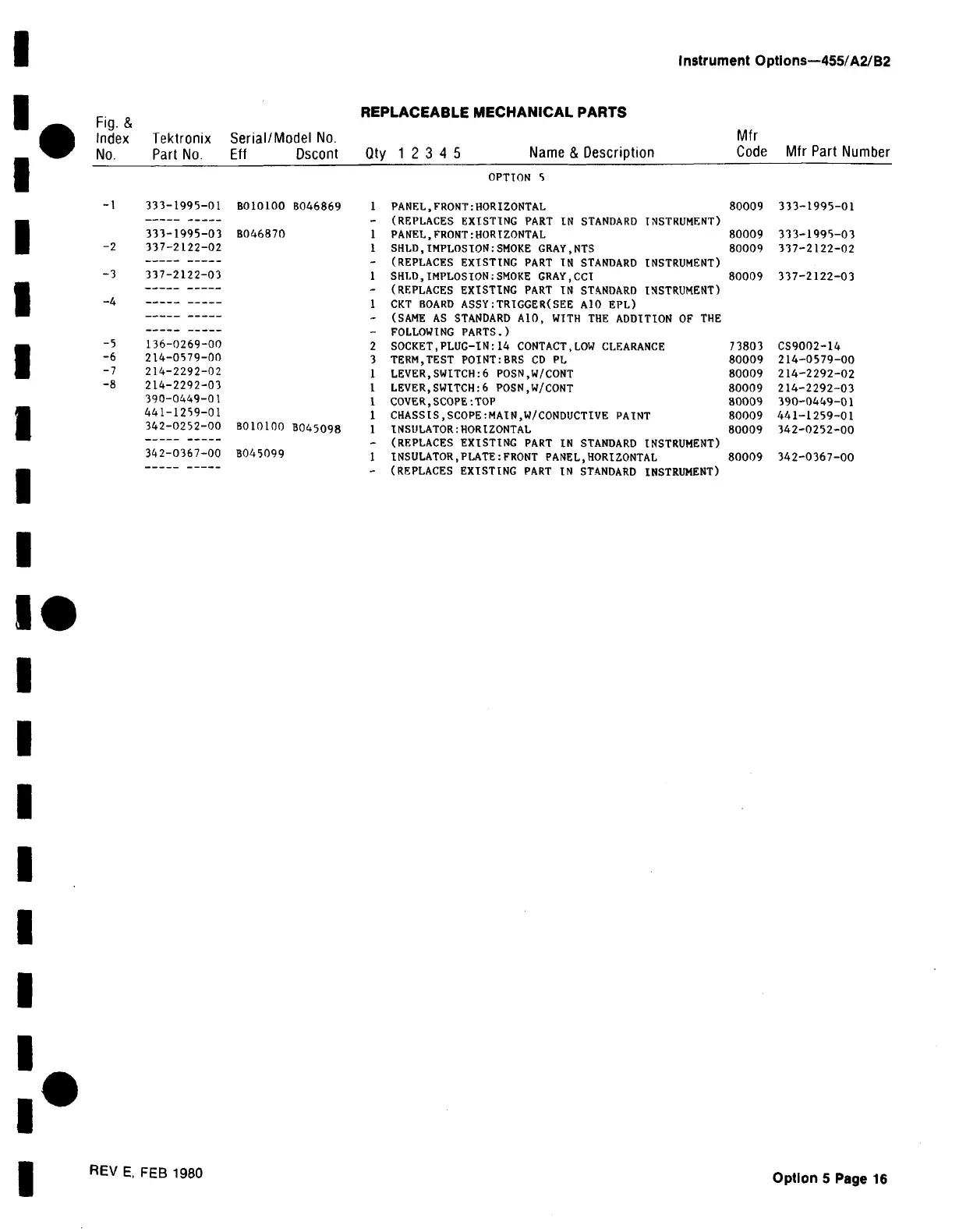

r . „ REPLACEABLE MECHANICAL PARTS
Fig. &
Index Tektronix Serial/M odel No.
No. Part No. Eff Dscont Qty 1 2 3 4 5 Name & Description
option 5
Mfr
Code Mfr Part Number
-1
333-1995-01 BO 10100
B046869
1 PANEL,FRONT:HORIZONTAL 80009 333-1995-01
-
(REPLACES EXISTING PART IN STANDARD INSTRUMENT)
333-1995-03 B046870
1 PANEL,FRONT:HORIZONTAL
80009 333-1995-03
-2
337-2122-02
1
SHLD,IMPLOSION:SMOKE GRAY.NTS 80009
337-2122-02
-
(REPLACES EXISTING PART IN STANDARD INSTRUMENT)
-3
337-2122-03
1
SHLD,IMPLOSION:SMOKE GRAY.CCI 80009
337-2122-03
-
(REPLACES EXISTING PART IN STANDARD INSTRUMENT)
-4
1 CKT BOARD ASSY:TRIGGER(SEE AlO EPL)
-
(SAME AS STANDARD AlO, WITH THE ADDITION OF THE
-
FOLLOWING PARTS.)
-5
136-0269-00
2 SOCKET,PLUG-IN:14 CONTACT,LOW CLEARANCE 73803
CS9002-14
-6
214-0579-00
3 TERM,TEST POINT:BRS CD PL 80009
214-0579-00
-7
214-2292-02
1
LEVER,SWITCH:6 POSN.W/CONT 80009
214-2292-02
-8
214-2292-03
1 LEVER,SWITCH:6 POSN.W/CONT
80009
214-2292-03
390-0449-01
1 COVER,SCOPE-.TOP 80009
390-0449-01
441-1259-01
1
CHASSIS,SCOPE:MAIN,W/CONDUCTIVE PAINT
80009
441-1259-01
342-0252-00
B010100
B045098 1 INSU LATOR:HORIZONTAL
80009
342-0252-00
-
(REPLACES EXISTING PART IN STANDARD INSTRUMENT)
342-0367-00
B045099
1
INSULATOR,PLATE:FRONT PANEL,HORIZONTAL
80009
342-0367-00
-
(REPLACES EXISTING PART IN STANDARD INSTRUMENT)
REV E, FEB 1980
Option 5 Page 16
