Specifications—455/A2/B2
TABLE 1-3 (continued)
Physical
Characteristic Information
Width
With Handle
13.65 in. (34.67 cm).
Without Handle
12.50 in. (31.75 cm).
Depth
Including Panel Cover
19.50 in. (49.53 cm).
Handle Extended
21.70 in. (55.19 cm).
Transportation
Meets the limits of National Safe Transit
Committee Test Procedure 1A with a 30-inch
drop.
Construction
Plastic alloy cabinet, alluminum alloy
chassis and panel, with glass laminate
etched wiring circuit boards.
Finish
Anodized front panel and textured
cabinet.
1 9 07 -2 0

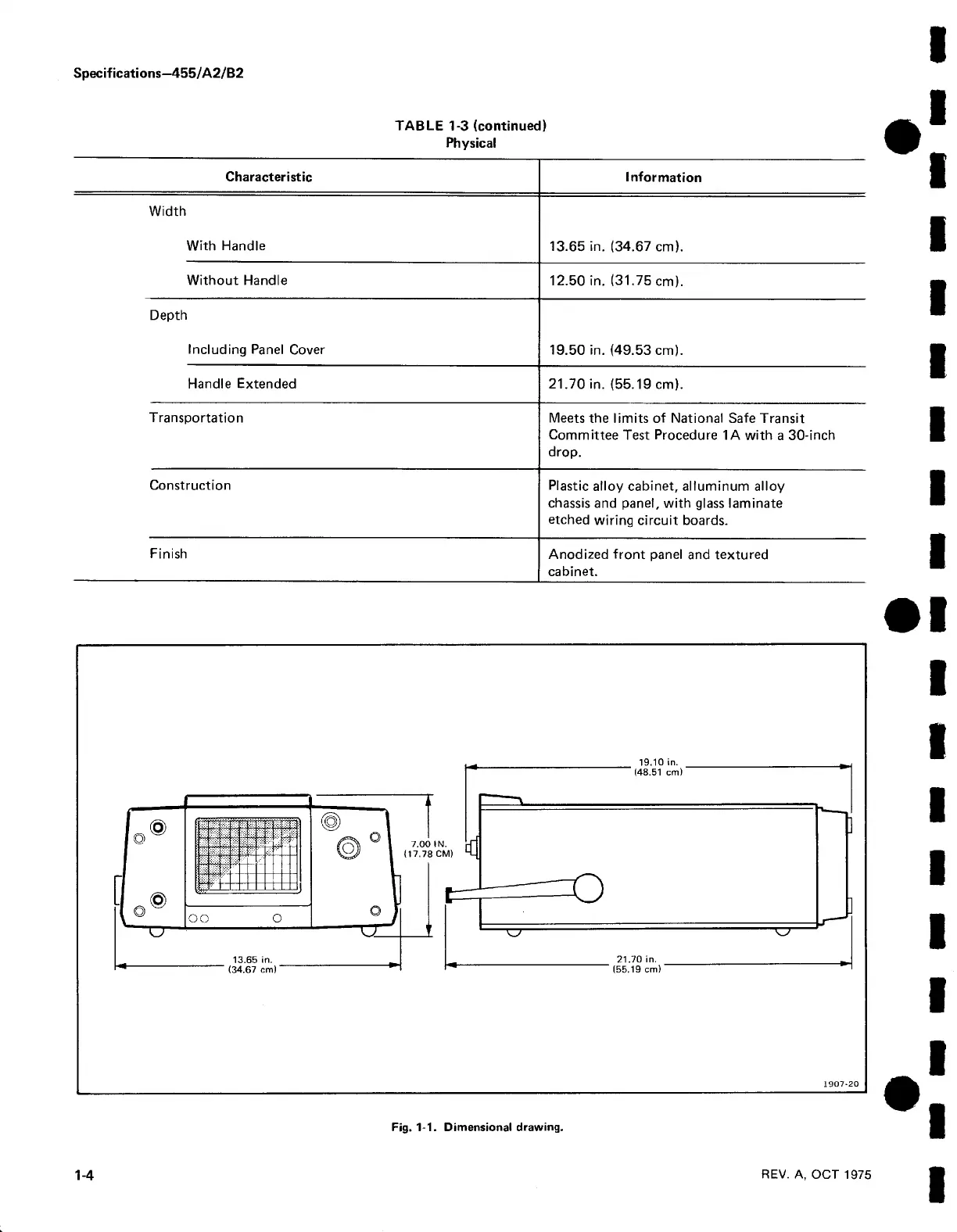

Fig. 1-1. Dimensional drawing.
1-4
REV. A, OCT 1975
