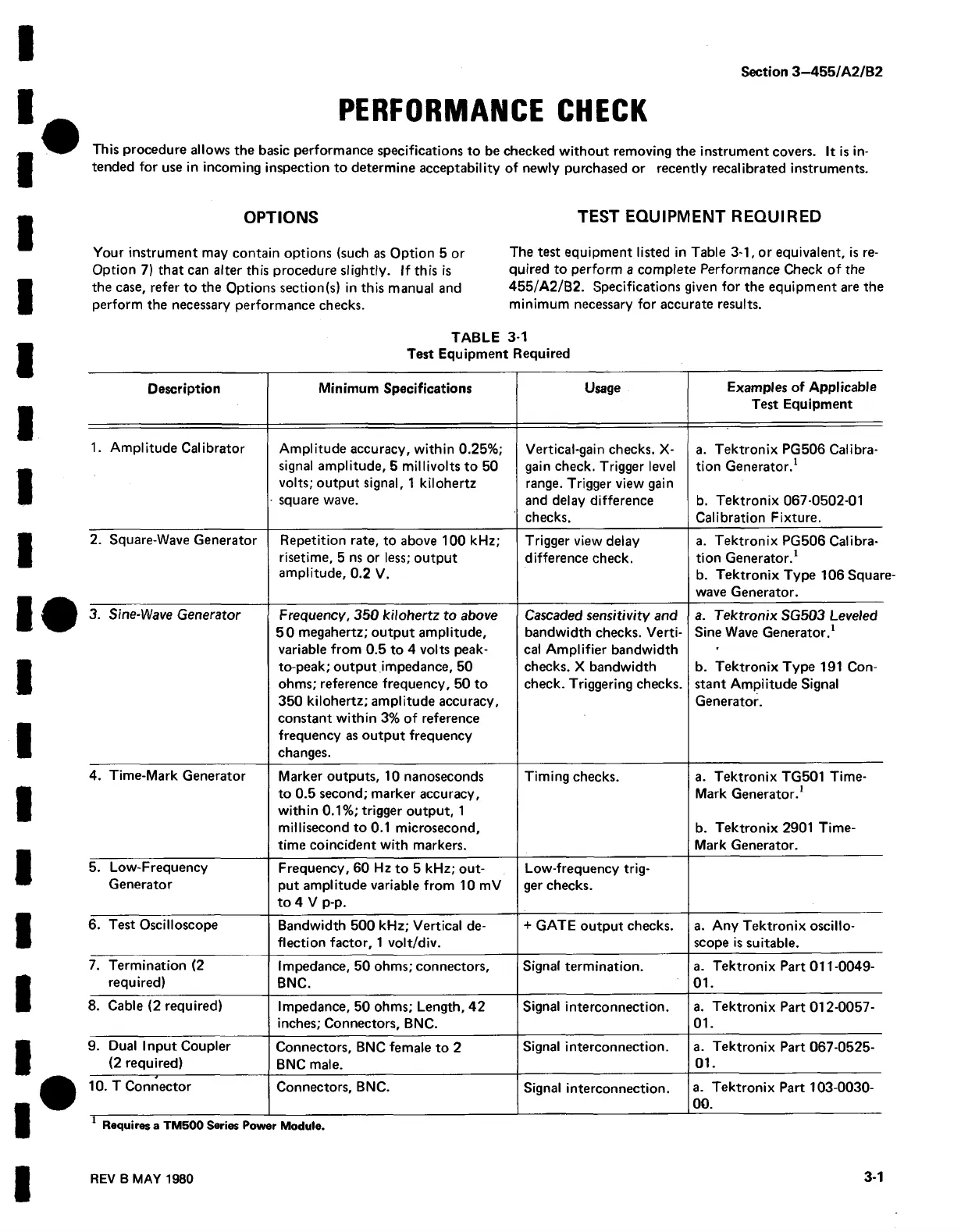

Section 3-455/A2/B2
PERFORMANCE CHECK
This procedure allows the basic performance specifications to be checked without removing the instrument covers. It is in
tended for use in incoming inspection to determine acceptability of newly purchased or recently recalibrated instruments.
OPTIONS
TEST EQUIPMENT REQUIRED
Your instrument may contain options (such as Option 5 or
Option 7) that can alter this procedure slightly. If this is
the case, refer to the Options section(s) in this manual and
perform the necessary performance checks.
The test equipment listed in Table 3-1, or equivalent, is re
quired to perform a complete Performance Check of the
455/A2/B2. Specifications given for the equipment are the
minimum necessary for accurate results.
TABLE 3-1
Test Equipment Required
Description Minimum Specifications
Usage
Examples of Applicable
Test Equipment
1. Amplitude Calibrator
Amplitude accuracy, within 0.25%;
signal amplitude, 5 millivolts to 50
volts; output signal, 1 kilohertz
• square wave.
Vertical-gain checks. X-
gain check. Trigger level
range. Trigger view gain
and delay difference
checks.
a. Tektronix PG506 Calibra
tion Generator.1
b. Tektronix 067-0502-01
Calibration Fixture.
2. Square-Wave Generator
Repetition rate, to above 100 kHz;
risetime, 5 ns or less; output
amplitude, 0.2 V.
Trigger view delay
difference check.
a. Tektronix PG506 Calibra
tion Generator.1
b. Tektronix Type 106 Square
wave Generator.
3. Sine-Wave Generator
Frequency, 350 kilohertz to above
50 megahertz; output amplitude,
variable from 0.5 to 4 volts peak-
to-peak; output impedance, 50
ohms; reference frequency, 50 to
350 kilohertz; amplitude accuracy,
constant within 3% of reference
frequency as output frequency
changes.
Cascaded sensitivity and
bandwidth checks. Verti
cal Amplifier bandwidth
checks. X bandwidth
check. Triggering checks.
a. Tektronix SG503 Leveled
Sine Wave Generator.1
b. Tektronix Type 191 Con
stant Amplitude Signal
Generator.
4. Time-Mark Generator
Marker outputs, 10 nanoseconds
to 0.5 second; marker accuracy,
within 0.1%; trigger output, 1
millisecond to 0.1 microsecond,
time coincident with markers.
Timing checks. a. Tektronix TG501 Time-
Mark Generator.1
b. Tektronix 2901 Time-
Mark Generator.
5. Low-Frequency
Generator
Frequency, 60 Hz to 5 kHz; out
put amplitude variable from 10 mV
to 4 V p-p.
Low-frequency trig
ger checks.
6. Test Oscilloscope
Bandwidth 500 kHz; Vertical de
flection factor, 1 volt/div.
+ GATE output checks. a. Any Tektronix oscillo
scope is suitable.
7. Termination (2
required)
Impedance, 50 ohms; connectors,
BNC.
Signal termination.
a. Tektronix Part 011-0049-
01.
8. Cable (2 required)
Impedance, 50 ohms; Length, 42
inches; Connectors, BNC.
Signal interconnection.
a. Tektronix Part 012-0057-
01.
9. Dual Input Coupler
(2 required)
Connectors, BNC female to 2
BNC male.
Signal interconnection.
a. Tektronix Part 067-0525-
01.
------------
7
---------------------
10. T Connector
Connectors, BNC.
Signal interconnection.
a. Tektronix Part 103-0030-
00.
Requires a TM500 Series Power Module.
REV B MAY 1980
