Maintenance—455/A2/B2
SCREW
TO REMOVE MODULE
PULL STRAIGHT UP
VERTICAL DEFLECTION
PLATE LEAD
UPPER
WHITE-BLUE
1907-43

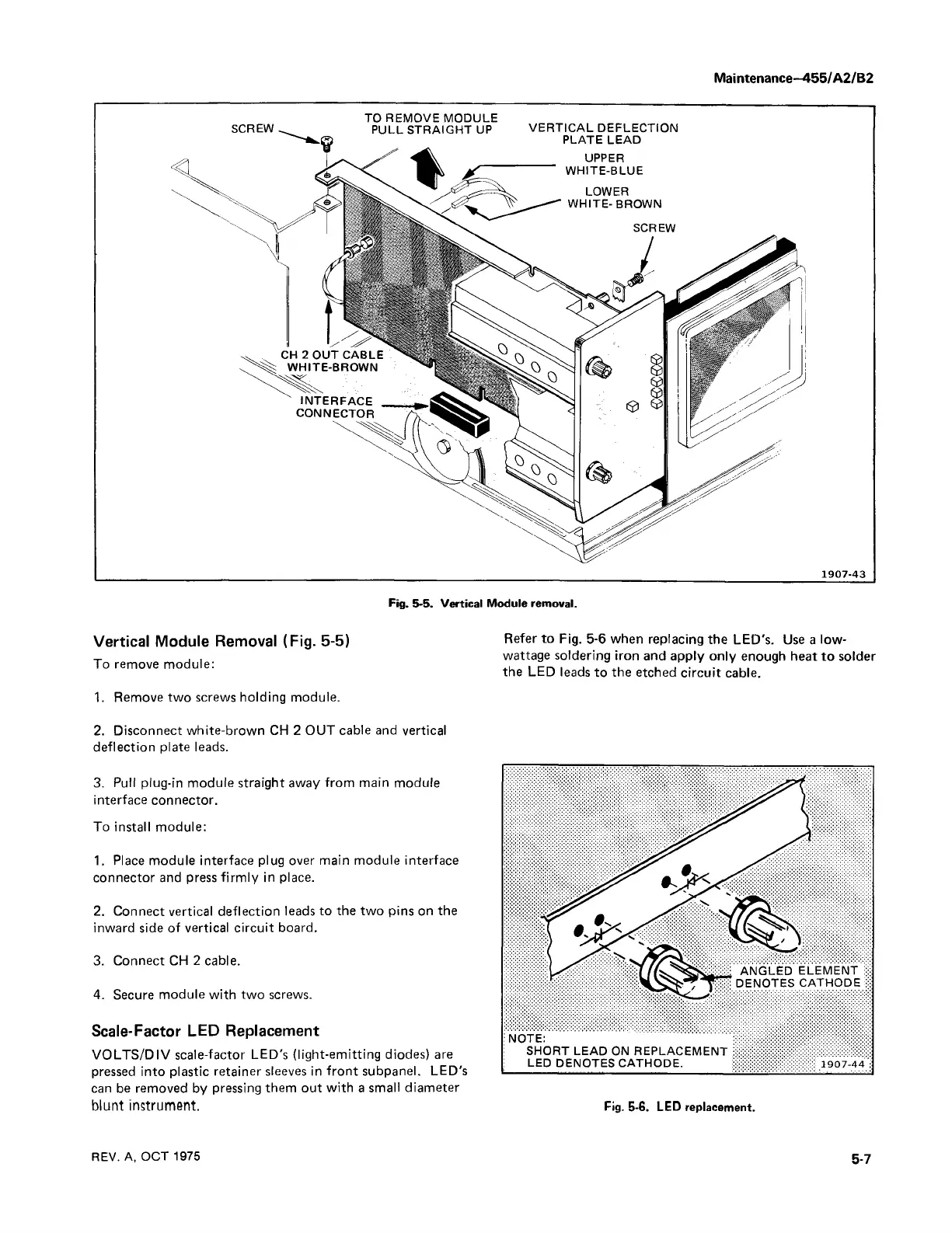

Fig. 5-5. Vertical Module removal.
Vertical Module Removal (Fig. 5-5)
To remove module:
1. Remove two screws holding module.
2. Disconnect white-brown CH 2 OUT cable and vertical
deflection plate leads.
3. Pull plug-in module straight away from main module
interface connector.
To install module:
1. Place module interface plug over main module interface
connector and press firmly in place.
2. Connect vertical deflection leads to the two pins on the
inward side of vertical circuit board.
3. Connect CH 2 cable.
4. Secure module with two screws.
Scale-Factor LED Replacement
VOLTS/DIV scale-factor LED's (light-emitting diodes) are
pressed into plastic retainer sleeves in front subpanel. LED's
can be removed by pressing them out with a small diameter
blunt instrument.
Refer to Fig. 5-6 when replacing the LED's. Use a low-
wattage soldering iron and apply only enough heat to solder
the LED leads to the etched circuit cable.
Fig. 5-6. LED replacement.
REV. A, OCT 1975
5-7
