Maintenance—455/A2/B2
2. Carefully lift clamp and hybrid 1C from socket. Be
careful not to damage socket contacts.
Hybrid 1C Removal
Handle hybrid 1C carefully. Ceramic material
may break if dropped.
To remove hybrid 1C:
1. Insert narrow-blade screwdriver between socket and one
lip of mounting clamp as shown in Fig. 5-8. Rotate screw
driver to release clamp from socket.
To install hybrid 1C:
1. Place hybrid 1C on socket so that cutoff corner of ceramic
substrate matches indexing key on socket.
2. Snap mounting clamp onto socket projections to hold
hybrid 1C in place.

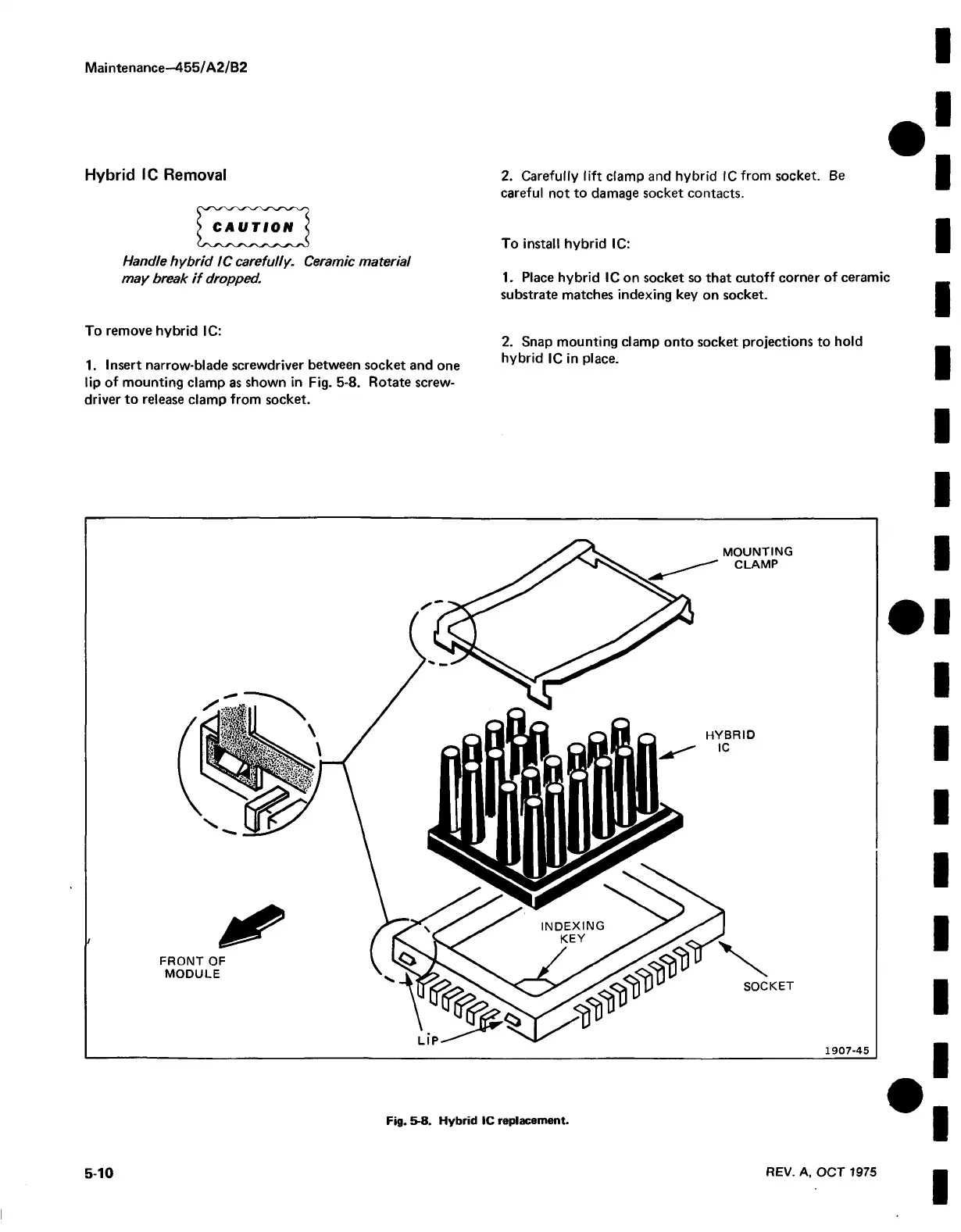

Fig. 5-8. Hybrid 1C replacement.
5-10
REV. A. OCT 1975
