To use

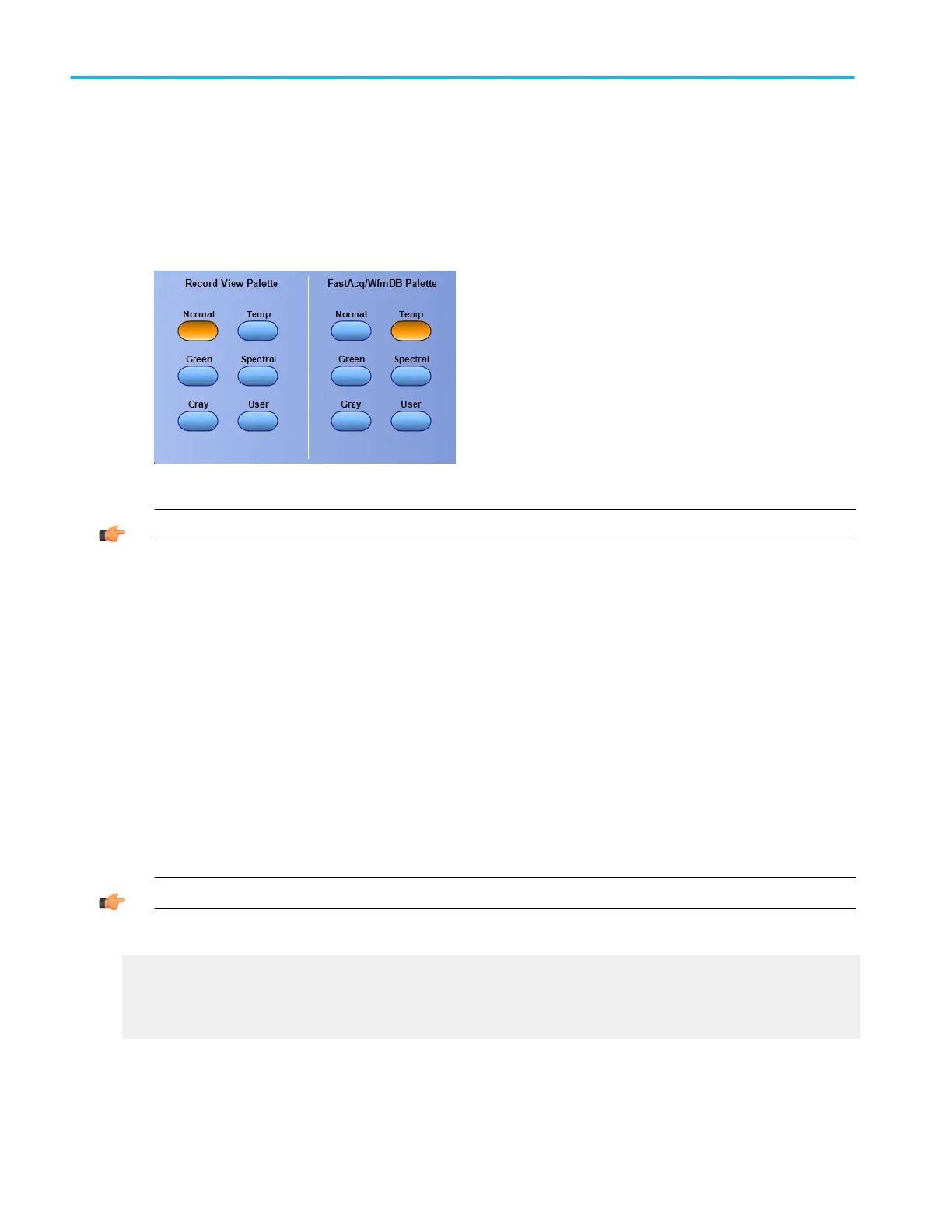

Click the buttons to define the color for displayed waveforms.
â–
Use the buttons under FastAcq/WfmDB Palette to define the color for live waveforms when using Waveform Database
acquisition mode.
â–
For some models, click the Edit button to activate the Display Palette, where you can customize a waveform color.
TIP. Use the Display menu Record View Palette or the WfmDB Palette submenu to directly access the color palettes.
Behavior
â–
Click Normal to define hues and lightness levels for best overall viewing. The color of each channel waveform matches the
color of the corresponding front-panel vertical SCALE knob.
â–
Click Spectral (Spectral Grading) to define areas of the waveform with the highest sample density appear in blue shades
while the areas of lowest sample density appear in red shades.
â–
Click Temp (Temperature Grading) to define areas of the waveform with the highest sample density appear in warmer
colors (red shades) while the areas of lowest sample density appear in cooler colors (blue shades).
â–
Click Gray (Monochrome Gray) to define waveforms in shades of gray. Areas of the waveform with the highest sample
density appear in lighter gray shades while the areas of lowest sample density appear in darker gray shades.
â–
Click Green (Monochrome Green) to define waveforms in shades of green. Areas of the waveform with the highest sample
density appear in lighter green shades while the areas of lowest sample density appear in darker green shades.
â–
Click User to display a color that you have previously defined with the User Palette.
TIP. The Green palette simulates the display of an analog oscilloscope.
What do you want to do next?
Learn about changing the overall display appearance.
Learn about changing the appearance of objects in the display.
Learn about using text with screen displays.
Display setups
178 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
