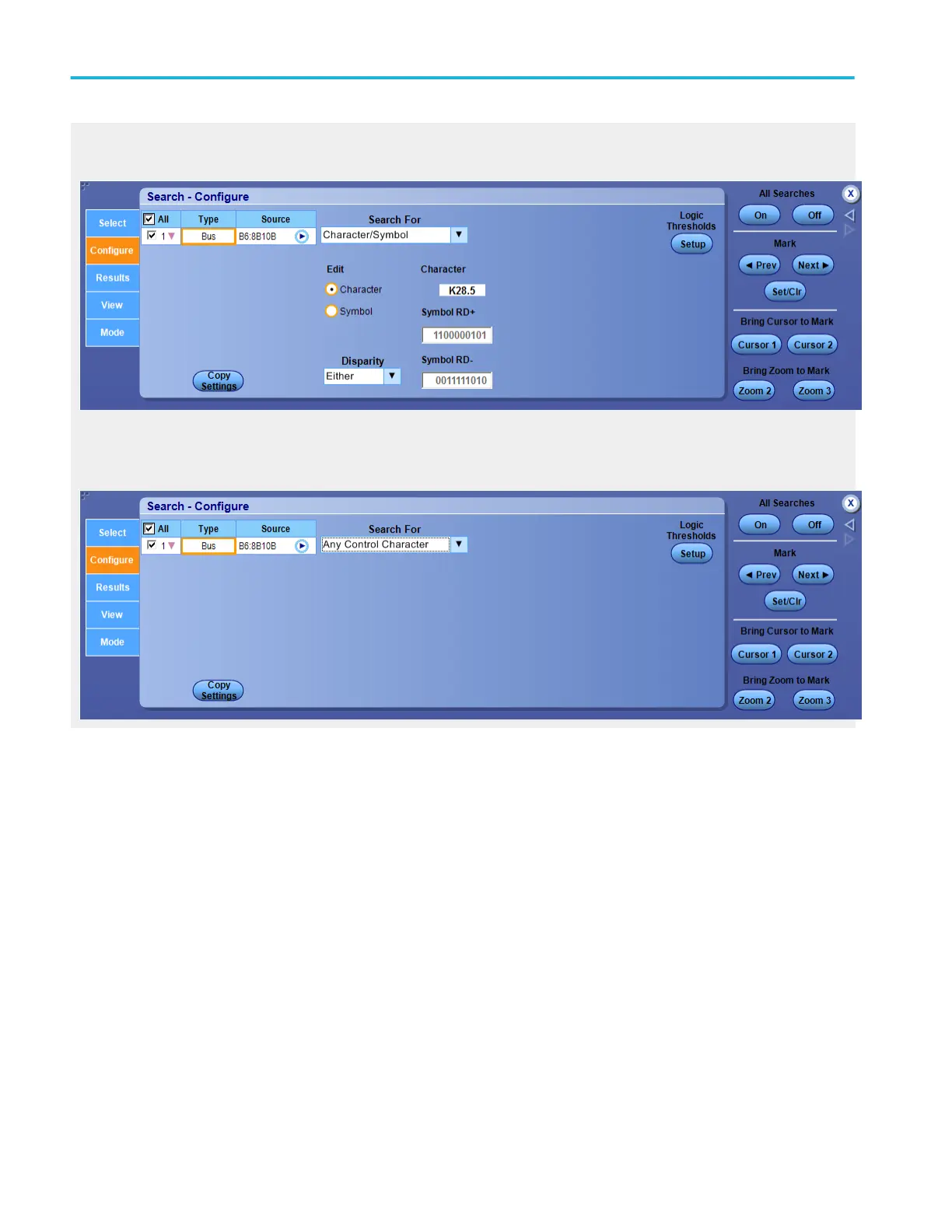

Search for character/symbol

The mode options available in Search For Character/Symbol are Character, Symbol, and Disparity.

Select the Disparity from the drop-down list. Click Character to search for a character. Click Symbol to search for a symbol. Click Setup to

adjust the logic thresholds.

Search for any character

Set up RS-232 search parameters

After setting up an RS-232 bus, go to the Analyze menu, select Search, and then select the Bus trigger type; then open the

Configure tab.

Overview

Use the controls to set up the RS-232 Bus parameters.

Analyzing waveforms

316 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
