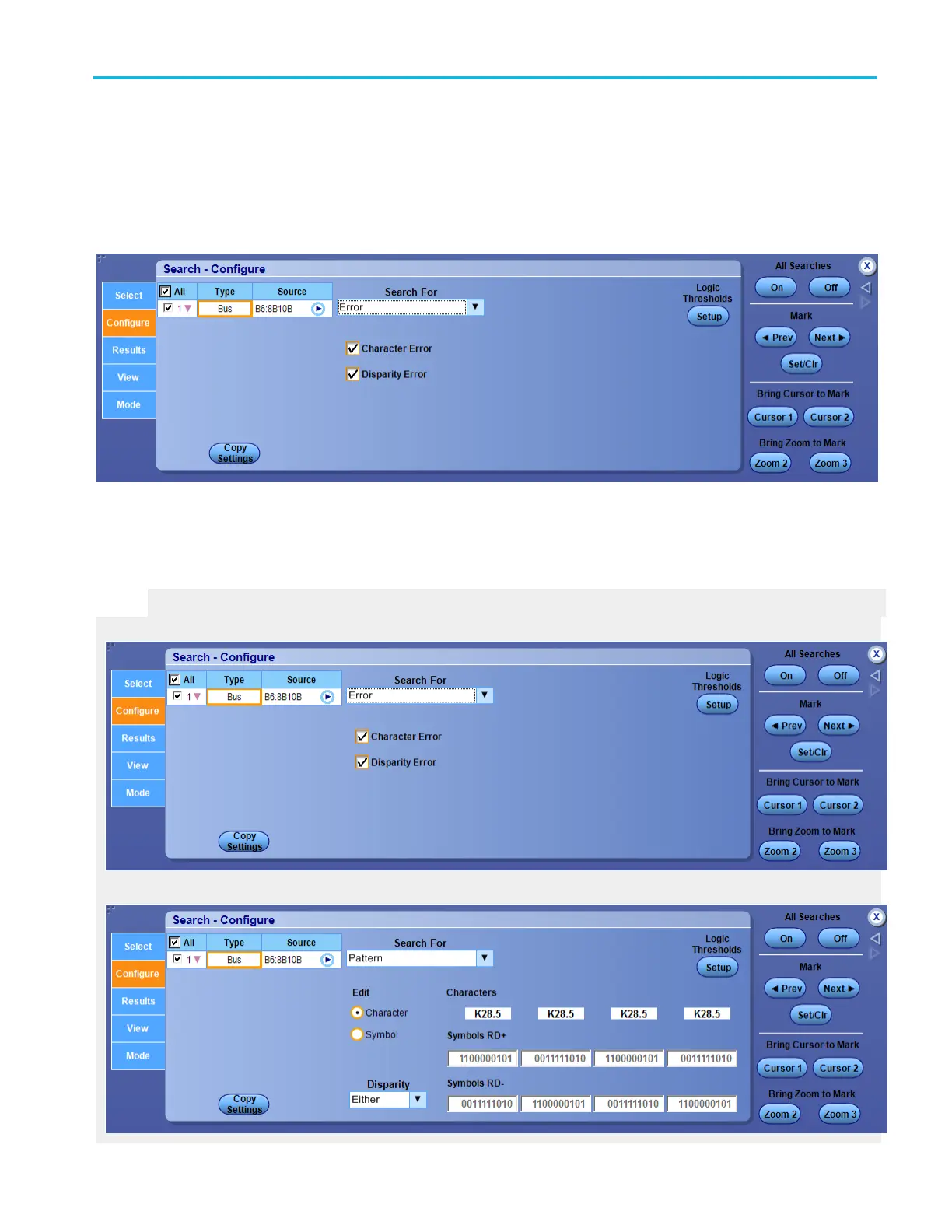

For some Search For selections, you must set additional fields to define other parameters such as for an Error.

In this example, you need to the errors to search for. Optionally, you can also set the component threshold levels through

the Logic Thresholds Setup button.

Click the Search For selections Error, Pattern, Character/Symbol, or Any Character to view their parameters.

What do you want to do next?

Learn about bus setups.

Search for error

Search for pattern

Analyzing waveforms
