What do you want to do next?
Learn more about the Horizontal Setup controls.
Learn about the Acquisition Setup controls
Set record length limit

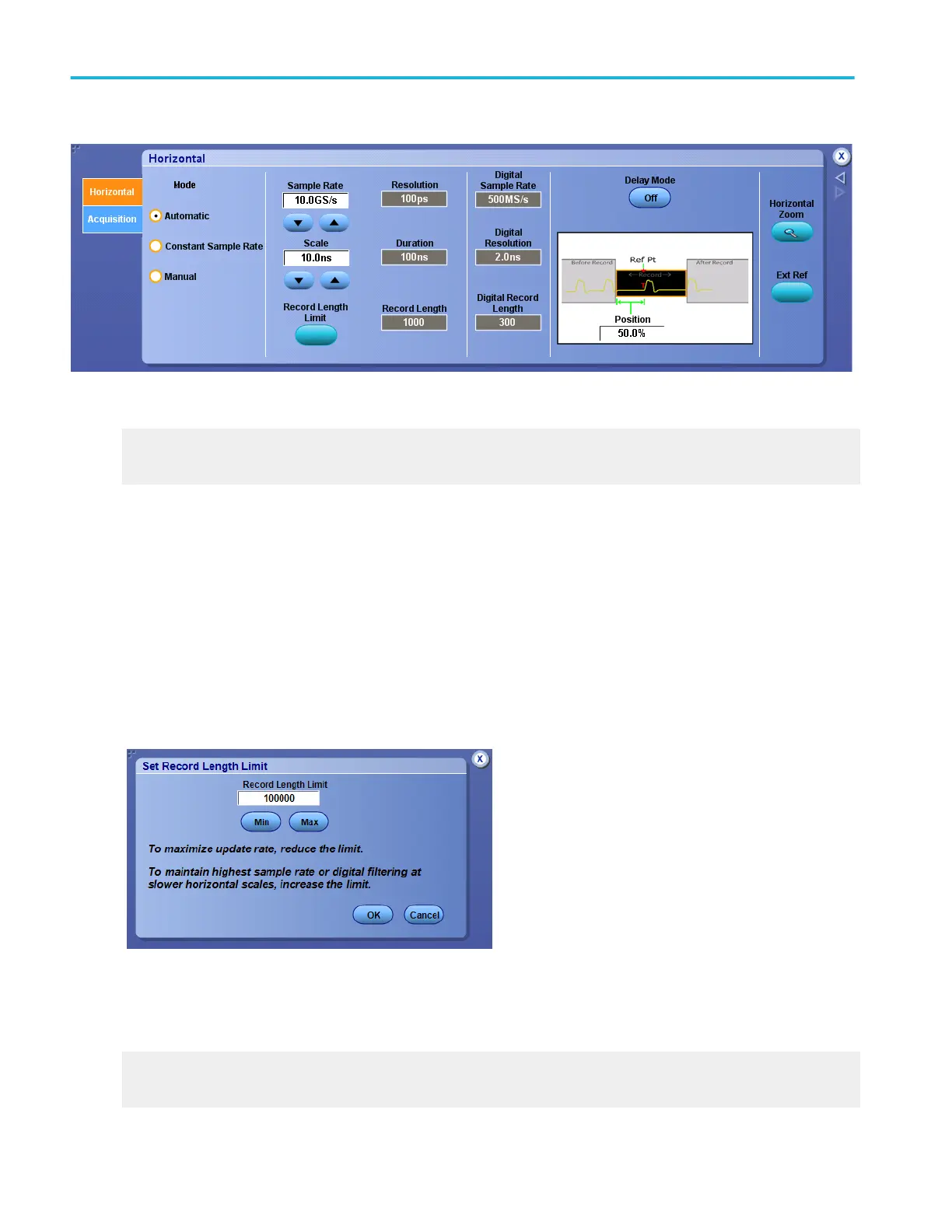

From the Horiz /Acq menu, select Horizontal/Acquisition Setup; then click Record Length Limit.
To use
■
Use the Record Length Limit entry box to set the maximum record length.
■
Use the Max button to set the record length limit to its maximum value.
■
Use the Min button to set the record length limit to its minimum value.
To increase the update rate, lower the record length limit. To enable higher sample rates or digital filtering at slower horizontal
scales, increase the record length limit.
What do you want to do next?
Learn more about the Horizontal Setup controls.
Learn about the Acquisition Setup controls
Horizontal and acquisition setups
182 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
