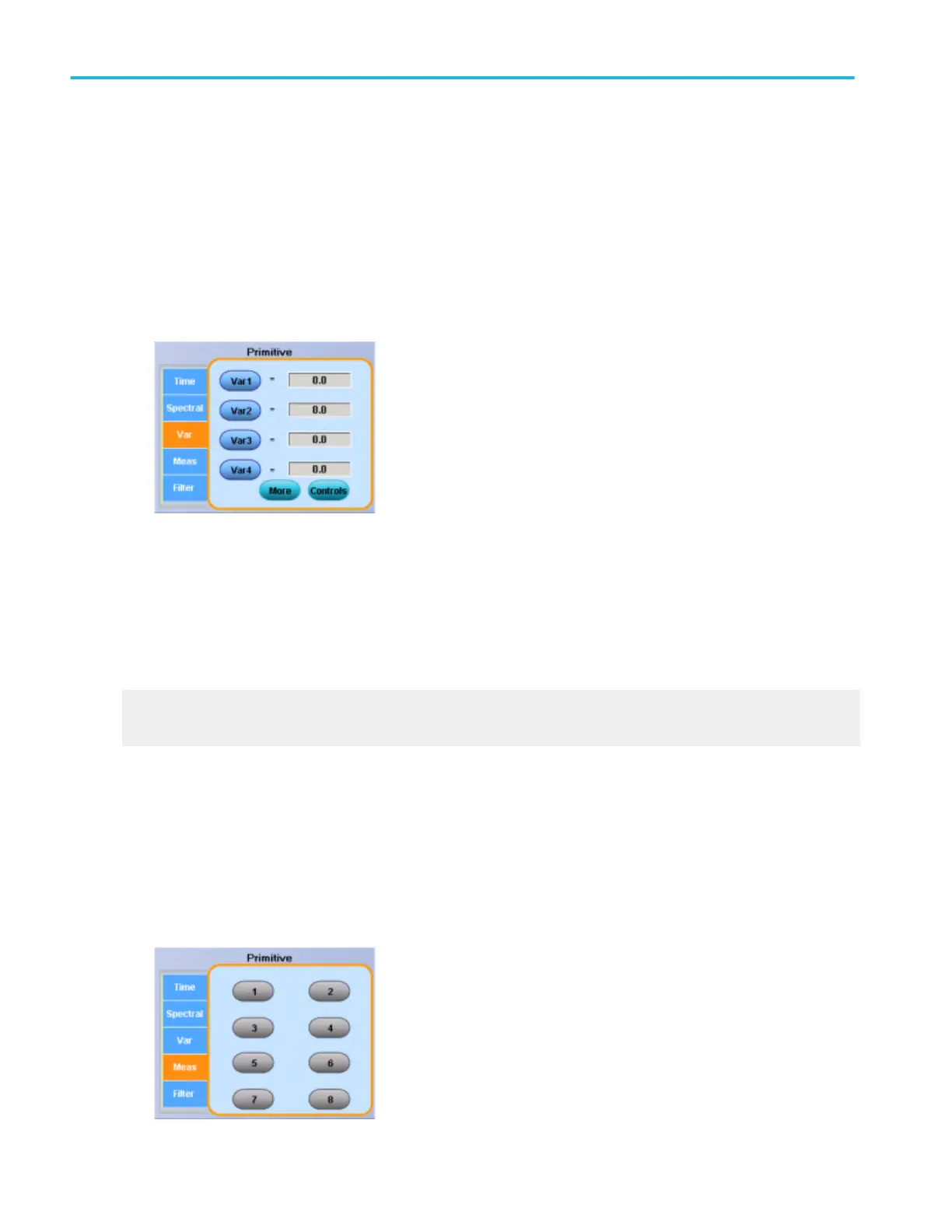

Math equation editor (Var tab)
From the Math menu, select Equation Editor; then open the Var tab.
To use.
1. Click in a Var <1-8> = entry box and use the multipurpose knobs to enter a value for the variable.
2. Click More to add additional variables
3. Click the associated button to enter that variable into the math expression.
4. Click Controls to access the Math Variables control window.
Behavior. You can assign up to eight different variables to add to your math expression.
■
Clicking a Var <1-8> button enters the variable into the math expression.
■
Clicking the More button accesses the other four variables.
■
The Controls button activates the Math Variables control window where you can quickly set or change the math variables.
What do you want to do next?
Learn about the Edit controls.
Learn about the Math Variable controls.
Math equation editor (Meas tab)
From the Math menu, select Equation Editor; then open the Meas tab.
To use.
1. Use the list to enter one of the predefined measurements into the math expression.
2. Click the button adjacent to an item to insert the measurement into the expression.
Math setups
266 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
