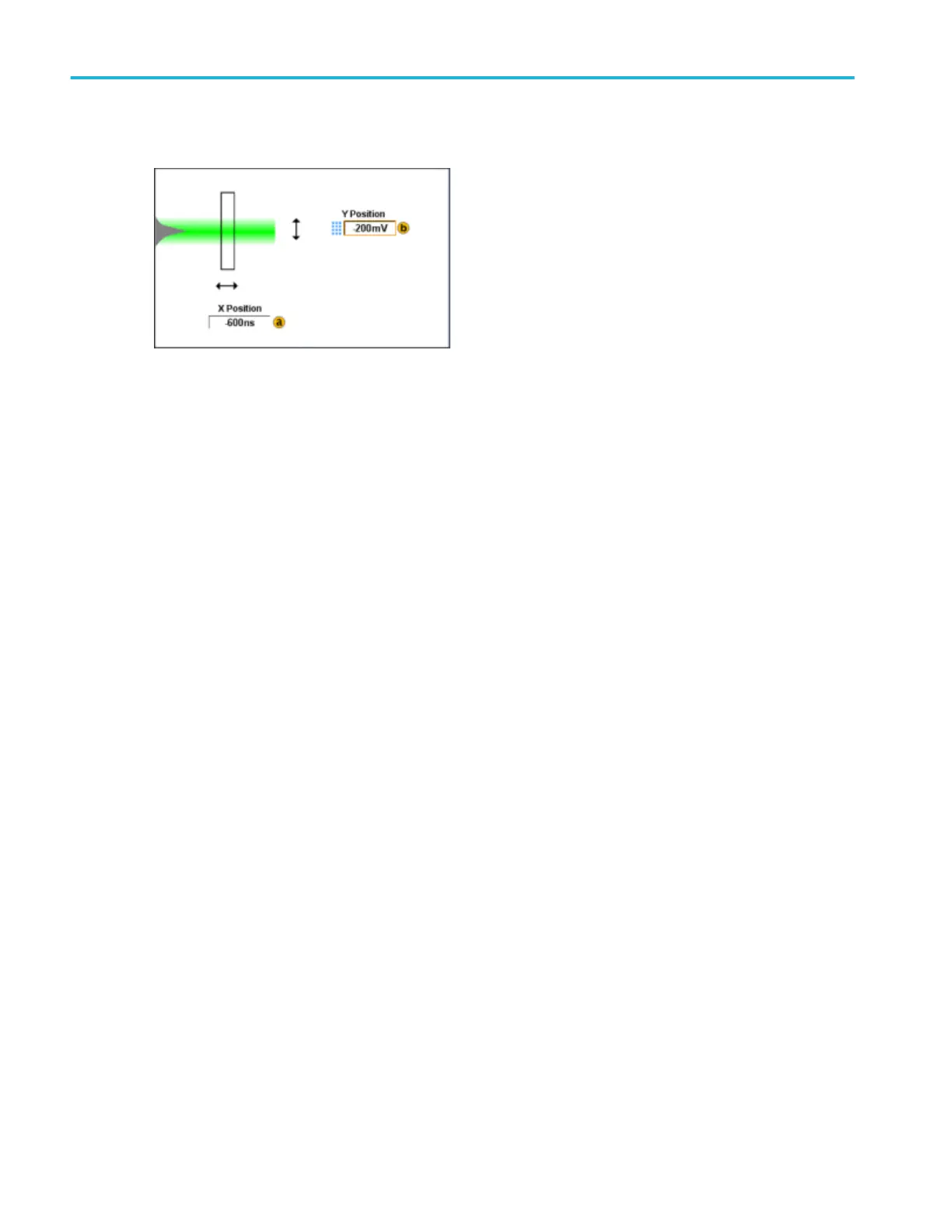

3. Enter limits:
Histogram max
Displays the voltage of the highest nonzero bin in vertical histograms or the time of the right-most nonzero bin in the horizontal
histograms.
Histogram mean
Measures the average of all acquired points within or on the histogram box.
Histogram min
Displays the voltage of the lowest nonzero bin in vertical histograms or the time of the left-most nonzero bin in the horizontal
histograms.
Hits in box
Displays the number of points in or on the histogram box.
Maximum
This voltage measurement is the maximum amplitude. It is typically the most positive peak voltage and is measured over the
entire waveform or gated region.
Mean plus or minus 1 StdDev
The percentage of points in the histogram that are within one standard deviation of the histogram mean.
Mean plus or minus 2 StdDev
The percentage of points in the histogram that are within two standard deviations of the histogram mean.
Oscilloscope reference
766 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
