Tektronix MSO5204B Printable Help

To use
1. Connect a probe to a vertical input.
2. Press a front panel Ch <1–4> button to activate the channel.
3. In the Probe Setup window, click a Chan <1–4> tab to activate the controls for the input source.
4. Configure the controls for the probe type you attached.
What do you want to do next?
Learn more about the Vertical controls.

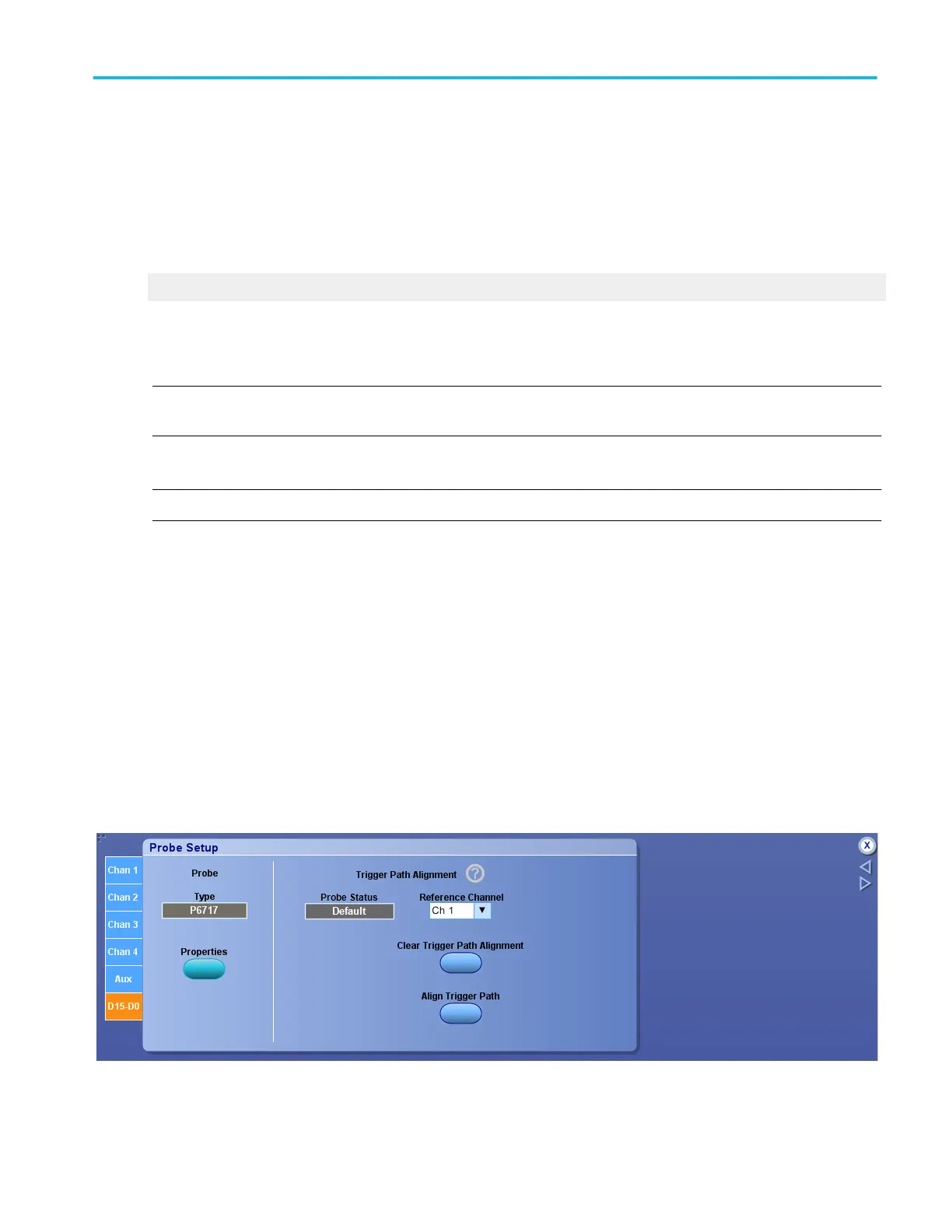

Probe setup control window (D15-D0 tab)
NOTE. The Probe Setup Control Window: D15-D0 Tab is available only on MSO5000B and MSO70000C/DX Series instruments
and on DPO5000B Series instruments with option MSOE installed, and DPO70000DX instruments with option MSOU installed.
From the Vertical menu, select Probe Controls, click the Setup button, and then open the D15-D0 tab.
NOTE. You must attach a logic probe to the logic probe port on the front panel to activate this setup window.
Overview
Use the Probe Setup control window to align the instrument trigger path to optimize measurement accuracy. The logic probe
input for channels D15-D0 is located on the instrument front panel.
The instrument requires the Logic Probe Deskew Fixture (Tektronix part number 067-2083-XX) to deskew the logic probe trigger
path.
To use
For information on the controls, click the buttons.
■
Properties
■
Align Trigger Path
1. Connect a logic probe to the logic probe port on the front panel.
2. From the Digital menu, select Digital Setup.
Vertical setups
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 501
