TL-WA7510N 5GHz 150Mbps Outdoor Wireless Access Point User Guide
97

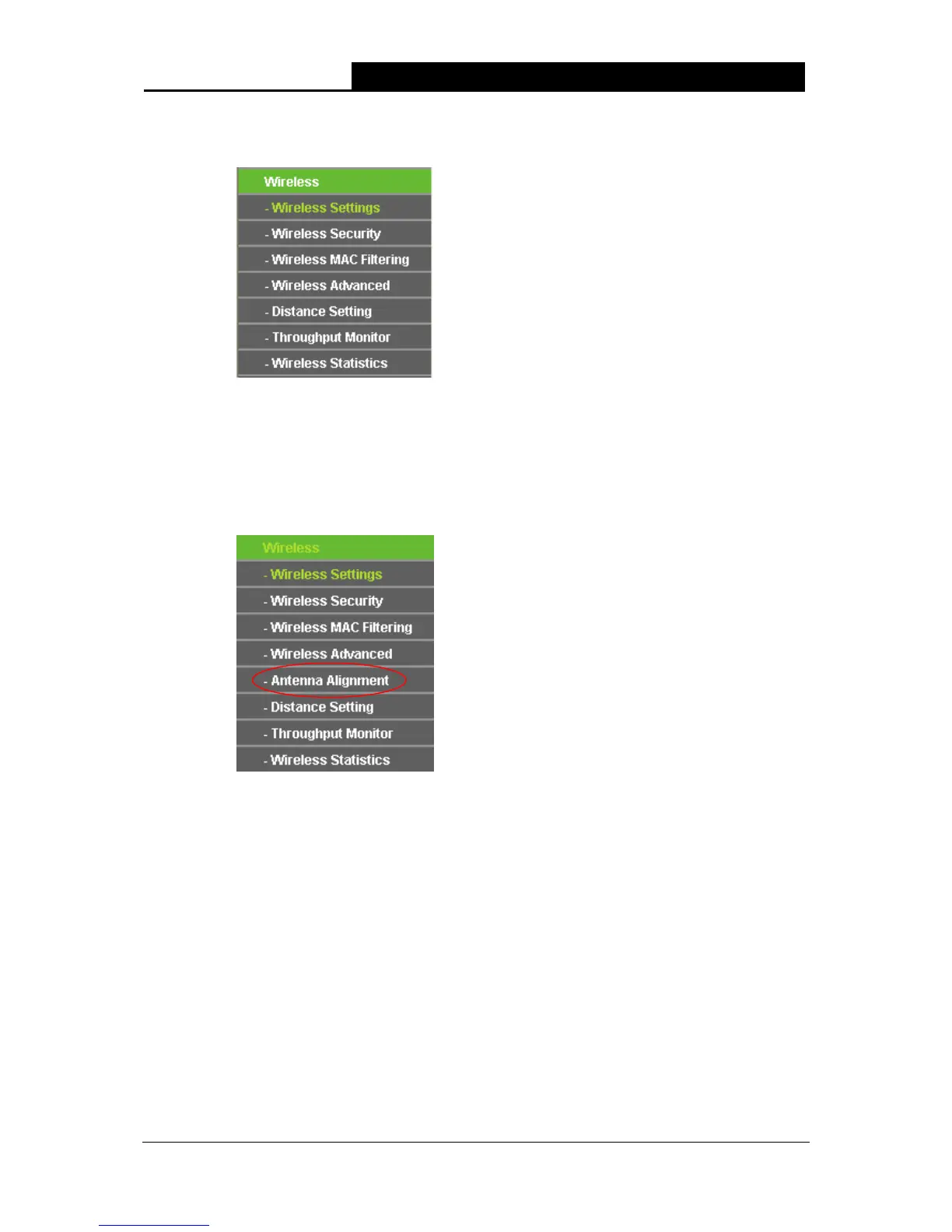

5.7 Wireless
Figure 5-24 Wireless menu in AP Router Mode
In AP Router mode, there are seven submenus under the Wireless menu (shown in Figure 5-24):
Wireless Settings, Wireless Security, Wireless MAC Filtering, Wireless Advanced, Distance
Setting, Throughput Monitor and Wireless Statistics. Click any of them, and you will be able to
configure the corresponding function.
Figure 5-25 Wireless menu in AP Client Router Mode
In AP Client Router mode, there are eight submenus under the Wireless menu (shown in Figure 5-25):
Wireless Settings, Wireless Security, Wireless MAC Filtering, Wireless Advanced, Antenna
Alignment, Distance Setting, Throughput Monitor and Wireless Statistics. Click any of them,
and you will be able to configure the corresponding function.
)
Note:
Notably, there is one more submenu in AP Client Router mode, which is Antenna Alignment.
5.7.1 Wireless Settings
Choose menu “Wireless > Wireless Settings”, and then you can configure the basic settings for
the wireless network on the Wireless Settings page（Figure 5-26 & Figure 5-27）.

TP-Link TL-WA7510N Specifications

General

Frequency band	5.745 - 5.825 GHz
Cabling technology	10/100BASE-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11n
Receiver sensitivity	802.11a 54M: -77dBm 48M: -79dBm 36M: -83dBm 24M: -86dBm 18M:-91dBm 12M:-92dBm 9M:-93dBm 6M:-94dBm 802.11n 150M: -73dBm 121.5M: -76dBm 108M: -77dBm 81M: -81dBm 54M:-84dBm 40.5M:-88dBm 27M:-91dBm 13.5M:-93dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Networking features	Fast Ethernet
Wireless technology	802.11a/n
Antenna gain level (max)	15 dBi
Internal	No
Certification	CE, FCC, RoHS
LED indicators	Yes
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	5 - 95 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	-40 - 70 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Windows 2000, XP, Vista, 7 MAC NetWare UNIX Linux

Weight and Dimensions

Dimensions (WxDxH)	250 x 85 x 60.5 mm
