TL-WA7510N 5GHz 150Mbps Outdoor Wireless Access Point User Guide
30
2) After you have entered the above necessary parameters and then click Next, Figure 3-22 will
then appear.

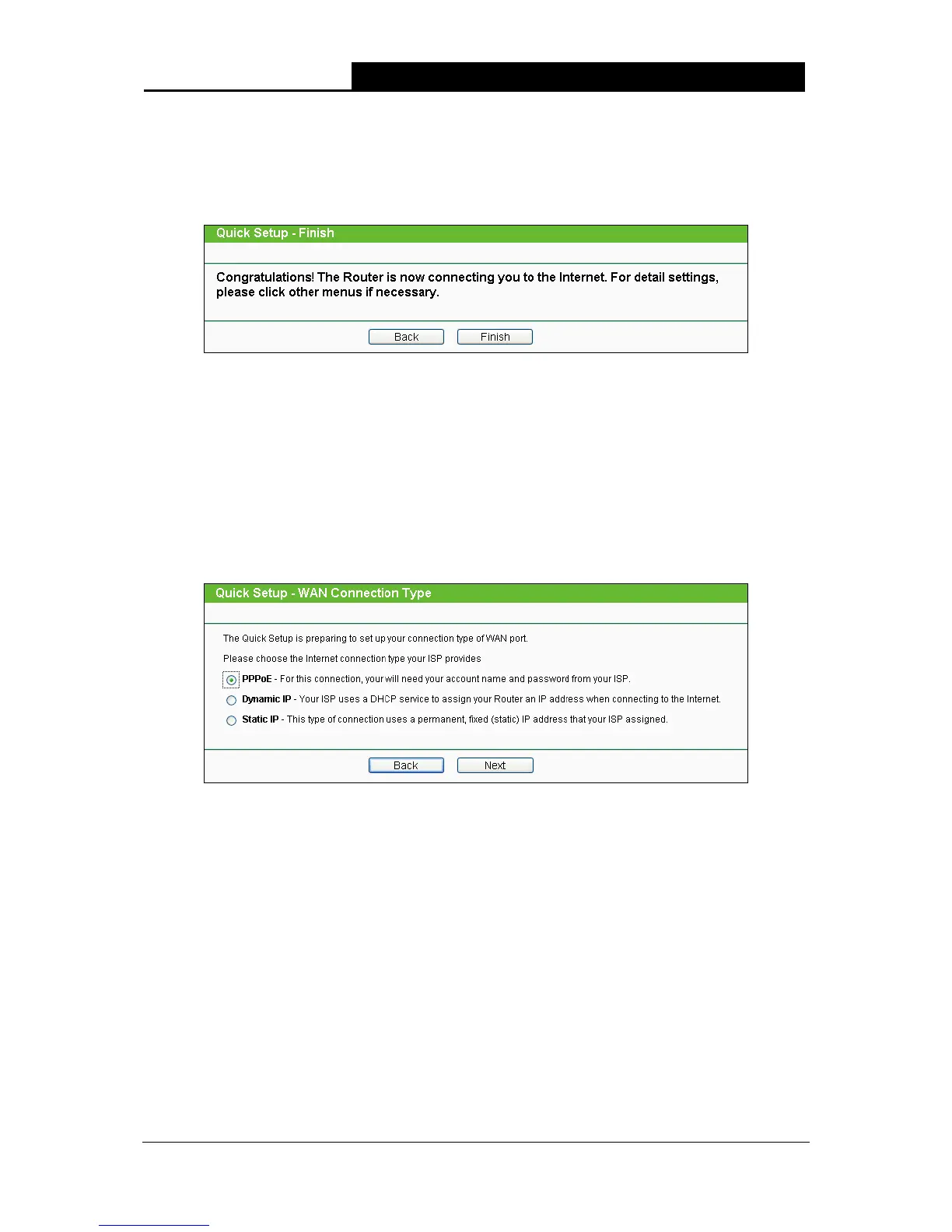

2. When you finish the wireless setting in Figure 3-22 and click Next, then Figure 3-24will
appear, where you can click Finish button to complete the Quick Setup.
Figure 3-24
3.2.3 AP Client Router Mode
When you choose AP Client Router Mode on Operation Mode page in Figure 3-10 , take the
following steps:
1. Click Next in Figure 3-10, and then WAN Connection Type page will appear as shown in
Figure 3-25.
Figure 3-25
¾ PPPoE - If you have applied ADSL to realize Dial-up service, you should choose this type. In
this condition, you should fill in both the User Name and Password that your ISP supplies.
1) If you choose PPPoE in Figure 3-25 and then click Next, Figure 3-26 will appear.
