TL-WA7510N 5GHz 150Mbps Outdoor Wireless Access Point User Guide
155
Appendix A: FAQ
1. How do I configure the Device to access the Internet by ADSL users?
1) First, configure the ADSL Modem configured in RFC1483 bridge model.
2) Connect the Ethernet cable from your ADSL Modem to the WAN port on the Device. The
telephone cord plugs into the Line port of the ADSL Modem.
3) Login to the Device, click the “Network” menu on the left of your browser, and click "WAN"
submenu. On the WAN page, select “PPPoE” for WAN Connection Type. Type user name in
the “User Name” field and password in the “Password” field, finish by clicking “Connect”.

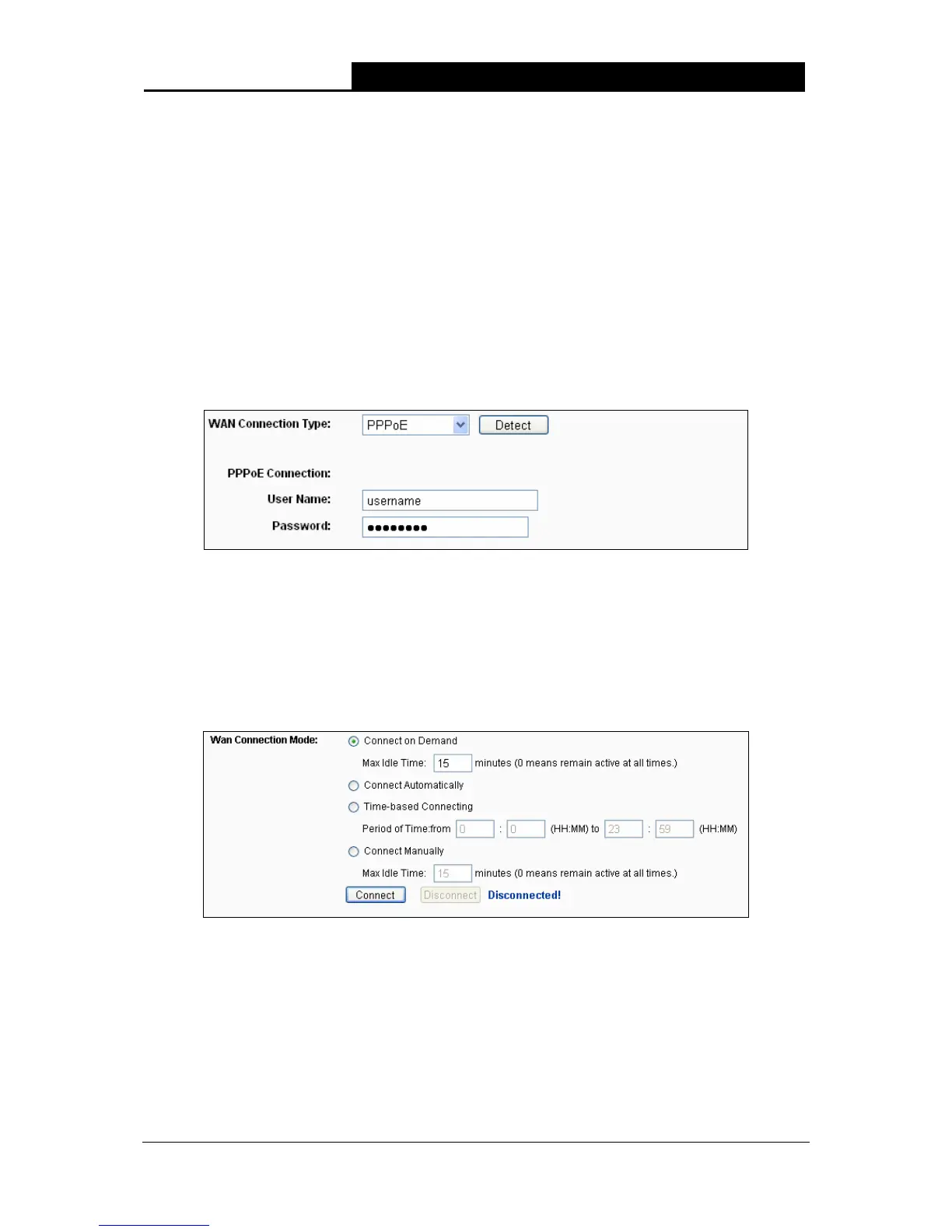

Figure A-1 PPPoE Connection Type
4) If your ADSL lease is in “pay-according-time” mode, select “Connect on Demand” or “Connect
Manually” for the Internet connection mode. Type in an appropriate number for “Max Idle
Time” to avoid wasting paid time. Otherwise, you can select “Auto-connecting” for the Internet
connection mode.
Figure A-2 PPPoE Connection Mode
)
Note:
1. Sometimes the connection cannot be disconnected although you specify a time to Max Idle
Time, since some applications is visiting the Internet continually in the background.
2. If you are a Cable user, please configure the Device following the above steps.
