TL-WA7510N 5GHz 150Mbps Outdoor Wireless Access Point User Guide
59
4.7.5 Antenna Alignment
Selecting Wireless > Antenna Alignment will shows how remote AP's signal strength changes
while changing the antenna's direction.

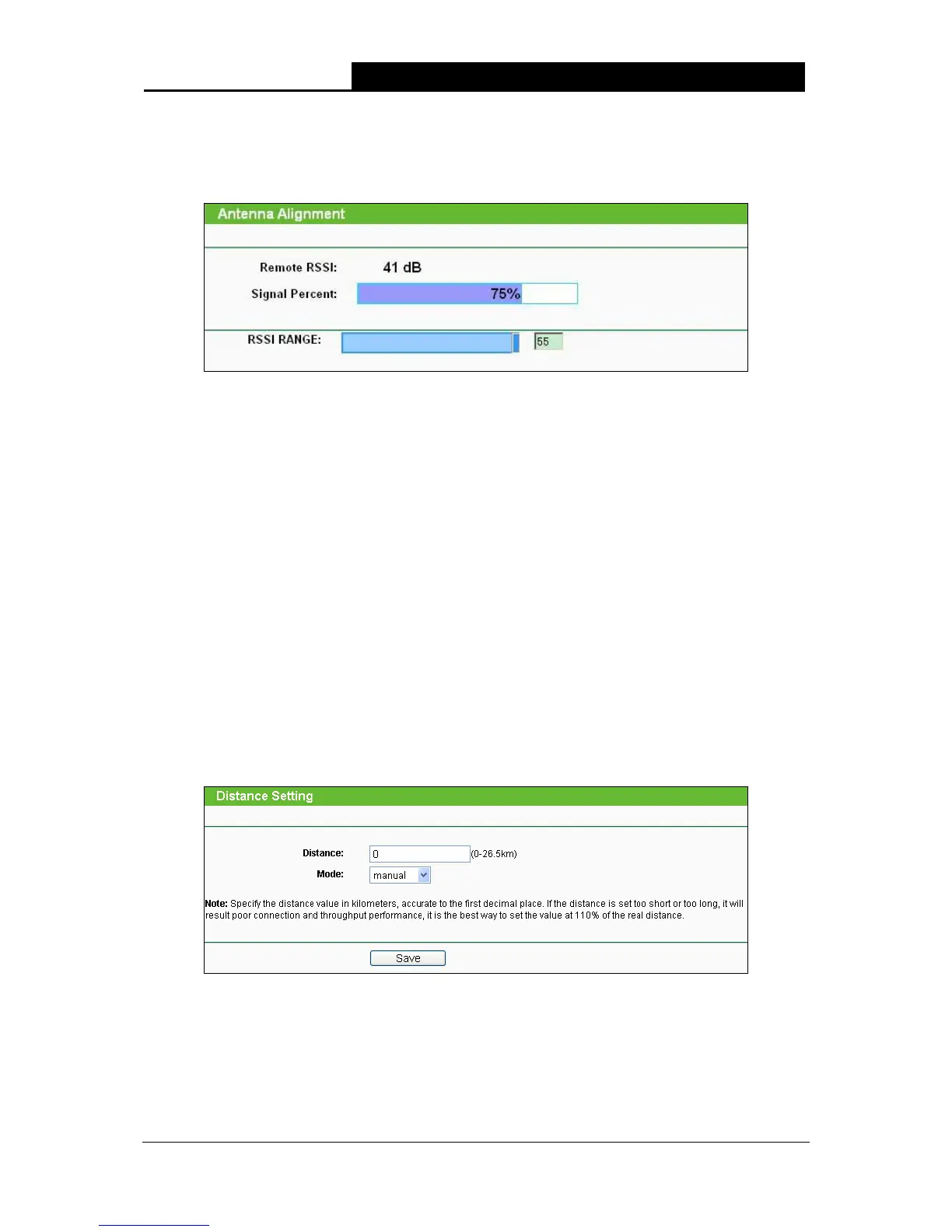

Figure 4-26 Antenna Alignment
¾ Remote AP RSSI- Remote AP's signal strength value.
¾ Signal percent- The ratio of RSSI to RSSI RANGE in percentage.
¾ RSSI RANGE- You can drag the Slider to set or input the RSSI RANGE value.
)
Note:
It only works after you have established connection to remote AP in client mode.
4.7.6 Distance Settings
Selecting Wireless > Distance Settings will adjust the wireless range in outdoor conditions. This
is a critical feature required for stabilizing outdoor links.
Enter the distance of your wireless link and the software will optimize the frame ACK timeout value
automatically.
Figure 4-27 Distance Setting
)
Note:
One hundred-meter is the smallest unit of this setting.

TP-Link TL-WA7510N Specifications

General

Frequency band	5.745 - 5.825 GHz
Cabling technology	10/100BASE-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11n
Receiver sensitivity	802.11a 54M: -77dBm 48M: -79dBm 36M: -83dBm 24M: -86dBm 18M:-91dBm 12M:-92dBm 9M:-93dBm 6M:-94dBm 802.11n 150M: -73dBm 121.5M: -76dBm 108M: -77dBm 81M: -81dBm 54M:-84dBm 40.5M:-88dBm 27M:-91dBm 13.5M:-93dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Networking features	Fast Ethernet
Wireless technology	802.11a/n
Antenna gain level (max)	15 dBi
Internal	No
Certification	CE, FCC, RoHS
LED indicators	Yes
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	5 - 95 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	-40 - 70 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Windows 2000, XP, Vista, 7 MAC NetWare UNIX Linux

Weight and Dimensions

Dimensions (WxDxH)	250 x 85 x 60.5 mm
