TP-Link TL-WA7510N User Manual

TL-WA7510N 5GHz 150Mbps Outdoor Wireless Access Point User Guide
103
5.7.2 Wireless Security
Choose menu “Wireless > Wireless Security”, and then you can configure the security settings
of your wireless network.
There are three wireless security modes supported by the Device: WEP (Wired Equivalent
Privacy), WPA/WPA2 (Wi-Fi Protected Access/ Wi-Fi Protected Access 2), and
WPA-PSK/WPA2-PSK (Pre-Shared Key).

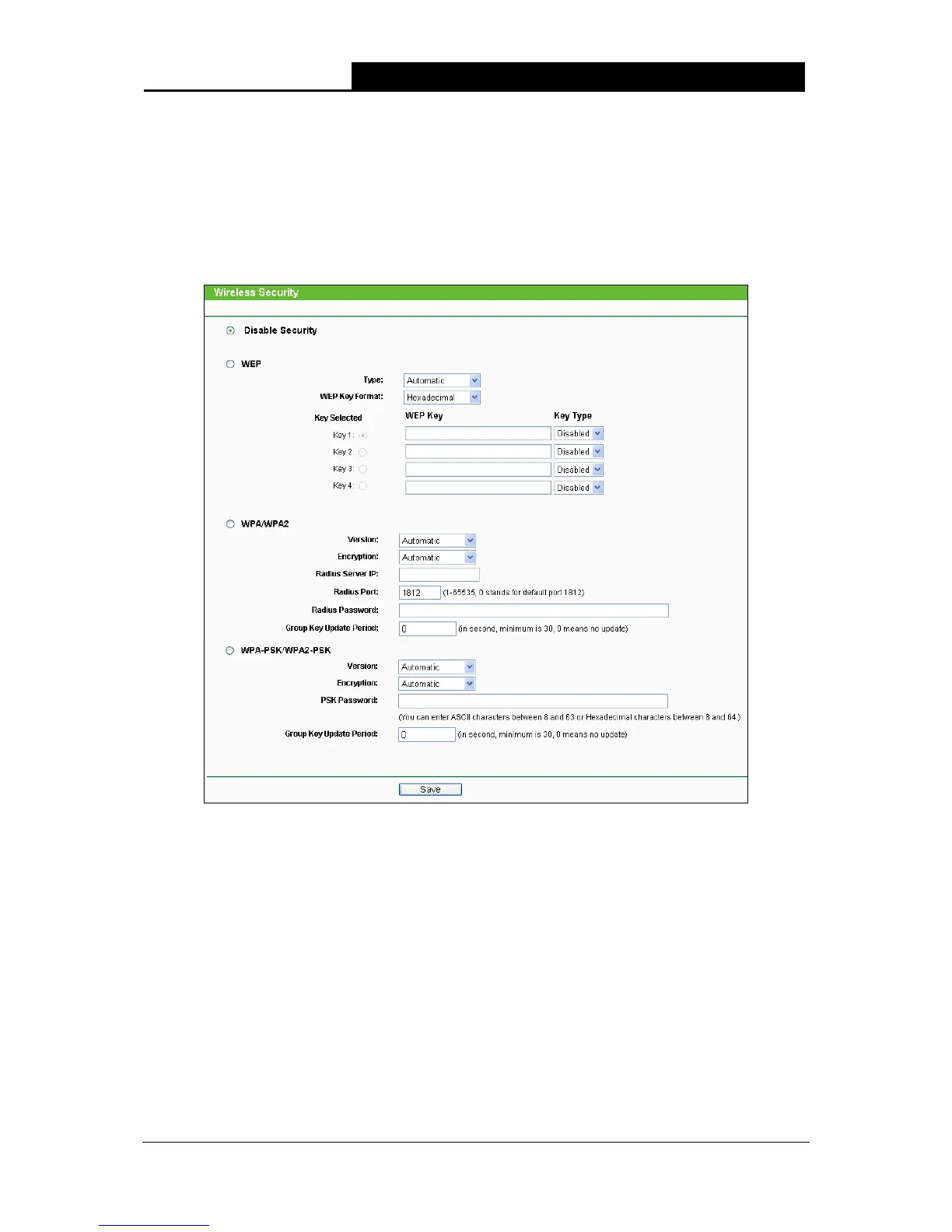

Figure 5-30 Wireless Security
) Note:
Only in Standard AP mode, the current operation mode is shown at the top. Besides, if Multi-SSID,
a sub mode of Standard AP, is selected, you can choose one of the 4 SSIDs from the pull-down
list.
You can select one of the following security options:
¾ Disable Security - The wireless security function can be enabled or disabled. If disabled, the
wireless stations will be able to connect the AP without encryption. It is recommended
strongly that you choose one of following options to enable security.

TP-Link TL-WA7510N Specifications

General

Frequency band	5.745 - 5.825 GHz
Cabling technology	10/100BASE-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11n
Receiver sensitivity	802.11a 54M: -77dBm 48M: -79dBm 36M: -83dBm 24M: -86dBm 18M:-91dBm 12M:-92dBm 9M:-93dBm 6M:-94dBm 802.11n 150M: -73dBm 121.5M: -76dBm 108M: -77dBm 81M: -81dBm 54M:-84dBm 40.5M:-88dBm 27M:-91dBm 13.5M:-93dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Networking features	Fast Ethernet
Wireless technology	802.11a/n
Antenna gain level (max)	15 dBi
Internal	No
Certification	CE, FCC, RoHS
LED indicators	Yes
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	5 - 95 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	-40 - 70 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Windows 2000, XP, Vista, 7 MAC NetWare UNIX Linux

Weight and Dimensions

Dimensions (WxDxH)	250 x 85 x 60.5 mm
