TL-WA7510N 5GHz 150Mbps Outdoor Wireless Access Point User Guide
27
3.2.2 AP Router Mode
When you choose AP Router Mode on Operation Mode page in Figure 3-10, take the following
steps:
1. Click Next in Figure 3-10, and then WAN Connection Type page will appear as shown in
Figure 3-19.

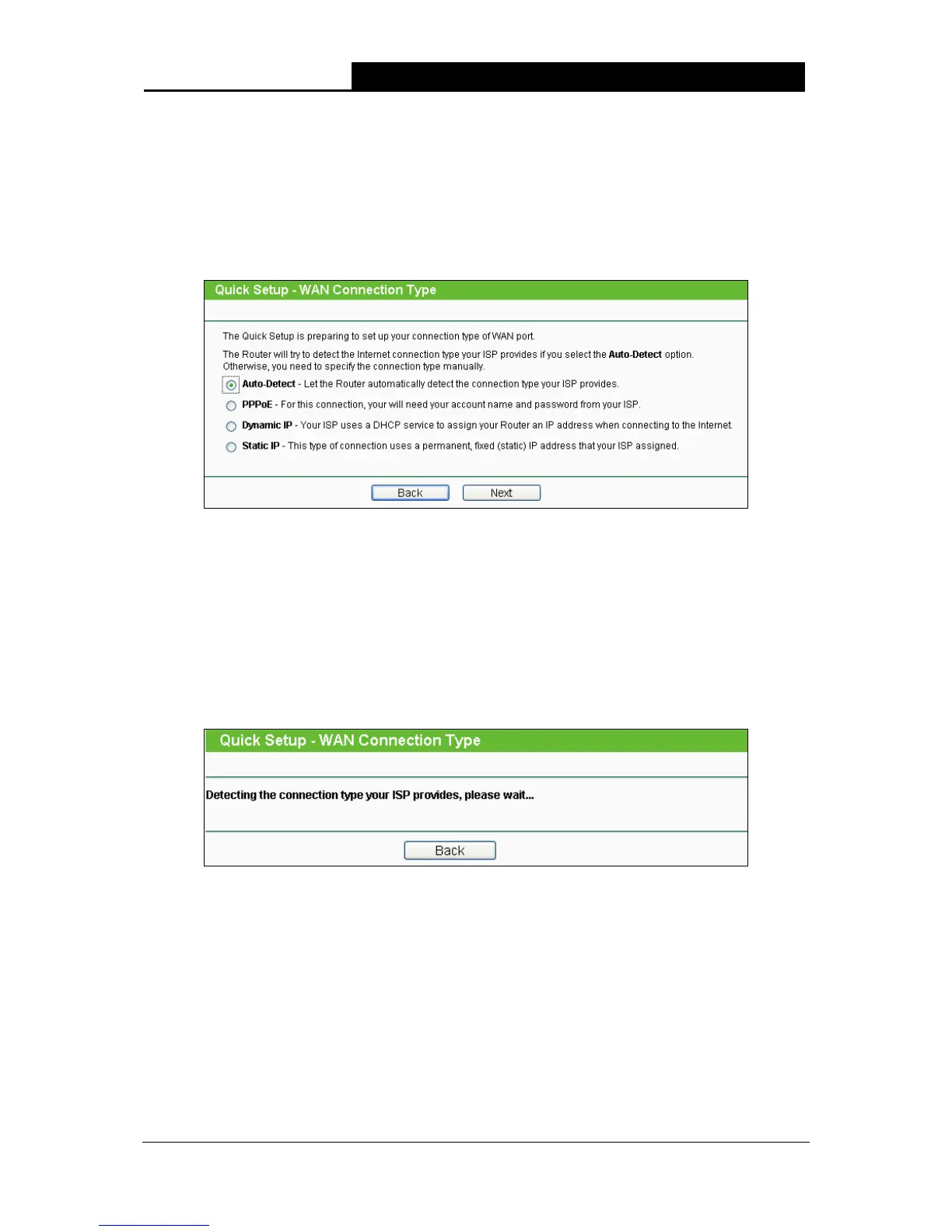

Figure 3-19
¾ Auto Detect - If you don't know the connection type your ISP provides, use this option to
allow the Quick Setup to search your Internet connection for servers as well as protocols, and
to determine your ISP configuration. Make sure the cable is securely plugged into the WAN
port before detection. The appropriate configuration page will be displayed when an active
Internet service is successfully detected by the Device.
If you choose Auto Detect in Figure 3-19 and then click Next, Figure 3-20 will appear.
Figure 3-20
¾ PPPoE - If you have applied ADSL to realize Dial-up service, you should choose this type. In
this condition, you should fill in both the User Name and Password that your ISP provides.
1) If you choose PPPoE in Figure 3-19 and then click Next, Figure 3-21 will appear.
