TP-Link TL-WA7510N User Manual

TL-WA7510N 5GHz 150Mbps Outdoor Wireless Access Point User Guide
86
5.6.1 LAN
Choose menu “Network > LAN”, and then you can configure the IP parameters of the LAN on the
screen as below.

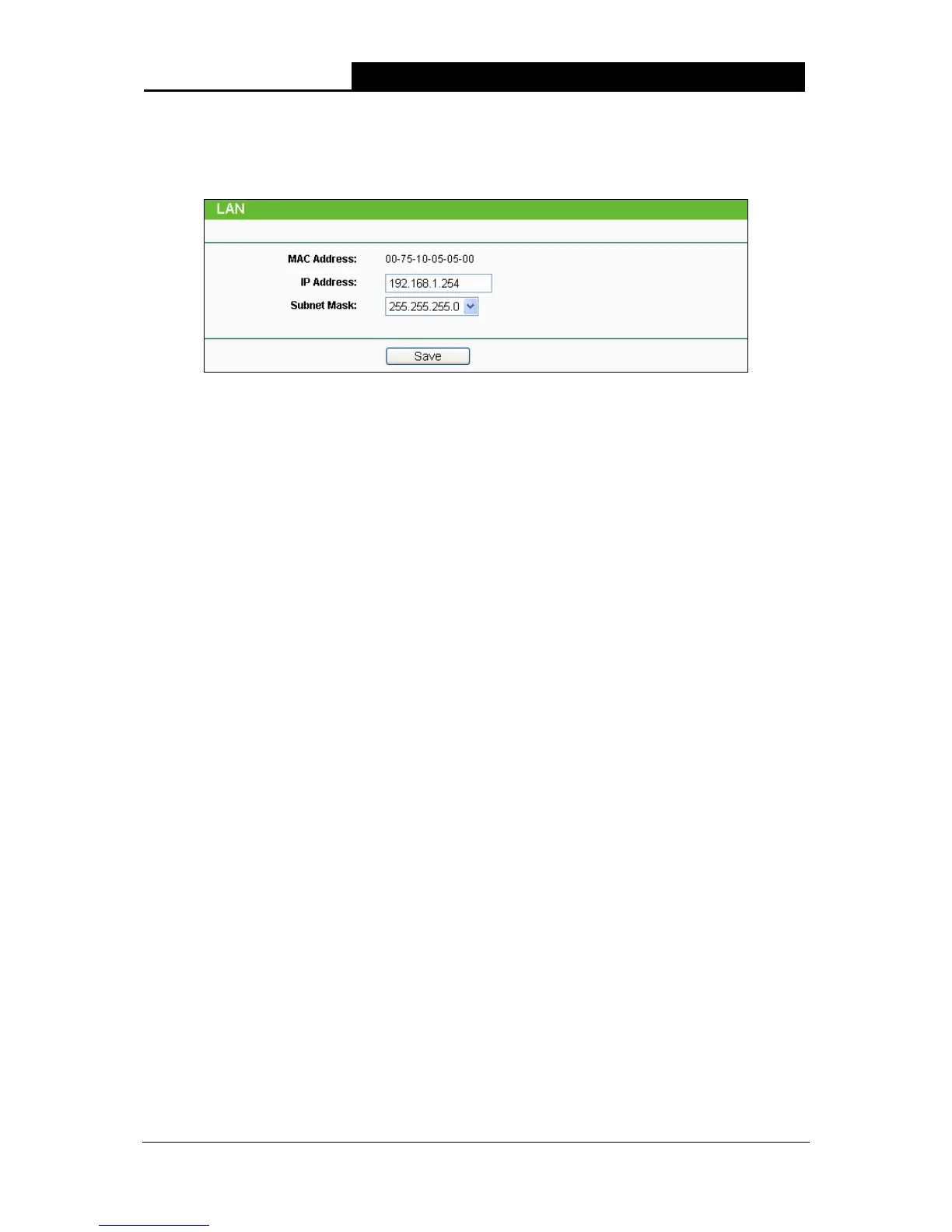

Figure 5-15 LAN
¾ MAC Address - The physical address of the LAN ports, as seen from the LAN. The value can
not be changed.
¾ IP Address - Enter the IP address of your Device in dotted-decimal notation (factory default
192.168.1.254).
¾ Subnet Mask - An address code that determines the size of the network. Usually it is
255.255.255.0.
)
Note:
1. If you change the LAN IP address, you must use the new IP address to login to the Device.
2. If the new LAN IP address you set is not in the same subnet with the previous one, the IP
Address pool in the DHCP server will be configured automatically, but the Virtual Server and
DMZ Host will not take effect until they are re-configured.
5.6.2 WAN
Choose menu “Network > WAN”, and then you can configure the IP parameters of the WAN on
the screen below.
)
Note:
There are five WAN connection types in AP Client Router mode: Dynamic IP, Static IP, PPPoE,
L2TP, and PPTP; while there is one more type in AP Router mode, BigPond Cable.
1. If your ISP is running a DHCP server, select the Dynamic IP option. Then the Device will
automatically get IP parameters from your ISP. You can see the page as follow (Figure 5-16).

TP-Link TL-WA7510N Specifications

General

Frequency band	5.745 - 5.825 GHz
Cabling technology	10/100BASE-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11n
Receiver sensitivity	802.11a 54M: -77dBm 48M: -79dBm 36M: -83dBm 24M: -86dBm 18M:-91dBm 12M:-92dBm 9M:-93dBm 6M:-94dBm 802.11n 150M: -73dBm 121.5M: -76dBm 108M: -77dBm 81M: -81dBm 54M:-84dBm 40.5M:-88dBm 27M:-91dBm 13.5M:-93dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Networking features	Fast Ethernet
Wireless technology	802.11a/n
Antenna gain level (max)	15 dBi
Internal	No
Certification	CE, FCC, RoHS
LED indicators	Yes
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	5 - 95 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	-40 - 70 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Windows 2000, XP, Vista, 7 MAC NetWare UNIX Linux

Weight and Dimensions

Dimensions (WxDxH)	250 x 85 x 60.5 mm
