TL-WA7510N 5GHz 150Mbps Outdoor Wireless Access Point User Guide
41

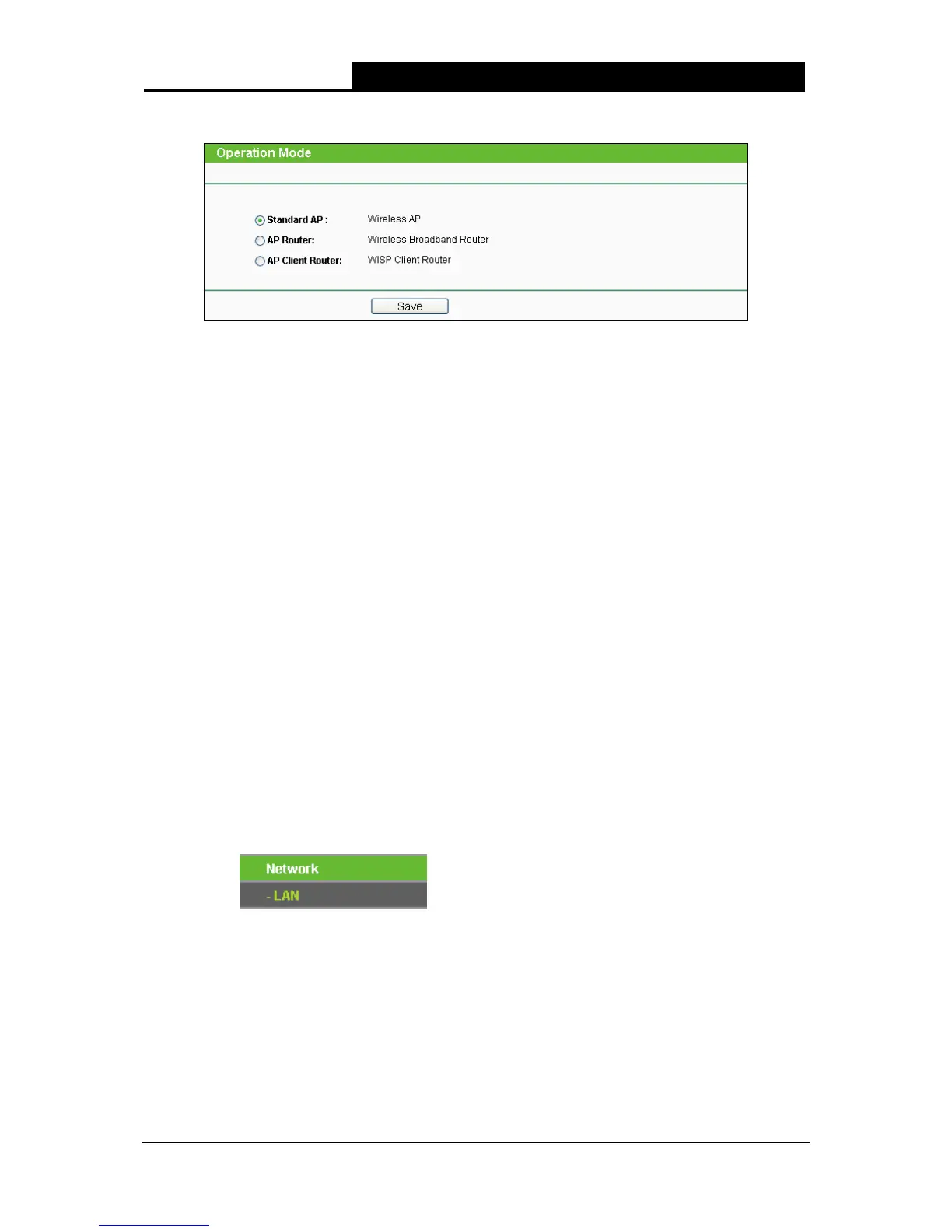

4.5 Operation Mode
Figure 4-13
¾ Standard AP: In this mode, the device enables multi-users to access, and provides several
wireless modes, such as AP, Client, Repeater and so on.
¾ AP Router: In this mode, the device enables multi-users to share Internet via ADSL/Cable
Modem. The wireless port share the same IP to ISP through Ethernet WAN port. The
Wireless port acts the same as a LAN port while at AP Router mode.
¾ AP Client Router: In this mode, the device enables multi-users to share Internet from WISP.
The LAN port devices share the same IP from WISP through Wireless port. While connecting
to WISP, the Wireless port works as a WAN port at AP Client Router mode. The Ethernet port
acts as a LAN port.
Be sure to click the Save button to save your settings on this page.
)
Note:
The Device will reboot automatically after you click the Save button.
4.6 Network
The Network option allows you to customize your local network manually by changing the default
settings of the AP.
Figure 4-14 The Network menu
Selecting Network > LAN will enable you to configure the IP parameters of LAN on the following
page.
