TL-WA7510N 5GHz 150Mbps Outdoor Wireless Access Point User Guide
16

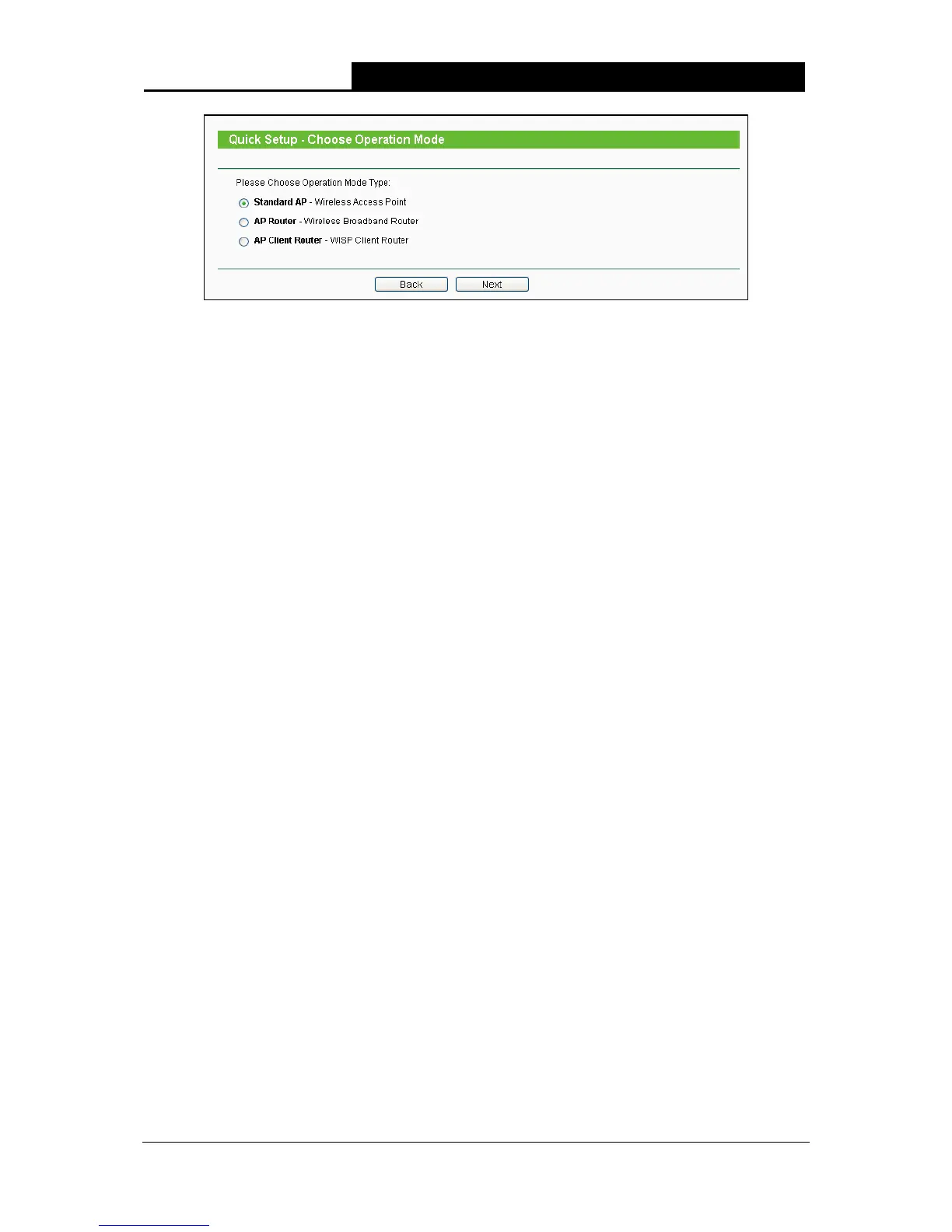

Figure 3-10 Choose Operation Mode
¾ Standard AP: In this mode, the device enables multi-users to access, and provides several
wireless modes. such as AP, Client, Repeater and so on
¾ AP Router: In this mode, the device enables multi-users to share Internet via ADSL/Cable
Modem. The wireless port share the same IP to ISP through Ethernet WAN port. The
Wireless port acts the same as a LAN port while in AP Router mode.
¾ AP Client Router: In this mode, the device enables multi-users to share Internet from WISP.
The LAN port devices share the same IP from WISP through Wireless port. While connecting
to WISP, the Wireless port works as a WAN port in AP Client Router mode. The Ethernet port
acts as a LAN port.
3.2.1 Standard AP Mode
When you choose Standard AP Mode on Operation Mode page in Figure 3-10, take the
following steps:
1. Click Next in Figure 3-10, and then Wireless page will appear as shown in Figure 3-11.
