TP-Link TL-WA7510N User Manual

TL-WA7510N 5GHz 150Mbps Outdoor Wireless Access Point User Guide
9

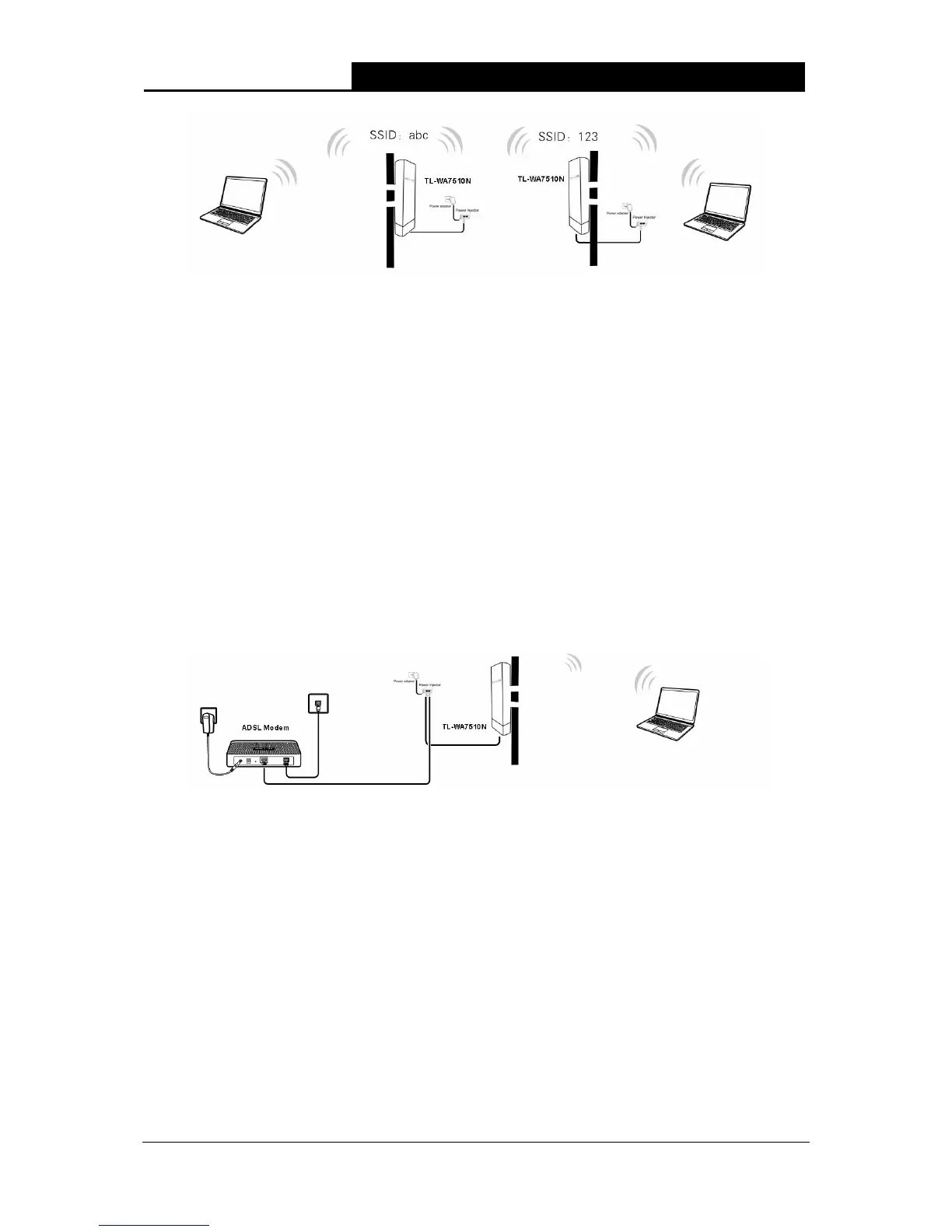

Figure 2-5 Hardware Installation of the TL-WA7510N in Standard AP -- Bridge mode
1. Connect the LAN port of TL-WA7510N to the POE port of the Power Injector with an Ethernet
cable.
2. Plug one end of the Power Adapter into the DC jack on the Power Injector, and the other end
in electrical wall socket.
3. Power on the PC(s).
)
Note:
It is recommended that you connect a PC/notebook to the LAN port of the Device with an Ethernet
cable, and then login the Device from the PC/notebook to set the Device in Bridge with AP mode.
2.3.2 AP Router Mode
Figure 2-6 Hardware Installation of the TL-WA7510N in AP Router mode
1. Connect the et
t the DSL/Cable Modem to the LAN port of the Power Injector with an Ethernet cable.
other connected devices (such as the ADSL modem).
e, the LAN port of the Power Injector (connected to the LAN port of the Device) works
LAN port of TL-WA7510N to the POE port of the Power Injector with an Ethern
cable.
2. Connec
3. Plug one end of the Power Adapter into the DC jack on the Power Injector, and the other end
in electrical wall socket.
4. Power on the PC(s) and
)
Note:
In this mod
as the WAN port.

TP-Link TL-WA7510N Specifications

General

Frequency band	5.745 - 5.825 GHz
Cabling technology	10/100BASE-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11n
Receiver sensitivity	802.11a 54M: -77dBm 48M: -79dBm 36M: -83dBm 24M: -86dBm 18M:-91dBm 12M:-92dBm 9M:-93dBm 6M:-94dBm 802.11n 150M: -73dBm 121.5M: -76dBm 108M: -77dBm 81M: -81dBm 54M:-84dBm 40.5M:-88dBm 27M:-91dBm 13.5M:-93dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Networking features	Fast Ethernet
Wireless technology	802.11a/n
Antenna gain level (max)	15 dBi
Internal	No
Certification	CE, FCC, RoHS
LED indicators	Yes
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	5 - 95 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	-40 - 70 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Windows 2000, XP, Vista, 7 MAC NetWare UNIX Linux

Weight and Dimensions

Dimensions (WxDxH)	250 x 85 x 60.5 mm
