TL-WA7510N 5GHz 150Mbps Outdoor Wireless Access Point User Guide
130
5.12 Access Control

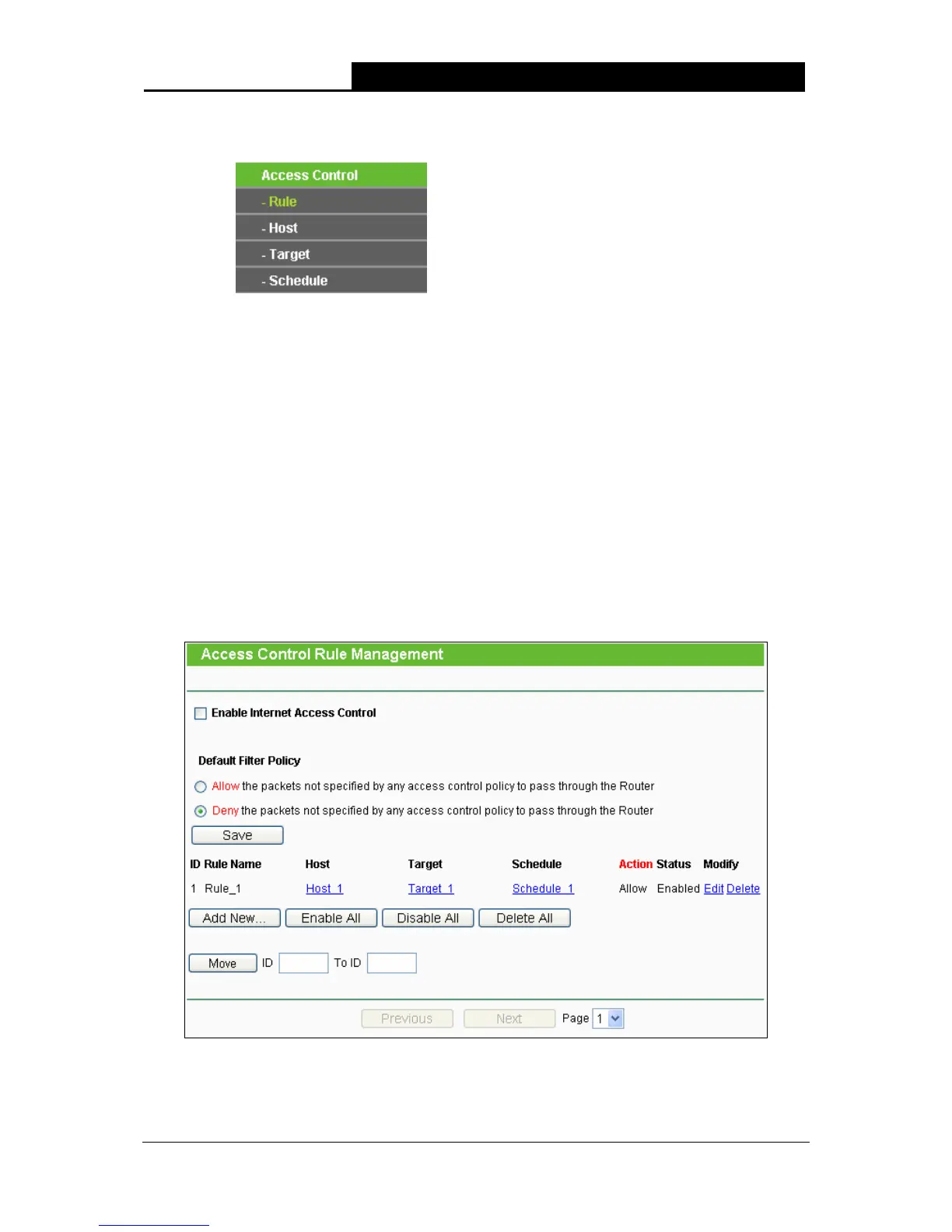

Figure 5-58 Access Control
There are four submenus under the Access Control menu as shown in Figure 5-58: Rule, Host,
Target and Schedule. Click any of them, and you will be able to configure the corresponding
function.
The Device, providing convenient and strong Internet access control function, can control the
Internet activities of hosts in the LAN. Moreover, you can flexibly combine the Host List, Target
List and Schedule to restrict the Internet surfing of these hosts.
5.12.1 Rule
Choose menu “Access Control > Rule”, and then you can view and set Access Control rules in
the screen as shown in Figure 5-59.
Figure 5-59 Access Control Rule Management
