TL-WA7510N 5GHz 150Mbps Outdoor Wireless Access Point User Guide
122
5.9.4 UPnP
Choose menu “Forwarding > UPnP”, and then you can view the information about UPnP
(Universal Plug and Play) in the screen as shown in Figure 5-50.
The UPnP feature allows the devices, such as Internet computers, to access the local host
resources or devices as needed. UPnP devices can be automatically discovered by the UPnP
service application on the LAN.

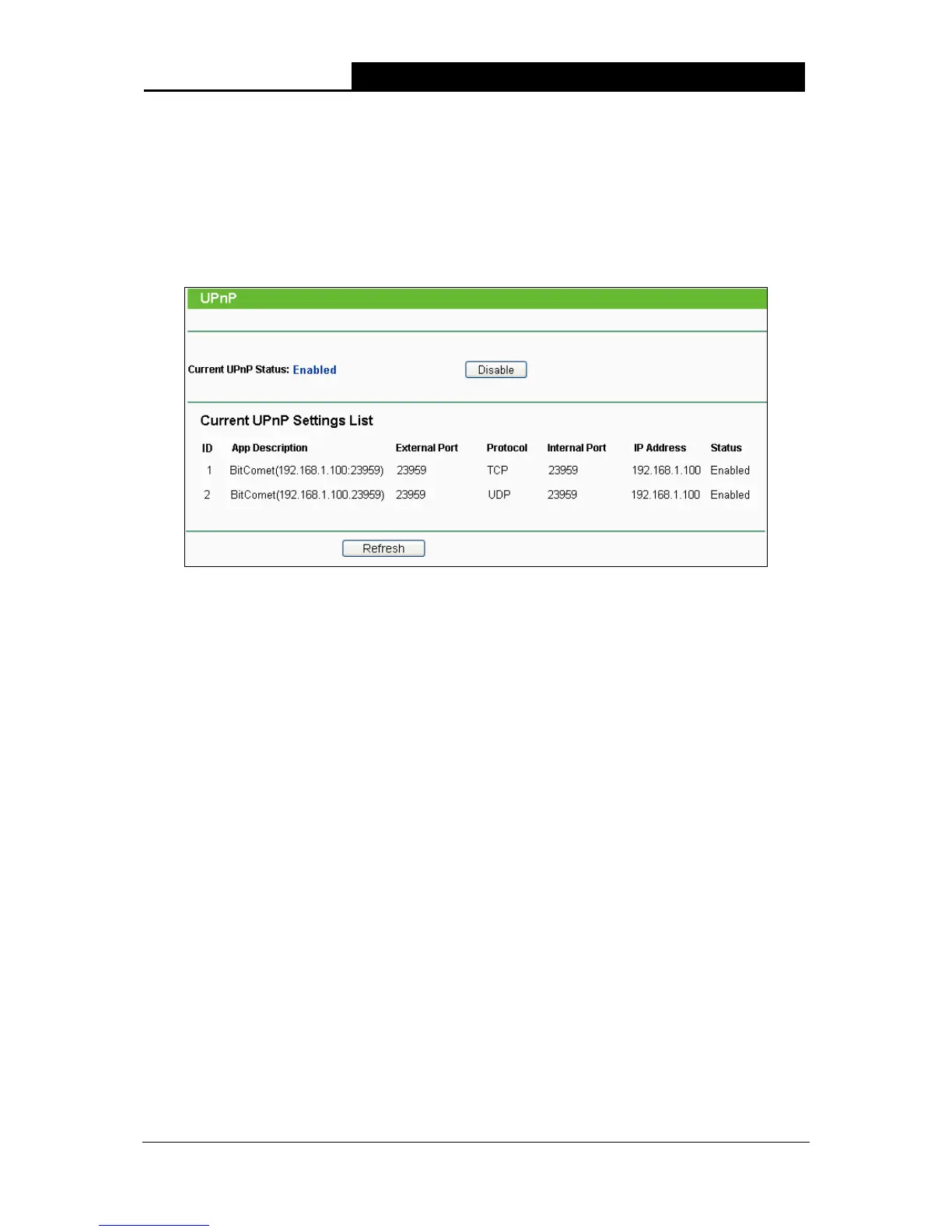

Figure 5-50 UPnP
¾ Enable UPnP - UPnP can be enabled or disabled by clicking the Enable or Disable button.
This feature is enabled by default.
¾ Current UPnP Settings List - Displays the current UPnP information.
z App Description - Description about the application which initiates the UPnP request.
z External Port - Port that the Device opened for the application.
z Protocol - Type of protocol that is opened.
z Internal Port - Port that the Device opened for local host.
z IP Address - IP address of the local host which initiates the UPnP request.
z Status - Either Enabled or Disabled. "Enabled" means that port is still active; otherwise,
the port is inactive.
Click the Enable button to enable UPnP.
Click the Disable button to disable UPnP.
Click the Refresh button to update the Current UPnP Settings List.

TP-Link TL-WA7510N Specifications

General

Frequency band	5.745 - 5.825 GHz
Cabling technology	10/100BASE-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11n
Receiver sensitivity	802.11a 54M: -77dBm 48M: -79dBm 36M: -83dBm 24M: -86dBm 18M:-91dBm 12M:-92dBm 9M:-93dBm 6M:-94dBm 802.11n 150M: -73dBm 121.5M: -76dBm 108M: -77dBm 81M: -81dBm 54M:-84dBm 40.5M:-88dBm 27M:-91dBm 13.5M:-93dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Networking features	Fast Ethernet
Wireless technology	802.11a/n
Antenna gain level (max)	15 dBi
Internal	No
Certification	CE, FCC, RoHS
LED indicators	Yes
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	5 - 95 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	-40 - 70 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Windows 2000, XP, Vista, 7 MAC NetWare UNIX Linux

Weight and Dimensions

Dimensions (WxDxH)	250 x 85 x 60.5 mm
