TL-WA7510N 5GHz 150Mbps Outdoor Wireless Access Point User Guide
72
4.9.7 Backup & Restore
Selecting System Tools > Backup & Restore allows you to save all configuration settings to your
local computer as a file or restore the device's configuration on the screen shown in Figure 4-42.

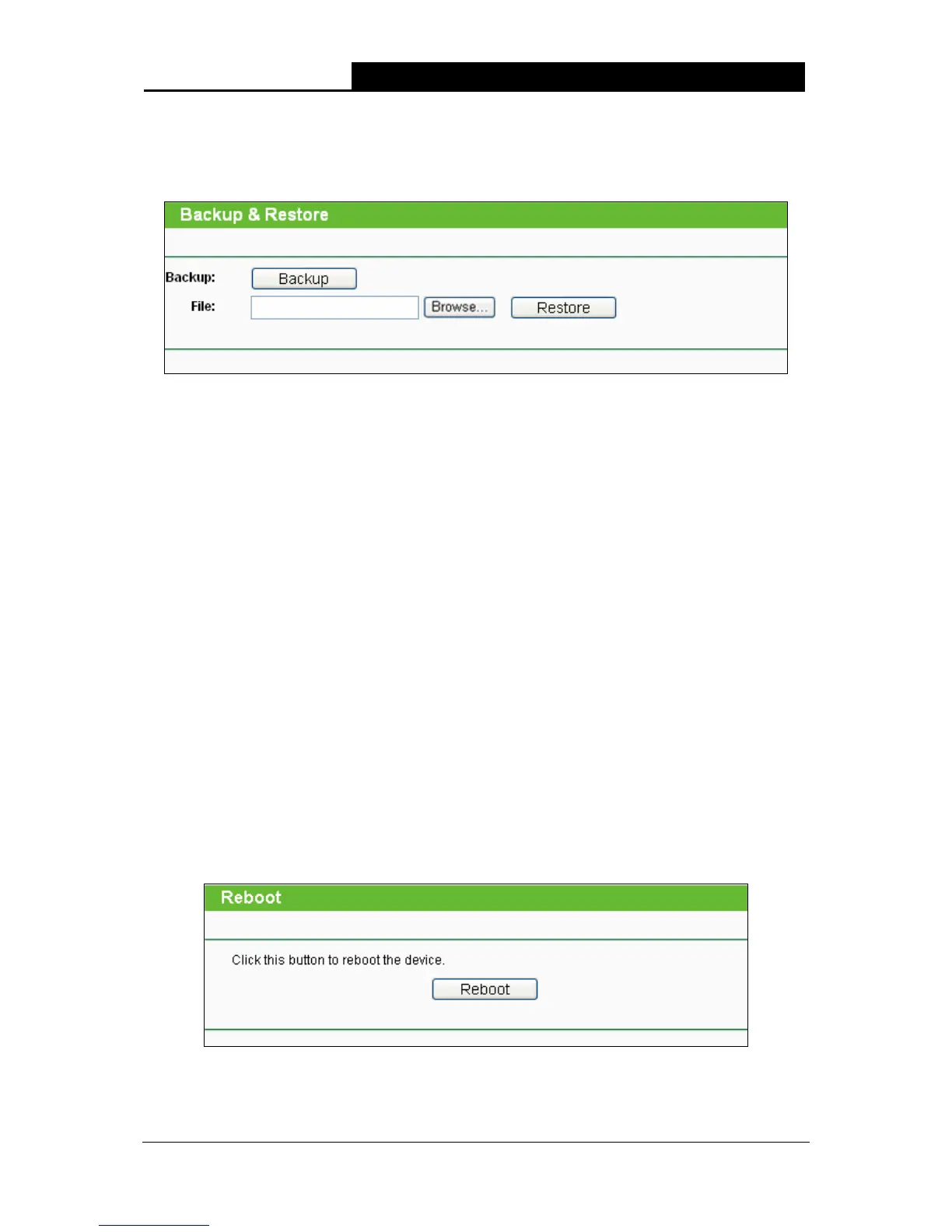

Figure 4-42 Save or Restore the Configuration
Click Backup to save all configuration settings to your local computer as a file.
¾ To restore the device's configuration, follow these instructions:
1. Click Browse… to find the configuration file which you want to restore.
2. Click Restore to update the configuration with the file whose path is the one you have
input or selected in the blank.
)
Note:
The current configuration will be covered with the uploading configuration file. Wrong process will
lead the device unmanaged.
The restoring process lasts for 20 seconds and the AP will restart automatically then.
Keep the power of the AP on during the process, in case of any damage.
4.9.8 Reboot
Selecting System Tools > Reboot allows you to reboot the device on the screen as shown in
Figure 4-43.
Figure 4-43 Reboot the device

TP-Link TL-WA7510N Specifications

General

Frequency band	5.745 - 5.825 GHz
Cabling technology	10/100BASE-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11n
Receiver sensitivity	802.11a 54M: -77dBm 48M: -79dBm 36M: -83dBm 24M: -86dBm 18M:-91dBm 12M:-92dBm 9M:-93dBm 6M:-94dBm 802.11n 150M: -73dBm 121.5M: -76dBm 108M: -77dBm 81M: -81dBm 54M:-84dBm 40.5M:-88dBm 27M:-91dBm 13.5M:-93dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Networking features	Fast Ethernet
Wireless technology	802.11a/n
Antenna gain level (max)	15 dBi
Internal	No
Certification	CE, FCC, RoHS
LED indicators	Yes
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	5 - 95 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	-40 - 70 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Windows 2000, XP, Vista, 7 MAC NetWare UNIX Linux

Weight and Dimensions

Dimensions (WxDxH)	250 x 85 x 60.5 mm
