TL-WA7510N 5GHz 150Mbps Outdoor Wireless Access Point User Guide
62

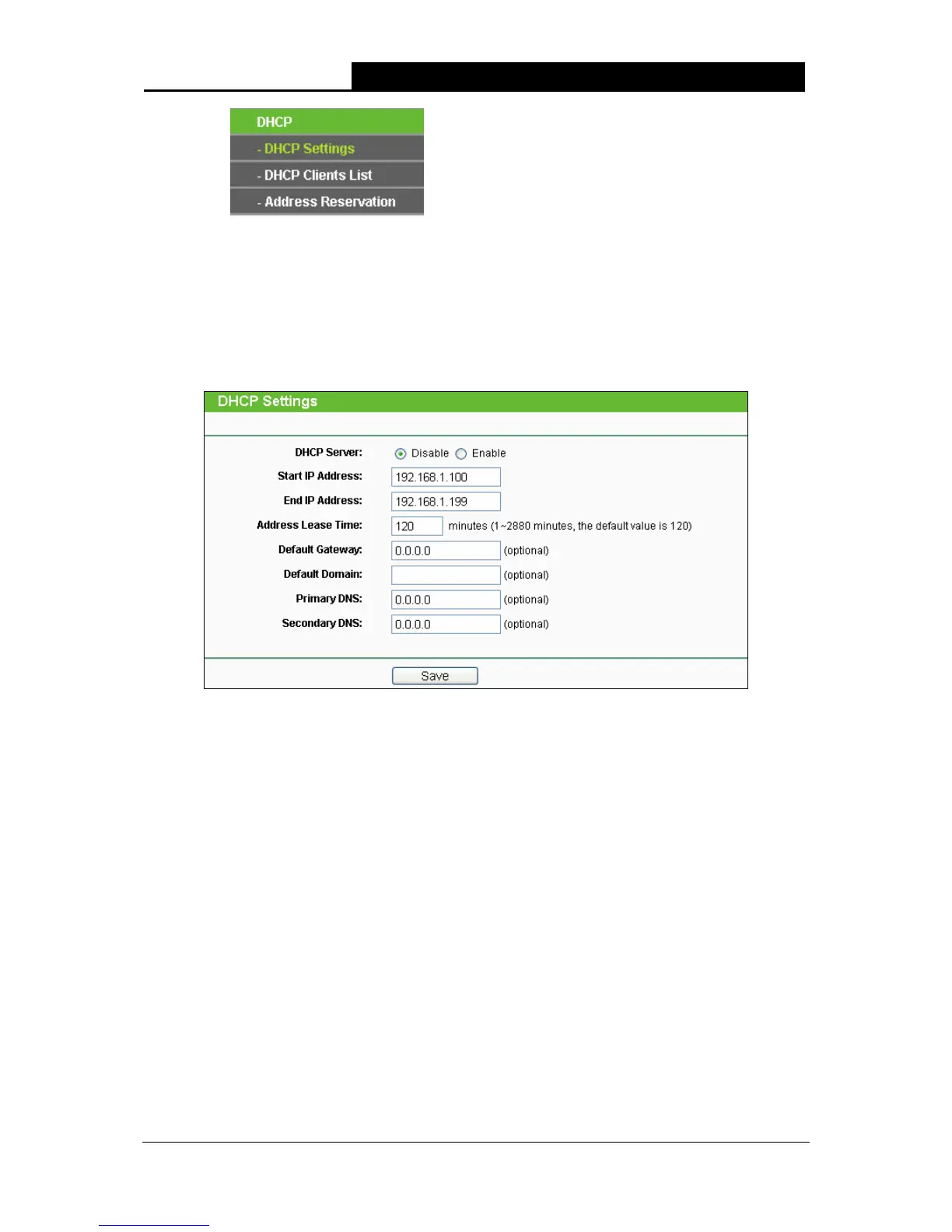

Figure 4-30 The DHCP menu
4.8.1 DHCP Settings
Selecting DHCP > DHCP Settings will enable you to set up the AP as a DHCP server, which
provides the TCP/IP configuration for all the PCs that are connected to the system on the LAN.
The DHCP Server is Disable by default, and can be configured on the page (shown as Figure 4-31):
Figure 4-31 DHCP Settings
¾ DHCP Server - Enable or Disable the server. If you disable the Server, you must have
another DHCP server within your network or else you must configure the IP address of the
computer manually.
¾ Start IP Address -This field specifies the first address in the IP Address pool. 192.168.1.100
is the default start IP address.
¾ End IP Address - This field specifies the last address in the IP Address pool. 192.168.1.199
is the default end IP address.
¾ Address Lease Time – It is the length of time a network user will be allowed to keep
connecting to the device with the current DHCP Address. Enter the amount of time (in
minutes), and then the DHCP address will be "leased". The time range is 1~2880 minutes.
The default value is 120 minutes.
¾ Default Gateway - (Optional) Input the IP Address of the gateway.
¾ Default Domain - (Optional) Input the domain name of your network.
¾ Primary DNS - (Optional) Input the DNS IP address provided by your ISP or consult your
ISP.

TP-Link TL-WA7510N Specifications

General

Frequency band	5.745 - 5.825 GHz
Cabling technology	10/100BASE-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11n
Receiver sensitivity	802.11a 54M: -77dBm 48M: -79dBm 36M: -83dBm 24M: -86dBm 18M:-91dBm 12M:-92dBm 9M:-93dBm 6M:-94dBm 802.11n 150M: -73dBm 121.5M: -76dBm 108M: -77dBm 81M: -81dBm 54M:-84dBm 40.5M:-88dBm 27M:-91dBm 13.5M:-93dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Networking features	Fast Ethernet
Wireless technology	802.11a/n
Antenna gain level (max)	15 dBi
Internal	No
Certification	CE, FCC, RoHS
LED indicators	Yes
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	5 - 95 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	-40 - 70 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Windows 2000, XP, Vista, 7 MAC NetWare UNIX Linux

Weight and Dimensions

Dimensions (WxDxH)	250 x 85 x 60.5 mm
