TP-Link TL-WA7510N User Manual

TL-WA7510N 5GHz 150Mbps Outdoor Wireless Access Point User Guide
113
5.8.1 DHCP Settings
Choose menu “DHCP > DHCP Settings”, and then you can configure the DHCP Server on the
page as shown in Figure 5-40. The Device is set up by default as a DHCP server.

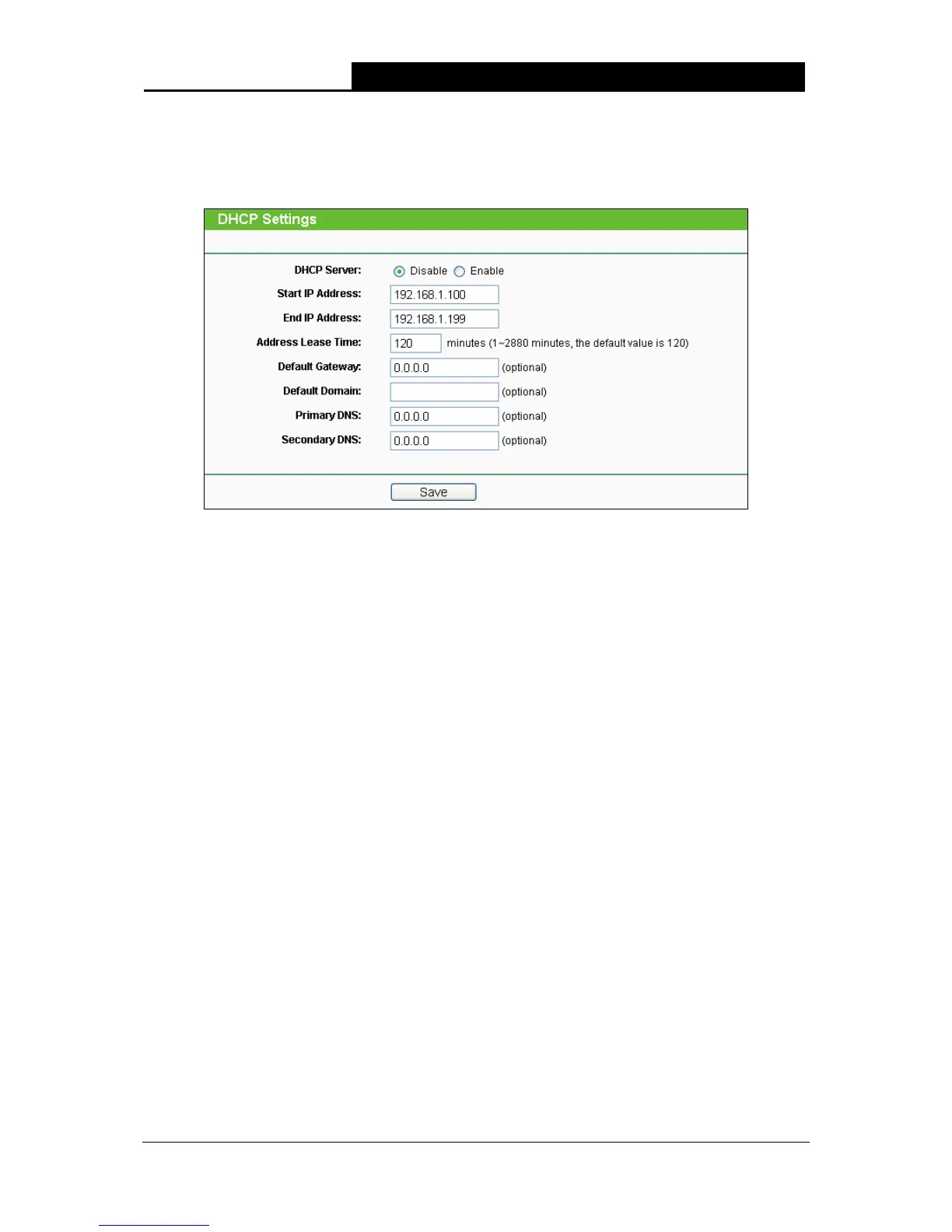

Figure 5-40 DHCP Settings
¾ DHCP Server - Enable or Disable the server. If you disable the Server, you must have
another DHCP server within your network, or else you must configure the IP address of the
computer manually.
¾ Start IP Address - This field specifies the first address in the IP Address pool. 192.168.1.100
is the default start IP address.
¾ End IP Address - This field specifies the last address in the IP Address pool. 192.168.1.199
is the default end IP address.
¾ Address Lease Time – It is the length of time a network user will be allowed to keep
connecting to the device with the current DHCP Address. Enter the amount of time, in minutes,
that the DHCP address will be "leased". The time range is 1~2880 minutes. The default value
is 120 minutes.
¾ Default Gateway - (Optional) Input the IP Address of the gateway.
¾ Default Domain - (Optional) Input the domain name of your network.
¾ Primary DNS - (Optional) Input the DNS IP address provided by your ISP.
¾ Secondary DNS - (Optional) You can input the IP Address of another DNS server if your ISP
provides two DNS servers.

TP-Link TL-WA7510N Specifications

General

Frequency band	5.745 - 5.825 GHz
Cabling technology	10/100BASE-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11n
Receiver sensitivity	802.11a 54M: -77dBm 48M: -79dBm 36M: -83dBm 24M: -86dBm 18M:-91dBm 12M:-92dBm 9M:-93dBm 6M:-94dBm 802.11n 150M: -73dBm 121.5M: -76dBm 108M: -77dBm 81M: -81dBm 54M:-84dBm 40.5M:-88dBm 27M:-91dBm 13.5M:-93dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Networking features	Fast Ethernet
Wireless technology	802.11a/n
Antenna gain level (max)	15 dBi
Internal	No
Certification	CE, FCC, RoHS
LED indicators	Yes
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	5 - 95 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	-40 - 70 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Windows 2000, XP, Vista, 7 MAC NetWare UNIX Linux

Weight and Dimensions

Dimensions (WxDxH)	250 x 85 x 60.5 mm
