CNT-SVN01C-EN 53
Chapter 8
Installing the circuit board
The main circuit board is not installed in the Tracer MP581 enclosure
when it ships. You can store the circuit board in the office while the enclo-
sure is mounted and wired. After wiring has been completed, connect the
circuit board to the termination board.
To install the circuit board:
1. Open the enclosure door.
2. Verify that the 24 Vac power cable is not connected to the termination
board (see Figure 35 on page 55).
3. Hold the top plastic frame, which holds the circuit board, at a 90°
angle to the bottom frame as shown in Figure 33.

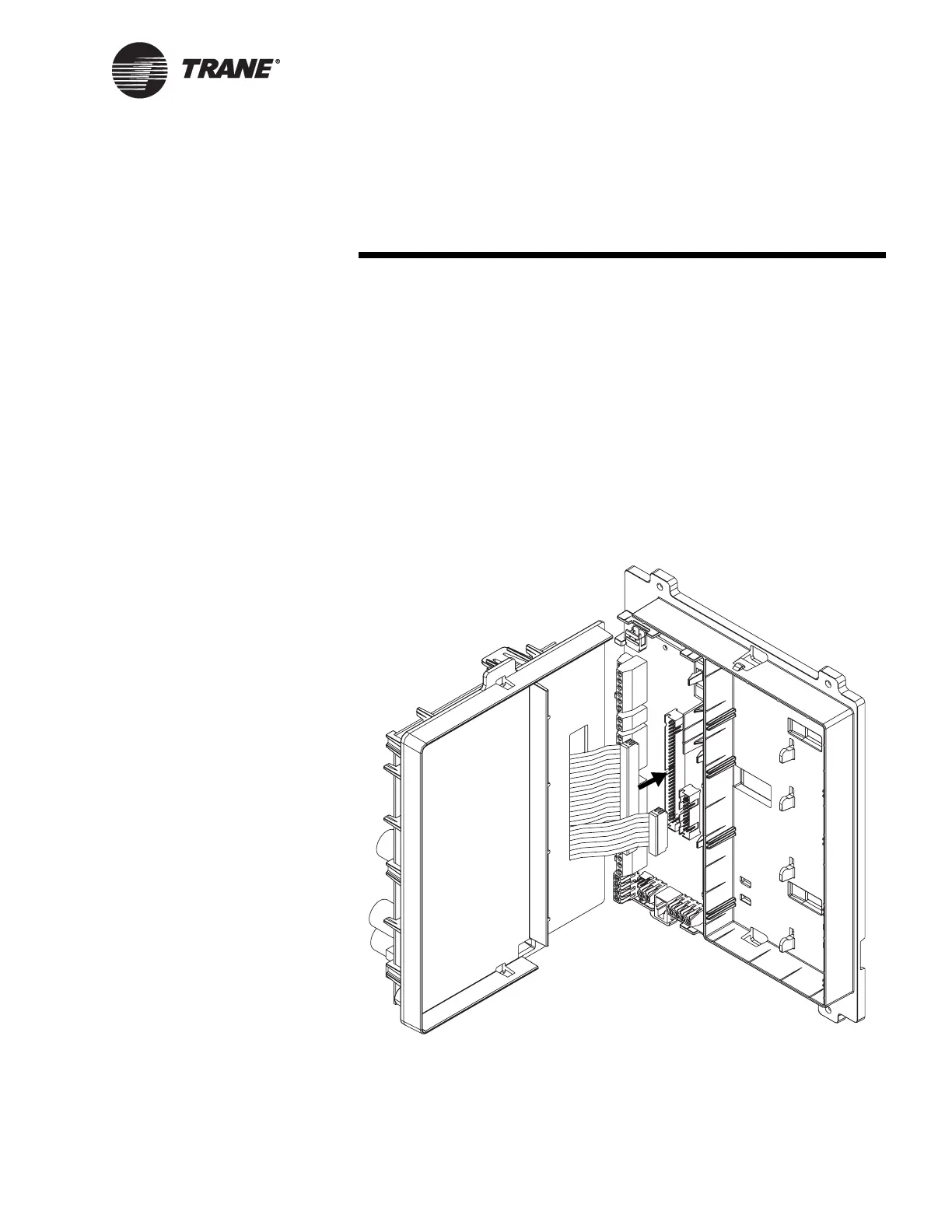

Figure 33. Connecting the cables
