Trane Tracer MP581 Hardware Installation

Mounting the metal-enclosure module
CNT-SVN01C-EN 71
Mounting the metal-enclosure module
To mount the enclosure:
1. Unscrew the two screws on the front of the enclosure and remove the
cover.
2. Using the enclosure as a template, mark the location of the four
mounting holes on the mounting surface (Figure 44).
3. Set the enclosure aside and drill holes for the screws at the marked
locations.
4. Drill holes for #10 (5 mm) screws or #10 wall anchors. Use wall
anchors if the mounting surface is dry wall or masonry.
5. Insert wall anchors if needed.
6. Secure the enclosure to the mounting surface with #10 (5 mm) screws
(not included).

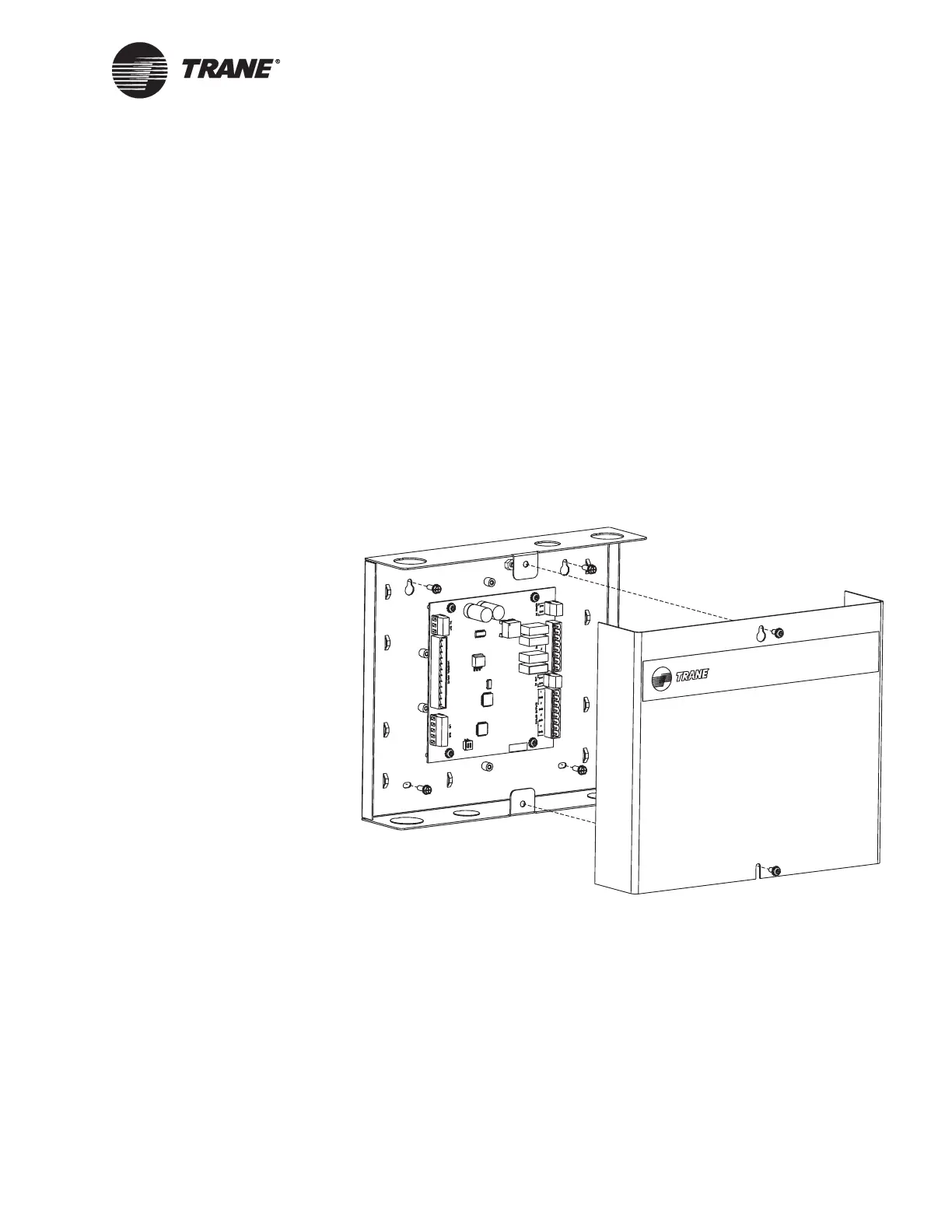

Figure 44. Mounting the metal-enclosure EX2
