CNT-SVN01C-EN 59
Chapter 10
Installing the stand-alone
operator display
With the attached cable, the stand-alone operator display can be mounted
up to 10 ft (3 m) from the Tracer MP581 controller. You can extend this
distance up to 150 ft (46 m) using four-conductor wire and the included
pig-tail connectors. See the installation sheet (3270 3338), which ships
with the operator display, for instructions.
The dimensions of the stand-alone operator display are shown in
Figure 37.

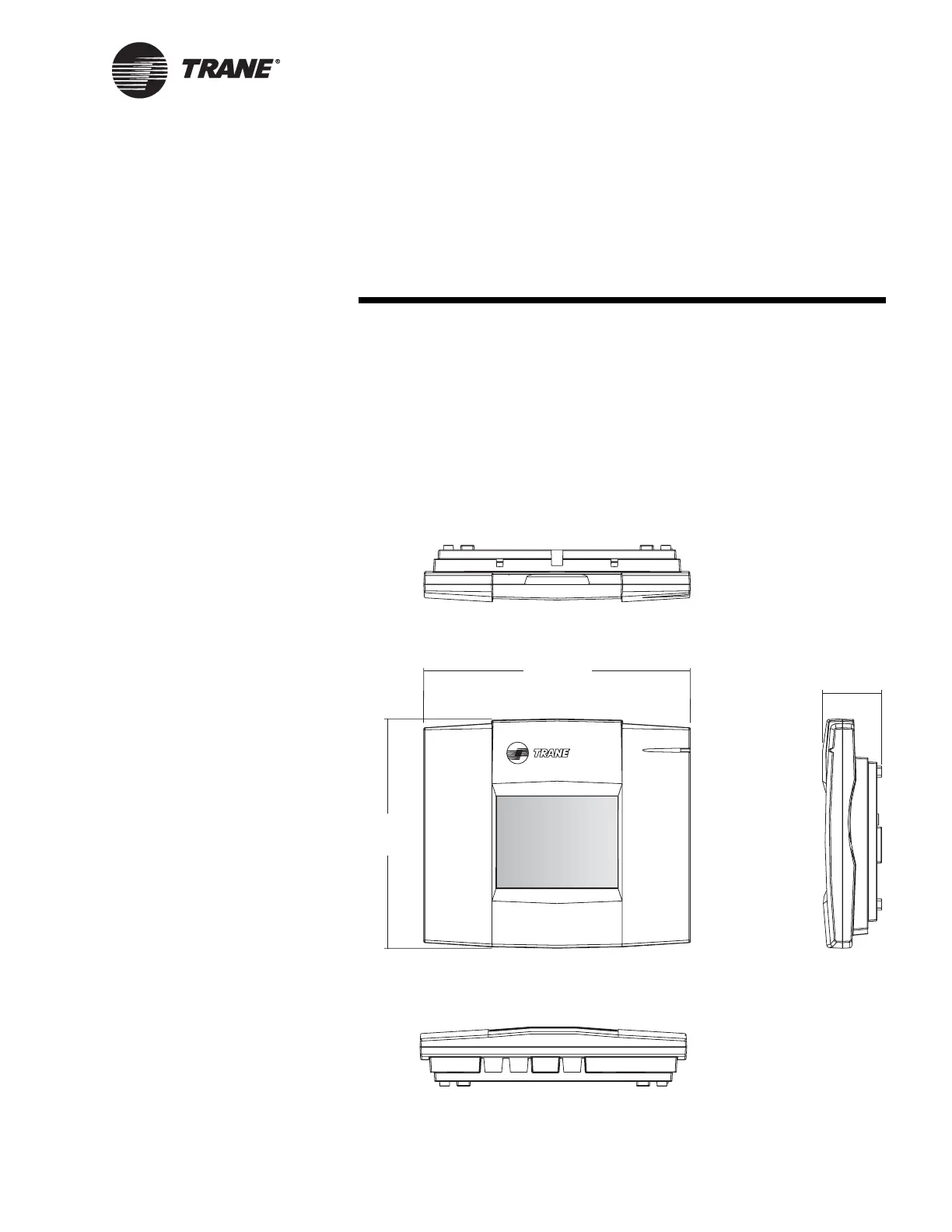

Figure 37. Stand-alone operator display dimensions
10.25 in
(260 mm)
2.25 in
(58 mm)
8.75 in.
(222 mm)
To p v i e w
Front view Side view
Bottom view
