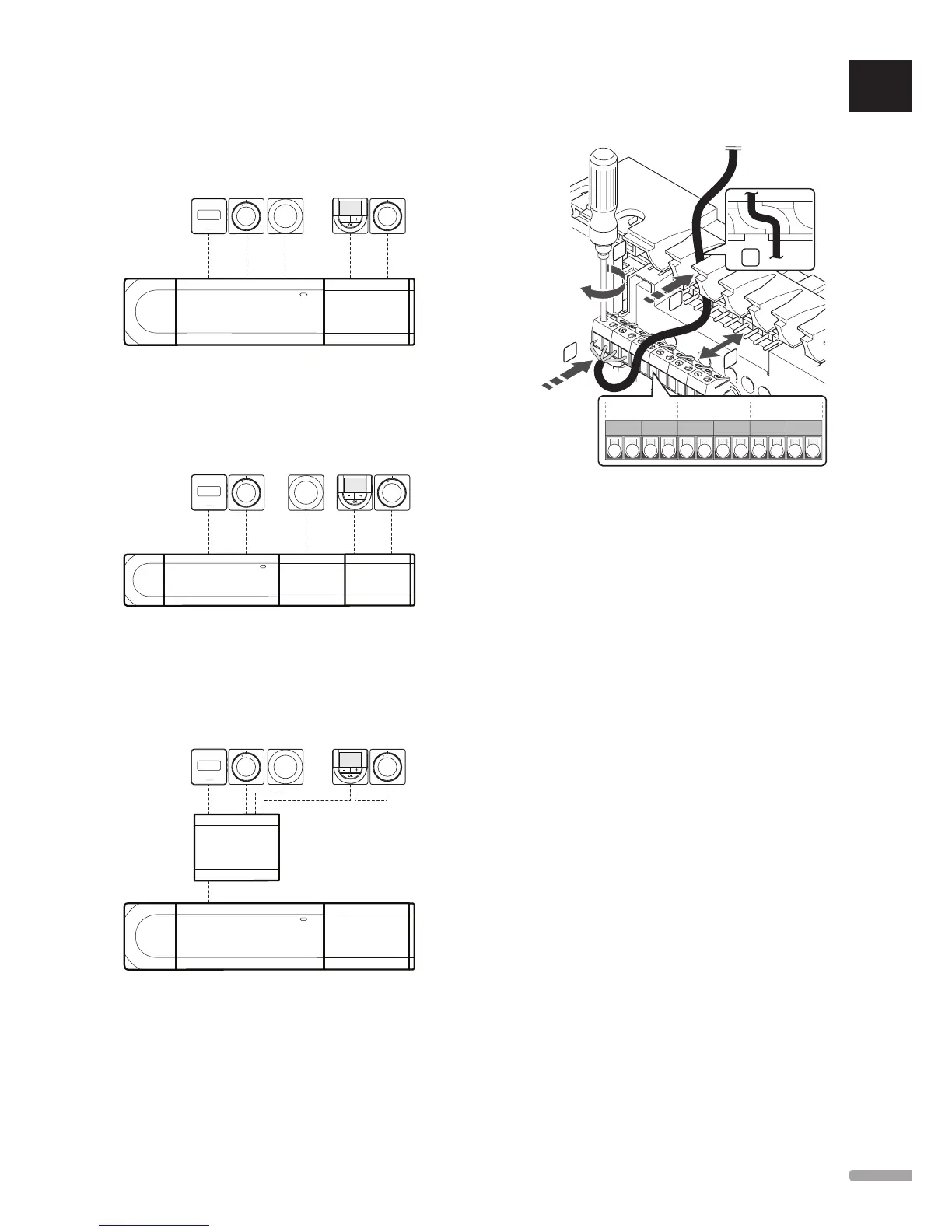

direCt ConneCt ion to Controller and slave
modul e
Every thermostat in the example is connected to the
controller and slave module (if available) with its own
cable.
Conne Ction to attaChed star m odule
The star module is attached to the controller and slave
module (if available) adding extra connection terminals
to the system. Each thermostat in the example is
connected direct to the controller, slave module (if
available) and star module.
Conne Ction to CaBle ConneCted star mod ule
The star module is connected to the controller and/
or slave module (if available) with a cable, using two
of the extra connection points. Each thermostat in the
example is connected direct to the star module, except
one that is connected with daisy chain.
Conne Ct Commun iCation CaBl e to Controller
and/o r slave module
3
1
1
2
3
+- +- +-BAB
AB
A
To connect a communication cable to the controller:
1. Lead the cables through cable entries on the top of
the controller frame.
2. Insert the four wires (A,B, + and -) into the
connector on the controller.
3. Tighten the screws fixing the wires in the connector.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
41
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL

Uponor Smatrix Base Specifications

General

Compatibility	Uponor Smatrix thermostats and actuators
Enclosure Rating	IP20
Communication Protocol	Proprietary Uponor Smatrix protocol
Operating Temperature	0°C to +45°C
Storage Temperature	-20°C to +60°C
Relative Humidity	20% to 80% non-condensing
